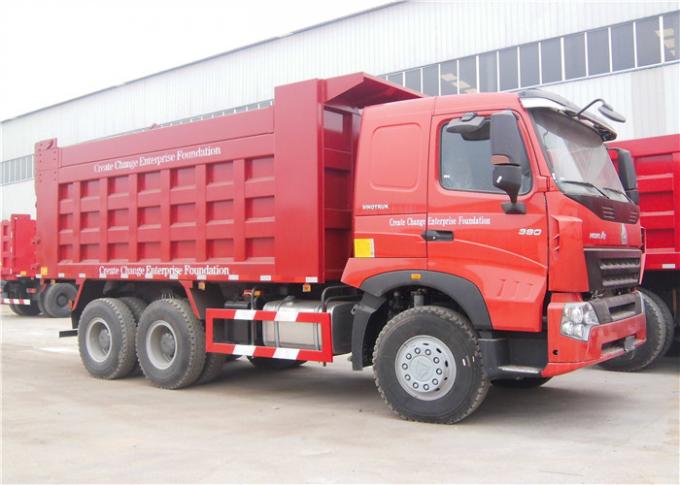

HOWO Tipper 6x4 Sinotruk Dump Truck 10 Wheeler 18M3 20M3 30 Ton Tipper Truck
HOWO Tipper 6x4 Sinotruk Dump Truck 10 Wheeler 18M3 20M3 30 Ton Tipper Truck
Properti Dasar
Sertifikat
CCC, ISO9001
Model Produk
CSCDUM
Properti Perdagangan
MOQ
1 unit
Patokan harga
Could be negotiated
sedang mengemas
Nake atau Wax sebelum pengiriman
jangka waktu pengiriman
35-40 hari setelah menerima setoran
Metode Pembayaran
L/C, T/T, Western Union, MoneyGram
Kapasitas Pasokan
1000 unit per bulan
Detail Produk
Menyoroti:
tipper semi trailer
,semi dump trailer
Cabin:
dengan atau Tanpa Sleeper Bed, Air Conditioner
Engine Horse Power:
290HP, 336HP, 371HP, 420HP.
Product Name:
30 ton truk tipper
Drive Type:
Drive Tangan Kanan, atau Drive Tangan Kiri
Drive Model:
4X2 6 Roda, 6X4 10 Roda, 8X4 12 Roda
Tipper Type:
Tipping Depan, atau Tipping Tengah, T-Type
Hydraulic System:
ChinTipper Bodyese Famous Brand, atau Hyva Brand
Tipper Body:
5600 * 2300 * 1500mm, sebagai Kebutuhan Pelanggan
Side&Bottom Thickness:
Baja Karbon 6mm, & 8mm
Other Brand:
Dongfeng, HOWO, Foton, Beiben, Shacman, FAW
Ringkasan produk
CNHTC Sino truk HOWO A7 10 wheeler 30t tipper truk 30 ton dump truck, tugas berat inotruck HOWO A7 6x4 371hp dumper truk 40 ton tipper truk 30T dump truck, 10 Roda HOWO 6x4 A7 Dumper Truck 18M3 20M3 30 Ton Tipper Truck U-Shape Dump Truck Fitur Produk: 1, Hemat Minyak, Keselamatan, Kenyamanan ...
Deskripsi Produk
CNHTC Sino truk HOWO A7 10 wheeler 30t tipper truk 30 ton dump truck, tugas berat inotruck HOWO A7 6x4 371hp dumper truk 40 ton tipper truk 30T dump truck, 10 Roda HOWO 6x4 A7 Dumper Truck 18M3 20M3 30 Ton Tipper Truck U-Shape Dump Truck
Fitur Produk:
1, Hemat Minyak, Keselamatan, Kenyamanan mengemudi, Keandalan , Biaya aplikasi rendah
2, Engine, Sinotruk WD615.47, 371HP atau 290HP / 36HP, teknologi German Man.
3, T-jenis pr Ujung depan. Tipper body: Bentuk persegi atau bentuk U.
4, Tipper body: 15cbm hingga 20cbm, kapasitas beban tugas berat: 30ton hingga 40 ton
Ketebalan lantai: 4mm ke 8mm, dinding Side whickness: 3mm sampai 6mm untuk penggunaan yang berbeda pelanggan
5, sistem Hidrolik: HYVA merek atau merek terkenal Cina.
| Kabin | Kabin Standar A7-W dengan satu tempat tidur tidur, AC, drive tangan kiri. Dengan dua ranjang, 70 ° dapat diolah secara hidrolik ke depan sebagai foto terlampir untuk ref. | ||||||
| Dimensi Utama Kendaraan | (L x W x H) mm | 9280 × 2496 × 3386 | |||||
| Dasar roda (mm) | 4625 + 1350 | ||||||
| Track roda (depan / belakang) (mm) | 2022/1830 | ||||||
| Approach / Departure angle (°) | 19/30 | ||||||
| Berat di KGS | Berat Tare | 12500 | |||||
| Memuat Kapasitas | 28400 | ||||||
| Kapasitas memuat gandar depan | HF9 1x8000 | ||||||
| Kapasitas memuat gandar belakang | HC16 2x16000 | ||||||
| Max. kecepatan mengemudi ( km / jam ) | 75 | ||||||
| Mesin | Merek | Sinotruk | |||||
| Model | WD615.47 | ||||||
| Mengetik | Injeksi langsung 4-langkah, 6-silinder segaris dengan pendingin air, pengisian turbo dan antar-pendinginan | ||||||
| Kekuatan Kuda (HP) | 371HP | ||||||
| Standar emisi | Euro Ⅱ | ||||||
| Gearbox | HW19710, 10 ke depan & 2 mundur | ||||||
| Kopling | Diperkuat kopling diafragma, diameter 430mm | ||||||
| Perseneling kemudi | ZF 8098, power steering, kemudi hidrolik dengan bantuan daya | ||||||
| Tangki bahan bakar (L) | 300 | ||||||
| Ban | 12R22.5 ban tubeless, 10 buah dengan satu cadangan | ||||||
| Rem | Layanan rem: sirkuit ganda rem udara terkompresi Rem parkir: (rem darurat): energi pegas, udara terkompresi yang beroperasi di roda belakang Rem bantu: rem katup mesin buang | ||||||
Bak Truk Dump:
Ketebalan | Sisi | 6mm dalam baja kekuatan tarik tinggi Q345 / B |
| Depan | 6mm dalam baja kekuatan tarik tinggi Q345 / B | |
| Bawah | 8mm dalam baja kekuatan tarik tinggi Q345 / B | |
| Ukuran tubuh dump | (L x W x H) | 5600mm x 2300mm x 1500mm, 19,3M3 |
Tipping hidrolik | Tip jenis | Jenis tiping menengah |
| Sistem tipping | Seperangkat lengkap sistem hidrolika merek terkenal Cina |

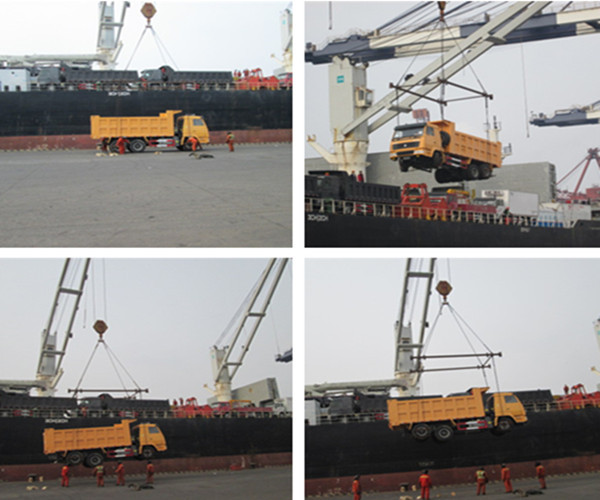

Pengepakan dan pengiriman:
