| Tank Volume: | 3000L, 5000L, 6000L, 8000L; 3M3 5M3 6M3 8M3 | Tank Material: | Carbon Steel |
|---|---|---|---|
| Product Name: | ISUZU Vacuum Sewage Suction Truck, Fecal Suction Truck | Depth Of Suction: | >= 6 Meters |
| Truck Brand: | ISUZU, HOWO, Dongfeng, FOTON, SHACMAN | Key Parts: | Vacuum Pump |
| Drive Type: | 4x2, 6 Wheels Or 6 Wheeler | Drive Model: | Right Hand Drive, Or Left Hand Drive |
| Highlight: | small tanker truck,gas tank trailer |
||

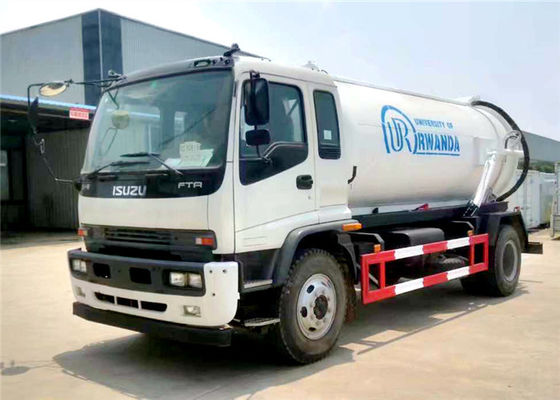

ISUZU 4x2 6 wheels 8M3 Vacuum Sewage Tank Truck 8000L Sewage Suction Truck, ISUZU 4x2 8000L / 8m3 / 8cbm Vacuum Sewage / fecal Suction Truck, fecal suction truck.
A sewage suction truck is a tank truck with a heavy duty vacuum designed to pneumatically load fecal, solids, liquids, sludge, crude oil or slurry through suction lines in diameter with 3" being the norm. We provide various sizes of sewage suction trucks with capacities ranging from 2cbm to 18cbm.
Our factory could produce different brand like Sinotruk HOWO, FOTON, DONGFENG, FAW etc with different sizes ranged from 3000Liters to 16000Liters as well as big size sewage suction trailers.
| The Parameters of ISUZU 8 m3 Sewage/fecal Suction Truck | |
| Overview | |
| Name | Sewage Suction Truck/fecal suction truck |
| Dimension(LxWxH) | 8990X2500X3380(mm) |
| Total Mass | 16050Kg |
| Rated Payload | 8000Kg |
| Kerb Weight | 8050Kg |
| Passenger | 3 |
| Approach/Departure Angle | 19/15 |
| The Parameters of Chassis | |
| Manufacture/Model | ISUZU, QINGLING/QL5160CCY9QFRJ |
| Driving Type | 4*2 left/right hand drive |
| Wheel Base | 5500 mm |
| Gearbox | Six speed lever with five speed forward and one reverse, manual |
| Front/Rear Track | 1506/1466(mm) |
| Tyre | 7.00-16 |
| The Number of Tyre | 6+1(spare tyre) |
| Front/ Rear Suspension | 1032/1658(mm) |
| Leaf Spring Number | 8/9+5, 6/8+4 |
| The Paremeters of Engine | |
| Manufacturer/Model | ISUZU/4HK1-TCG40 |
| Rated Power | 190hp/139kw |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 5193mL |
| Emission Standard | Euro4 |
| Cylinder | 510N.m |
| Velocity | 2600rpm |
| The Parameters of Equipment | |
| Tank Capacity | 8 m3 |
| Vacuum Pump Rotation Speed | 800r/m-1400r/m |
| Max. Suction Lift | >6m |
| Vacuum | >500mmHg |
| Rotation Direction | Clockwise |
| Time for full sucktion | <5min |
| Common Accessories | Vacuum pump, ball valve, oil cylinder for rear cap, oil cylinder for dumping, pressure meter, window for showing liquid level,lock system for rear cap, four-way valve, moisture separator,sprinkler (optional), alarm for full suction (optional),etc. |
