Professional Heavy Duty Semi Trailers 42000L 45000 L 50000 L Oil / Fuel Tank Trailer
Professional Heavy Duty Semi Trailers 42000L 45000 L 50000 L Oil / Fuel Tank Trailer
Basic Properties
certificate
CCC, ISO9001
PRODUCT MODEL
CSC003
Trading Properties
MOQ
1
unit price
18800-29800 USD/unit
Packing
Naked or Waxed before shipment
period for dispatch
25-30 days after receiving the deposit
payment method
L/C, T/T, Western Union, MoneyGram
Supply Capacity
100 unit per month
Product Details
Highlight:
low bed semi trailer
,container semi trailer
Product Name:
Fuel Tanker Semi Trailer
Suspension:
Mechanical Suspension(leaf Spring), Or Air Bag.
Tank Material:
Carbon Steel, Stainless Steel, Or Aluminum Alloy.
Axle:
13/16T FUWA BPW Brand
Tire:
11R22.5, 12R22.5 Tubeless Tire With One Spare
Application:
Fuel, Oil, Diesel, Petrol, Gasoline Transport / Delivery
Product Brief
3 axle 42000L oil tank trailer 42000L-55000L fuel tank trailer for sale, factory sale 42cbm fuel/oil tank trailer 42000L aluminum alloy fuel/oil tank semi trailer FOR TRANSPORTING DIESEL,PETROLUM,CRUDE OIL,EDIBLE OIL ,PALM OIL ,LIQUID BITUMEN ETC. This is Fuel tanker semi trailer ,also called oil ...
Product Description
3 axle 42000L oil tank trailer 42000L-55000L fuel tank trailer for sale, factory sale 42cbm fuel/oil tank trailer 42000L aluminum alloy fuel/oil tank semi trailer
FOR TRANSPORTING DIESEL,PETROLUM,CRUDE OIL,EDIBLE OIL ,PALM OIL ,LIQUID BITUMEN ETC.
This is Fuel tanker semi trailer ,also called oil tanker trailer ,fuel semi trailer , oil tanker semi trailer ,diesel tanker trailer , fuel trailers ,It can be loading one or three or four or five different kind of fuel or diesel ,petrol etc.
Study your demand and how many compartments you need and each volume, what kind of liquid do you transport, then we can decide the raw material of the tank. it will help you to deliver some liquids at the same time.
| Main Dimensions | ||||||
| Overall Length | 12900mm | |||||
| Overall Width | 2500mm | |||||
| Overall Height | 3780mm | |||||
| Tare Weight | 10600KGS | |||||
| Loading Capacity | 50m3 | |||||
| Photo only for reference, final product can be made according to exact requirements | ||||||
| Tank Body | ||||||
| Shape | Mono block Cylinder | |||||
| Total Volume(m3) | 50 CBM | |||||
| Tanker Body Material | 6mm carbon steel | |||||
| End plate | 6mm carbon steel | |||||
| Lifting Ladder | Including Top walkway and backside steel material | |||||
| Manhole cover | 2 manhole covers, ∮500mm 2 sets with 2 breather valves | |||||
| Bottom Valve | 1 sets of API Pneumatic Bottom Valve | |||||
| Top Safety Rail | 1 Set | |||||
| Discharging valve | 2 sets ∮100mm discharging valves | |||||
| No.of Compartment | 2 | |||||
| Discharging Pipe | 4”rubber hose, 2 pc, 6m long | |||||
| Chassis | ||||||
| Main Beams | Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation; | |||||
| Axle | 3 axles | |||||
| FUWA 13 Ton | ||||||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |||||
| King Pin | JOST brand 2” bolt-in king pin | |||||
| Suspension | German design heavy duty mechanical suspension | |||||
| Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. | |||||
| Wheel rim | 9.00-22.5 wheel rim, 13 pieces including one spare | |||||
| Tire | 12R22.5 tubeless tire with one spare tire, 13 pieces | |||||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint | |||||
| Accessories | One standard tool box | |||||

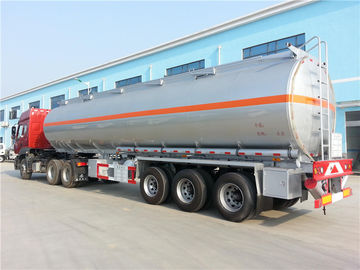

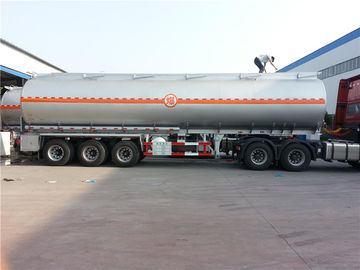

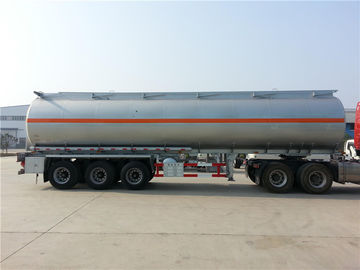

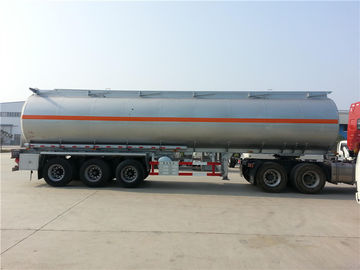

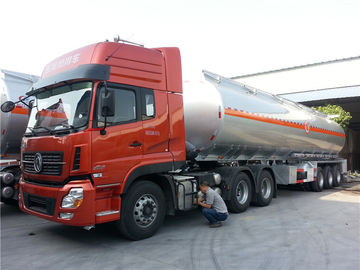

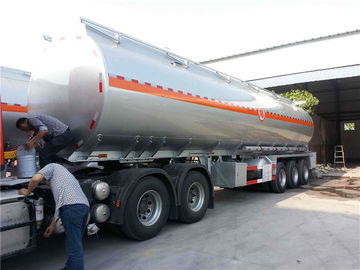

The picture of fuel tank trailer.

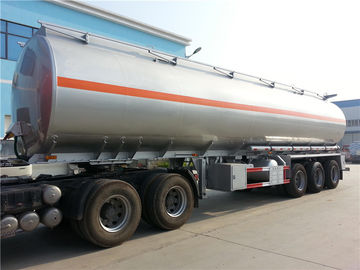

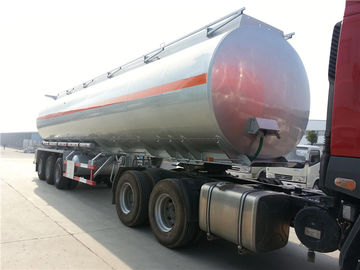

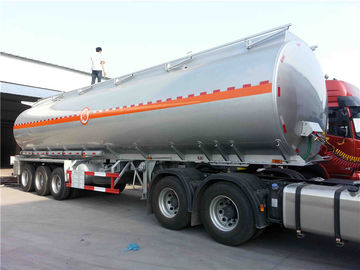

Fuel tank details
