Product Details:
Payment & Shipping Terms:
|
| Product Name: | LPG Filling Stations | Tanker Material: | Q345R Q370R Carbon Steel |
|---|---|---|---|
| Pump&motor: | 2 Sets Pump&motor With Two Lpg Filling Scales | Design Pressure: | 1.77Mpa |
| Filling Medium: | Liquefied Petroleum Gas Propane | Structural Form: | Integral Type Separated Type |
| Certification: | ISO9001 CCC ASME | LPG Tank Color: | Red White LPG Tank Customer's Request |
| Highlight: | lpg tanker truck,lpg bulk tank |
||

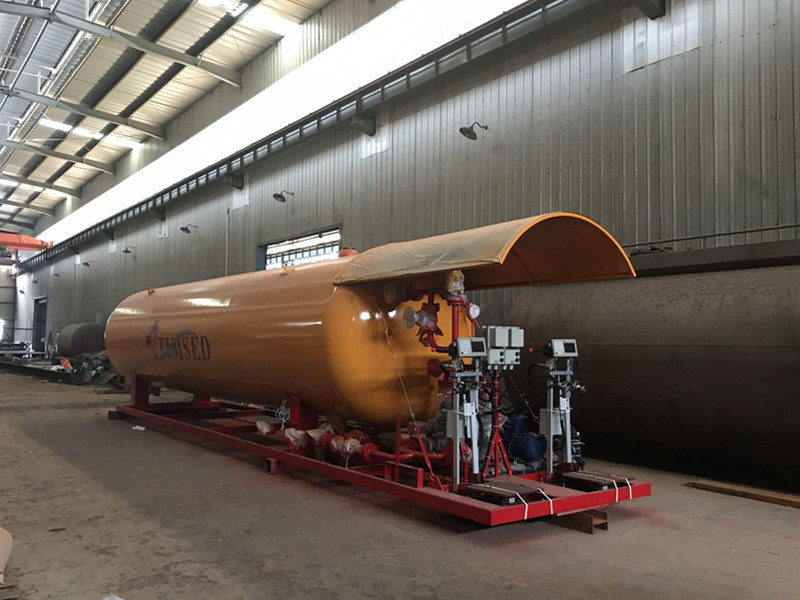

LPG Tank Gas Filling Stations Technical Parameters
| ITEM | PARAMETER | ITEM | PARAMETER | ||||||||
| Volume | 20M3 10Ton | Thickness of Shell | 12mm | ||||||||
| Tank Material | Carbon Steel Q345R | Thickness of End plate | 12mm | ||||||||
| Overall Size | 6154*2124*2714mm | Tank Net Weight | 5050kg | ||||||||
| Tank Diameter | 2100mm | Loading Capacity | 7980kg | ||||||||
| Design Pressure | 1.77Mpa | Gas Density | 500~590kg/M3 | ||||||||
| Hydraulic Test Pressure | 2.22Mpa | Corrosion Allowance | 1mm | ||||||||
| Design Temperature | -20ºC~50ºC | Heat Treatment | Bulk | ||||||||
| Vapor Outlet | DN50 | Gas Outlet | DN50 | ||||||||
| Designed Life time | 15 years | ||||||||||
| Extra SET for Accessories like follows (If you needed) | |||||||||||
| Model | Item | Qty | Junction surface | ||||||||
| J41N-2.5-50 | Stop Valve DN50 | 6 | RF | ||||||||
| J41N-2.5-25 | Stop Valve DN25 | 2 | RF | ||||||||
| J41N-2.5-80 | Stop Valve DN80 | 1 | RF | ||||||||
| J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | |||||||||
| HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF | ||||||||
| A42F-25-100 | Safety Valve DN80 | 1 | RF | ||||||||
| Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | |||||||||
| WTQ-280 | Thermometer M33*2 2.5 degree | 1 | -40ºC~60ºC | ||||||||
| model | design pressure | Cylinder size (diameter * tube length * wall thickness mm) | Dimensions (outside diameter * total height / total length mm) | Material | Total net weight(kg) | |
| 1 | 10m/10000L | 1.77MPa | 1600*4400*10 | 1620*2400*5300 | Q345R | 2800 |
| 2 | 15m/15000L | 1.77MPa | 1800*5250*12 | 1824*2600*6300 | Q345R | 4250 |
| 3 | 25m/25000L | 1.77MPa | 2200*5800*12 | 2224*3000*7100 | Q345R | 5850 |
| 4 | 30m/30000L | 1.77MPa | 2200*7100*12 | 2224*3000*8400 | Q345R | 6800 |
| 5 | 45m/45000L | 1.77MPa | 2600*7500*14 | 2628*3400*9000 | Q345R | 9770 |
| 6 | 50m/50000L | 1.77MPa | 2600*8500*14 | 2628*3400*10000 | Q345R | 10800 |
LPG Gas Filling Station Main Functions
* Feeding gas to gas vehicles: high quality dispenser is equipped and its measurement is accurate and stable.
* Unloading: The LPG tank car can unload the medium to the storage tank on the skid-mounted plant smoothly
* Drainage: The sundries like water-logging in the storage tank will e drained through the drain outlet.
* Emptying:The residual pressure in storage tank can be released through the emptying port during overgauling.
* Alternative Pumps: Under fault condition, gas filling pump and unloading pump can be mutually alternative.
* Reverse unloading:The liquid on the storage tank can be unloaded to the gas tank car and delivered.
* Emergency cut-off :Air-operated emergency cut-off valve is installed a the liquid outlet on the storage tank,
by which the emergency cut-off under abnormal conditions can be achieved.
* Leakage Alarm: Leakage probes are installed in the key positons of the skid-mounted gas station,
so as to dect the equipment's security status.
*Liquid Level Alarm: Upper and lower liquid level limit switch are installed. Therefore, it has liquid alarm and control function.
