SINOTRUK HOWO Heavy Duty Tow Truck , 12 Wheels 50 Ton 360 Degree Rotator Tow Truck

We received your trucks, and are very happy with the quality

—— Grace Arndt

I received the fuel tanker trailers, I am very pleased with the quality. Very good product

—— Hans Boehner

I'm Online Chat Now

SINOTRUK HOWO Heavy Duty Tow Truck , 12 Wheels 50 Ton 360 Degree Rotator Tow Truck

China SINOTRUK HOWO Heavy Duty Tow Truck , 12 Wheels 50 Ton 360 Degree Rotator Tow Truck supplier
SINOTRUK HOWO Heavy Duty Tow Truck , 12 Wheels 50 Ton 360 Degree Rotator Tow Truck supplier SINOTRUK HOWO Heavy Duty Tow Truck , 12 Wheels 50 Ton 360 Degree Rotator Tow Truck supplier SINOTRUK HOWO Heavy Duty Tow Truck , 12 Wheels 50 Ton 360 Degree Rotator Tow Truck supplier SINOTRUK HOWO Heavy Duty Tow Truck , 12 Wheels 50 Ton 360 Degree Rotator Tow Truck supplier SINOTRUK HOWO Heavy Duty Tow Truck , 12 Wheels 50 Ton 360 Degree Rotator Tow Truck supplier SINOTRUK HOWO Heavy Duty Tow Truck , 12 Wheels 50 Ton 360 Degree Rotator Tow Truck supplier

Large Image :  SINOTRUK HOWO Heavy Duty Tow Truck , 12 Wheels 50 Ton 360 Degree Rotator Tow Truck

Product Details:

Certification: CCC, ISO9001, TS16949
Model Number: chusheng

Payment & Shipping Terms:

Minimum Order Quantity: 1 units
Price: Could be negotiated
Packaging Details: waxed or Naked before shipping
Delivery Time: 35-40 work days after receiving the deposit
Payment Terms: Western Union, MoneyGram, L/C, T/T
Supply Ability: 1000 UNITS per Month
Contact Now
Detailed Product Description
Item Name: 50 Ton Tow Truck Loading Capacity: 25T, 2*25T, 40tons, 50 Tons
Wrecker Type: 360 Degree Rotator, 360 Degree Rotation Driving Type: 8x4, Left Hand Drive / Right Hand Drive
Other Driveing Type Available: 4x2, 6 Wheels ,6x4, 10 Wheels, 8x4, 12 Wheels Chassis Brand: SINOTRUK HOWO
Other Brand Available: Dongfeng, HOWO, SHACMAN, JAC, JMC, FAW, FORLAND Etc Engine Horse Power: 226hp, 290hp, 336hp, 371hp Etc
Other Type: Heavy Duty , Flatbed Wrecker Tow
High Light:

heavy duty tow truck

,

flatbed tow truck

Heavy Duty HOWO 8x4 371hp 40T Wrecker Truck 12 Wheels 40tons Road Wreck Truck, 50T Wrecker Tow Truck 12 Wheels 50tons Road Wreck Towing Truck, 360 degree rotator Road Recovery Truck



Wrecker Truck, is also called as towing truck, wrcker flatbed, or towing equipment truck,is mainlyused for safety salvage of vehicles subject to city road, suburb

way, highway,airport and bridge road. It is suitable for medium and smallsized cargos, cars and

other special vehicles, which are allowed within the technical parameters of this kind. It is made of the chassis, hoisting equipment, lifting and towing equipment, hydraulic system, electric control system, truck body and the tool boxes. Road wrecker can hoist, lift, tow and be with other special functions, mainly used in highway and city road obstacle handling.



Heavy duty SINOTRUK HOWO 8x4 371hp 40T wrecker truck parameters:

CHASSIS
Cabin standard cabin, with air conditioner, allowed for 2~3 persons
No load(kg) Curb Weight 13070
Front axle 7000*2
Rear axle 18000*2
Full load Max. Overall Weight 31000
Overall Dimensions(mm) Length 11430
Width 2500
Height 3270
Wheel base(mm) 1800+4600+1350
Track(mm) 2022/1830
F/R Suspension(mm) 1500/2200
A/D Angle(°) 16/18
Driving Model 8*4
Tyre 12R22.5
Max. Speed(km/h) 102
Max. Grade-ability(%) 30
Min. Turning Diameter(m) 22.6
Min. Ground clearance(mm) 310
Engine Model WD615.47
Horsepower(HP) 371
Displacement(mL) 9726
Transmission 10 forwards&2 reverses
WRECKER EQUIPMENT
Max. Towing Weight(kg) 43000
Lifting System Max. Lifting Weight(kg) 25000
Max. Lifting Weight under all extension(kg) 8300
Effective Length of Corbeling Arm(mm) 3650
Extend-retract of Corbeling Arm(mm) 1750
Slope Angle of Corbeling Arm(°) 7
Folding angle under no load(°) -7~92
Folding angle under load(°) -7~16
Max. Ground Distance(mm) 900
Landing Strength(KN) 80*2
Hydraulic Hose Tianhe,Guangdong Province
Hydraulic Joint Germany technology and exported Sealing rings
Hydraulic Lock Jiangyin Mingcheng Hydraulic and Mechanical Co.,Ltd.
Swivel Joint Yangzhou Zhongmei Pressure Parts Co.,Ltd.
Compartment plate One-step Modeling by Germany 3P2A 1000T punching machine
Hoisting System Max. Hoisting Weight(kg) 30000
Max. Hoisting Weight under all extension when Hoisting Angle is 30°(kg) 7800
Max. Hoisting Weight underno extension when Hoisting Angle is 30°(kg) 18000
Extension Distance of Oil Cylinder(mm) 6000
Length of Crane Arm(mm) 5880
Section No. Of Crane Arm 3
Max. Hoisting Height(mm) 12300
Max. Operation Diameter (mm) 10710
Max. Hoisting Angle(°) 0~60
Rotation angle(°) 360
Winch No. 2
Curb Traction/Per(KN) 150
DN of Steel Rope(mm) Φ20
Length of Steel Rope(m) 40*2
Min. Line Speed(m/min) 5
Front Outrigger Type “H” type
Rear Outrigger Type “L” type
Front Outrigger Span(mm) 6600
Rear Outrigger Span(mm) 4080
Span between front and rearOutriggers 5550
Jump-start cables 12~24 Volts
Electric system Rear working lamp(stop,tail,turning) 3
Revolving beacon 1
Lamps for license plate 1 set
Pneumatic hoses 1 set

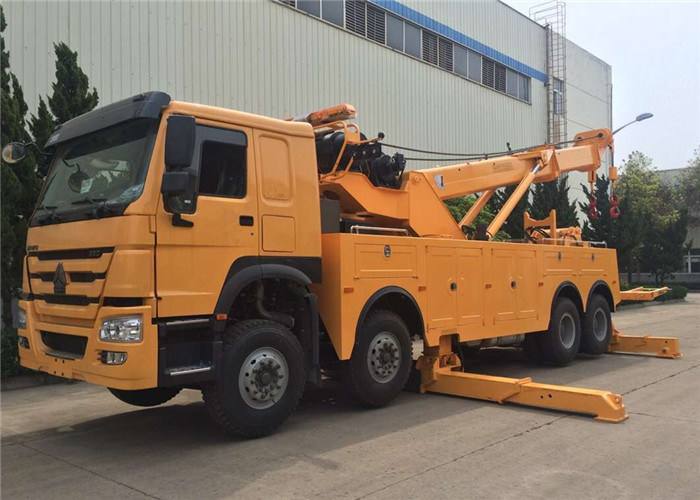

Heavy duty SINOTRUK HOWO 8x4 371hp 50T wrecker tow truck detailed images:

SINOTRUK HOWO Heavy Duty Tow Truck , 12 Wheels 50 Ton 360 Degree Rotator Tow Truck

SINOTRUK HOWO Heavy Duty Tow Truck , 12 Wheels 50 Ton 360 Degree Rotator Tow Truck

SINOTRUK HOWO Heavy Duty Tow Truck , 12 Wheels 50 Ton 360 Degree Rotator Tow Truck



good sale wrecker tow truck, heavy duty wrecker truck for sale

Road Wrecker,towing truck, which is used for dealing with the cars and trucks in accident.
Currently there are tow mainly design for wrecker trucks, flat bed model and towing model.
flat bed model is mainly designed for cars, which could transport two units cars, with the weight design 5 tons around.
Towing model is mainly designed for deal with heavy duty vehicles, with the weight above 50 tonne.
Currently Our company produce this two kinds of wrecker,different brand for option, and different capacity for option.
Welcome for your inquiry.
