| Item Name: | Tractor Head Truck | Wheel Type: | 4x2 6x4 8x4 |
|---|---|---|---|
| Driving Type: | Left Hand Drive / Right Hand Drive | Transmision Type: | HW19710, Manual Control |
| Fuel Type: | Diesel | Oversall Dimension: | 6800*2496*2970mm |
| Engine Horse Power: | 266hp, 290hp, 336hp, 371hp 420hp For Optional | Cab: | A7-P, 2 Seat, 1 Sleeper Bed, With Air Conditioner |
| Tires Model Number: | 12R22.5, With One Spare 13pcs | Other Brand: | HOWO, Dongfeng, FAW, Forland, Shacman, JAC Etc |
| High Light: | 6x4 tractor head,howo tractor head |
||

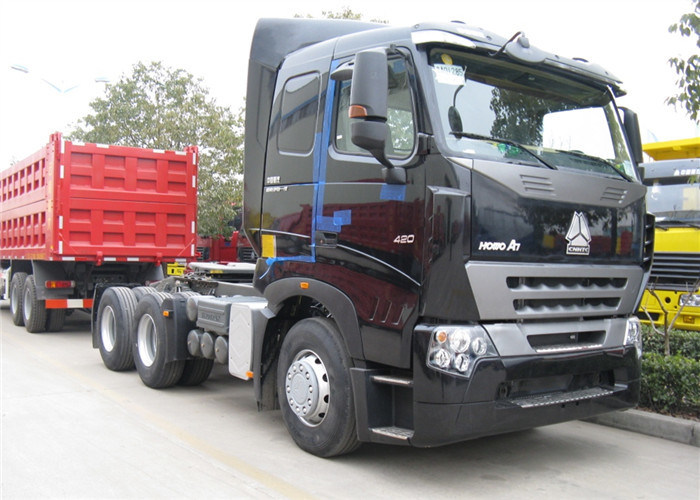

RHD/LHD SINOTRUK HOWO A7 6X4 420HP tractor head 10 wheels prime mover, 420hp tractor truck
Brand: SINOTRUK HOWO A7
Horse power: D12.42, 420HP.
Type: 6x4
Wheel: 10 wheels, 10 wheeler
Emisson standard: Euro II
| Cabin |
Driving type 6x4 LHD, or RHD
|
|
|
Adjustable steering wheel with various heights and angle, air suspension seat central door lock, electric window lifer, power mirror as attached photo for ref.
|
||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 6985x2496x3250 |
| Wheel base (mm) | 3500 | |
| Wheel track (front/rear) (mm) | 2022/1830 | |
| Front/Rear overhang(mm) | 1540/1000 | |
| Max. driving speed(km/h) | 102 | |
| Engine | Brand | Sinotruk |
| Model | D12.42 | |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 420HP | |
| Emission standard | Euro 2 | |
| Gearbox | Sinotruk’s HW19710 gearbox, manual transmission | |
| Clutch | Sinotruk’s 430 diaphragm spring clutch | |
| Front axle | New HW07 single reduction driving axle; | |
| Rear axle | ST 16T duel reduction drive axle; | |
| Tire | 12.00R20 all steel radial tire, 11pieces including one spare tire | |
| Brakes system |
Front disc star shoes brake, four-circuit protection valve, EVB brake actuator, Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
|
| Frame | High-strength single U-profile frame with a section of 30*90*8 | |
| Electrical system | 24V, CAN bus intellectual electronic control system | |
FAQ:
Q1. Are your manufacturer ?
A : Yes! We can totally manufacture the trucks as you required.
Q2. Do you have a good orgonization of shipping vessle ?
A : Yes, we have a good and long term cooperation with the world first class famous shipping company line,
like MSK,PIL,SUNSHINE SHIPPING,ETC.The order over 500 units of vehicle,we will lease a vessel.
Q3. How about your warranty items?
A : We supply original spare parts of our vehicles, if you need, we will show you spare parts list for your
choosing to make sure daily maintain of your vehicles.
Q4. Can I be your agent in my country?
A : It is Ok if the order is appropriate, we looks forward to long-term cooperation with you.
Q5. What is the delivery time and payment term?
A : Our common products delivery time is 10-35 working days except some definitely special vehicles.
We accept 30% T/T deposit and 70% balance T/T or 100% L/C. More details, please contact with our salesman.
Factory:
1. Xiagong Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is a famous and the biggest manufacturer with very professional experience in special automobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.
2. Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.
3. We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.
