"lpg bulk tank"
25 Ton LPG Bullet Tanks 50 CBM Color Custom Untuk Isi Ulang Gas Cylinder
25tons lpg gas bullet tank 50cbm for gas cylinder refilling usage Technique Parameter for 25tons lpg gas tank Item No. Parameters Volume of Tank (cbm) 50 Tare Weight (kg) 10640 kg Filling Capacity (kg) 19950 kg Thickness of Shell (mm) 14 Thickness of Endplate (mm) 16 tank cylinder diameter (mm) 2700 External Dimensions (mm) (length×width×height) 9182*2728*3318 Material of Tank and Main Pressure Parts Carbon Steel Q345R Filling Medium Liquefied Petroleum Gas Design Pressure 1
Tangki Penyimpanan LPG 20000L yang Disesuaikan CSC2018005 10 Ton LPG Pabrik Pengisian Ulang Gas
Factory Customized 20, 000L LPG Skid 10tons Tank Station LPG Refilling Gas Plant for Nigeria 1) lpg tank skid capacity 5,000l , 10,000l, 15,000l, 20,000l, 25,000l, 30,000l, 35,000l, 50,000l, 80,000l, 100,000l . 120,000l, 150,000l, 180,000l, 200,000l. 2) lpg tank skid material Q345R Q370R SA516 16MnR 3) lpg tank skid production flow cuttings-bending plate-submerged arc welding-assembly-non destructive testing-heat treatment- hydraulic test- sand blasting-painting 4) Main parts
80000 Liter Tangki Penyimpanan LPG Besar 80 CBM 40 Ton LPG Tangki Gas Cair
80000Liters LPG Storage Tank 80CBM LPG Bulk Tank 40Tons LPG Liquid Gas Tank Item Unit Parameter Product Name Liquefied Gas Storage Tank Brand Name Chusheng Model CLG3200-120 Overall dimensions mm TBD Tank Dimension DN3200*18*13800(inner dia*thickness*length) Fact cubage m3 120 Fact loading weight T 60 Tank weight 22.8 Working pressure Mpa ≤1.6 Testing hydraulic pressure 2.12 Testing pressure for gas density 1.77 Test pressure 1.69 Air tight test pressure 1.69 Safety valve
30M3 LPG Storage Tanks 30 CBM 15 Ton Memasak Gas LPG Tank Warna Custom
30M3 LPG Storage Tank 30CBM Cooking Gas LPG Tank 15Tons LPG Tanker LPG Tank Technical Parameters: LPG Relevant Product:
10M3 LPG Storage Tank 10000 Liter LPG Filling Stations Jenis Terpisah Jenis Terpisah
10M3 LPG Gas Filling Station 5MT LPG Skid Station 10,000liters LPG Filling Station 1.We used advanced production line laid a solid foundation for the prefect products; perfect quality assurance system assures quality of products warm and thoughtful after-sale service,Lifting customer`s worries. 2.We used double-layer power accumulation to insulate,The work pressure is from 0 to 1.75 Mpa LPG Fuel Storage Tank .For the types,we have Vertical and horizontal. 3.About material
10 Ton LPG Skid Station, 20cbm 20000 Liter LPG Cylinder Filling Station
20cbm LPG Filling Station 10tons LPG Skid Station 20, 000liters LPG Cylinder Filling Station LPG Tank Gas Filling Stations Technical Parameters ITEM PARAMETER ITEM PARAMETER Volume 20M3 10Ton Thickness of Shell 12mm Tank Material Carbon Steel Q345R Thickness of End plate 12mm Overall Size 6154*2124*2714mm Tank Net Weight 5050kg Tank Diameter 2100mm Loading Capacity 7980kg Design Pressure 1.77Mpa Gas Density 500~590kg/M3 Hydraulic Test Pressure 2.22Mpa Corrosion Allowance 1mm
40M3 LPG Cylinder Filling Station 20MT 40000 Liter Chusheng007 Untuk Penyimpanan
40M3 LPG Filling Station 20MT LPG Skid Station 40,000liters LPG Cylinder Filling Station ITEM PARAMETER ITEM PARAMETER Volume 20M3 10Ton Thickness of Shell 12mm Tank Material Carbon Steel Q345R Thickness of End plate 12mm Overall Size 6154*2124*2714mm Tank Net Weight 5050kg Tank Diameter 2100mm Loading Capacity 7980kg Design Pressure 1.77Mpa Gas Density 500~590kg/M3 Hydraulic Test Pressure 2.22Mpa Corrosion Allowance 1mm Design Temperature -20ºC~50ºC Heat Treatment Bulk Vapor
Tangki Penyimpanan LPG Profesional 20M3 10 Ton Dengan Timbangan Pengisian LPG OEM Diterima
20M3 LPG Gas Filling Station 10Tons LPG Skid Station With LPG Filling Scales ITEM PARAMETER ITEM PARAMETER Volume 20M3 10Ton Thickness of Shell 12mm Tank Material Carbon Steel Q345R Thickness of End plate 12mm Overall Size 6154*2124*2714mm Tank Net Weight 5050kg Tank Diameter 2100mm Loading Capacity 7980kg Design Pressure 1.77Mpa Gas Density 500~590kg/M3 Hydraulic Test Pressure 2.22Mpa Corrosion Allowance 1mm Design Temperature -20ºC~50ºC Heat Treatment Bulk Vapor Outlet DN50
Ledakan Bukti Lpg Pump Lpg Motor Lpg Gas Compressor Untuk Lpg Gas Station

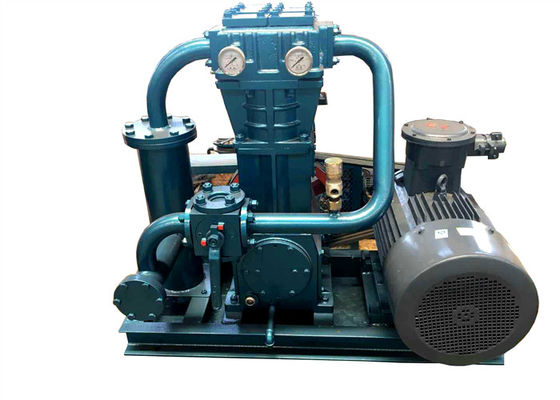

Explosion Proof Lpg Pump Lpg Motor Lpg Gas Compressor For Lpg Gas Station Media LPG Gas Cooling Type Wind Cool Compressing Stage 1 Capacity 1.0m3/Min Inlet Pressure 1.0MPa Outlet Pressure 1.6MPa Speed 650rpm Ex Motor 11kw,380V,50Hz Weight 450kgs More Pictures for your reference:
