30M3 LPG Storage Tanks 30 CBM 15 Ton Memasak Gas LPG Tank Warna Custom
30M3 LPG Storage Tanks 30 CBM 15 Ton Memasak Gas LPG Tank Warna Custom
Properti Dasar
Sertifikat
ASME ISO CCC ISO9001
Model Produk
5-200m3
Properti Perdagangan
MOQ
1 unit
Patokan harga
negotiable
sedang mengemas
Paket Nake Kapal Kontainer Kapal RO-RO Digunakan
jangka waktu pengiriman
15-30 hari kerja
Metode Pembayaran
L / C, T / T, D / A, D / P, Western Union, MoneyGram
Kapasitas Pasokan
50.000 unit per tahun
Detail Produk
Menyoroti:
truk tanker lpg
,tangki peluru lpg
Product Name:
Tangki curah LPG
Tank Material:
Q345R Q370R Carbon Steel
Applications:
15kgs 50kgs Isi Ulang Silinder 100kgs
Color:
Permintaan LPG Storage Tank Pelanggan Merah Putih
LPG Filling Medium:
Propana Gas Minyak Mentah
Tank Capacity:
5m3 10m3 20m3 30m3 40m3 50m3 60m3 80m3 100m3
Tank Type:
di tanah atau di bawah tanah
Ringkasan produk
Tangki Penyimpanan LPG 30M3 30CBM Gas Memasak Tangki LPG 15Tons LPG Tanker Parameter Teknis Tangki LPG: Produk Terkait LPG :
Deskripsi Produk
Tangki Penyimpanan LPG 30M3 30CBM Gas Memasak Tangki LPG 15Tons LPG Tanker

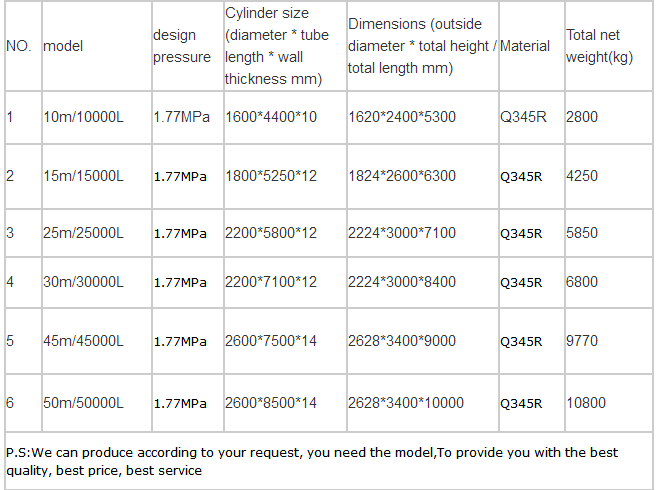

Parameter Teknis Tangki LPG:

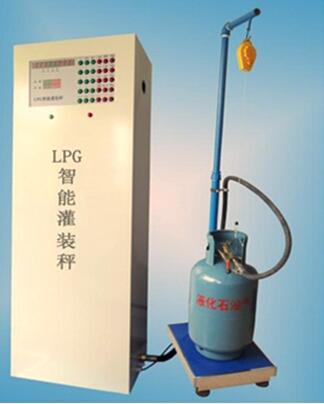

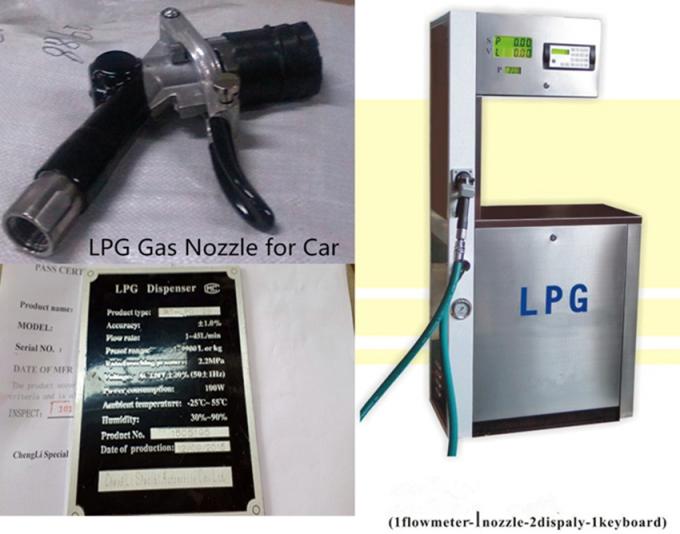

Produk Terkait LPG :
Produk Terkait

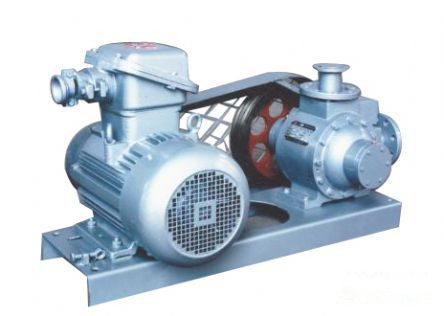

Ledakan Bukti Lpg Pump Lpg Motor Lpg Gas Compressor Untuk Lpg Gas Station
Explosion Proof Lpg Pump Lpg Motor Lpg Gas Compressor For Lpg Gas Station Media LPG Gas Cooling Type Wind Cool Compressing Stage 1 Capacity 1.0m3/Min Inlet Pressure 1.0MPa Outlet Pressure 1.6MPa Speed 650rpm Ex Motor 11kw,380V,50Hz Weight 450kgs More Pictures for your reference:
5 ~ 100 CBM LPG Skid Tank, Q345R Carbon Steel Liquefied Petroleum Gas Tank
5~100cbm LPG Skid Tank Q345R Carbon Steel LPG Storage Tank LPG Tank for Sale LPG Tanks Technical Specifications Parameter Tank Tank name LPG storage tank Overall dimensions 13024*3244*3830 mm Inner diameter 3200mm Vessel type on the ground Designing pressure 1.91 Mpa Working pressure 1.61 Mpa Designing temperature -19~50 Filling medium Liquid petroleum/propane gas Corrosion margin 1.00 mm Curb weight 49400kg Full capacity 100m³ Heat treatment Bulk Filling factor 520 Kg/ m³
20m3 20.000 Liter Tangki Penyimpanan LPG 10 Ton Baja Karbon Q345R Material
20m3 LPG Skid Tank 20000Liters LPG Storage Tank 10ton LPG Tank For Sale LPG Tank Technical Parameters: Specification Of 50CBM/25TON LPG Tank Volume of Tank 50CBM 50,000liters Filling Weight 19950kg Tank Weight 10640kg Thickness of Shell (mm) 14mm Thickness of Endplate (mm) 16 mm Tank Diameter (mm) 2700 mm External Dimensions (mm) (L x W x H) 9182x2728x3318mm Material of Tank Carbon Steel Q345R Filling Medium Liquefied Petroleum Gas ( Propane) Design Pressure 1.77 MPa
Tangki Penyimpanan Gas LP 20m3, 10 Ton Tangki LPG Gas 20000 Liter Untuk Transportasi
20m3 LPG Skid Tank 20000Liters LPG Storage Tank 10ton LPG Tank For Sale LPG Tank Technical Parameters: Nozzle dataCharactersSizePressure(MPa)ConnectJunction surfacePurposeaDN5025HG20592-WNRFDrain outletbDN8025HG20592-WNRFLiquid phase outletc1-2DN5025HG20592-WNRFGaseous phase balanced outletdDN8025HG20592-WNRFLiquid inleteM33*2 Screw-threadThermometer connectionf1-2DN2525HG20592-WNRFLever gauge connectiongM20*1.5 Screw-threadPressure GagehDN8025HG20592-WNRFSafety valve
