"lpg bulk tank"
25 do LPG da bala dos tanques 50 de CBM toneladas de costume da cor para o reenchimento do cilindro de gás
25tons lpg gas bullet tank 50cbm for gas cylinder refilling usage Technique Parameter for 25tons lpg gas tank Item No. Parameters Volume of Tank (cbm) 50 Tare Weight (kg) 10640 kg Filling Capacity (kg) 19950 kg Thickness of Shell (mm) 14 Thickness of Endplate (mm) 16 tank cylinder diameter (mm) 2700 External Dimensions (mm) (length×width×height) 9182*2728*3318 Material of Tank and Main Pressure Parts Carbon Steel Q345R Filling Medium Liquefied Petroleum Gas Design Pressure 1
Tanques de armazenamento personalizados CSC2018005 de 20000L LPG 10 toneladas de gás do LPG que reenche a planta
Factory Customized 20, 000L LPG Skid 10tons Tank Station LPG Refilling Gas Plant for Nigeria 1) lpg tank skid capacity 5,000l , 10,000l, 15,000l, 20,000l, 25,000l, 30,000l, 35,000l, 50,000l, 80,000l, 100,000l . 120,000l, 150,000l, 180,000l, 200,000l. 2) lpg tank skid material Q345R Q370R SA516 16MnR 3) lpg tank skid production flow cuttings-bending plate-submerged arc welding-assembly-non destructive testing-heat treatment- hydraulic test- sand blasting-painting 4) Main parts
80000 de grandes litros tanques de armazenamento 80 CBM do LPG 40 do LPG toneladas de tanque de gás líquido
80000Liters LPG Storage Tank 80CBM LPG Bulk Tank 40Tons LPG Liquid Gas Tank Item Unit Parameter Product Name Liquefied Gas Storage Tank Brand Name Chusheng Model CLG3200-120 Overall dimensions mm TBD Tank Dimension DN3200*18*13800(inner dia*thickness*length) Fact cubage m3 120 Fact loading weight T 60 Tank weight 22.8 Working pressure Mpa ≤1.6 Testing hydraulic pressure 2.12 Testing pressure for gas density 1.77 Test pressure 1.69 Air tight test pressure 1.69 Safety valve
tanques de armazenamento 30 CBM de 30M3 LPG 15 toneladas que cozinham o costume da cor do tanque do LPG do gás
30M3 LPG Storage Tank 30CBM Cooking Gas LPG Tank 15Tons LPG Tanker LPG Tank Technical Parameters: LPG Relevant Product:
tanques de armazenamento de 10M3 LPG 10000 do LPG litros de tipo integral tipo separado dos postos de gasolina
10M3 LPG Gas Filling Station 5MT LPG Skid Station 10,000liters LPG Filling Station 1.We used advanced production line laid a solid foundation for the prefect products; perfect quality assurance system assures quality of products warm and thoughtful after-sale service,Lifting customer`s worries. 2.We used double-layer power accumulation to insulate,The work pressure is from 0 to 1.75 Mpa LPG Fuel Storage Tank .For the types,we have Vertical and horizontal. 3.About material
10 do LPG toneladas de estação do patim, 20cbm 20000 do LPG litros de posto de gasolina do cilindro
20cbm LPG Filling Station 10tons LPG Skid Station 20, 000liters LPG Cylinder Filling Station LPG Tank Gas Filling Stations Technical Parameters ITEM PARAMETER ITEM PARAMETER Volume 20M3 10Ton Thickness of Shell 12mm Tank Material Carbon Steel Q345R Thickness of End plate 12mm Overall Size 6154*2124*2714mm Tank Net Weight 5050kg Tank Diameter 2100mm Loading Capacity 7980kg Design Pressure 1.77Mpa Gas Density 500~590kg/M3 Hydraulic Test Pressure 2.22Mpa Corrosion Allowance 1mm
posto de gasolina 20MT do cilindro de 40M3 LPG 40000 litros de Chusheng007 para o armazenamento
40M3 LPG Filling Station 20MT LPG Skid Station 40,000liters LPG Cylinder Filling Station ITEM PARAMETER ITEM PARAMETER Volume 20M3 10Ton Thickness of Shell 12mm Tank Material Carbon Steel Q345R Thickness of End plate 12mm Overall Size 6154*2124*2714mm Tank Net Weight 5050kg Tank Diameter 2100mm Loading Capacity 7980kg Design Pressure 1.77Mpa Gas Density 500~590kg/M3 Hydraulic Test Pressure 2.22Mpa Corrosion Allowance 1mm Design Temperature -20ºC~50ºC Heat Treatment Bulk Vapor
Os tanques de armazenamento profissionais 20M3 do LPG 10 toneladas com enchimento do LPG escalam o OEM aceitado
20M3 LPG Gas Filling Station 10Tons LPG Skid Station With LPG Filling Scales ITEM PARAMETER ITEM PARAMETER Volume 20M3 10Ton Thickness of Shell 12mm Tank Material Carbon Steel Q345R Thickness of End plate 12mm Overall Size 6154*2124*2714mm Tank Net Weight 5050kg Tank Diameter 2100mm Loading Capacity 7980kg Design Pressure 1.77Mpa Gas Density 500~590kg/M3 Hydraulic Test Pressure 2.22Mpa Corrosion Allowance 1mm Design Temperature -20ºC~50ºC Heat Treatment Bulk Vapor Outlet DN50

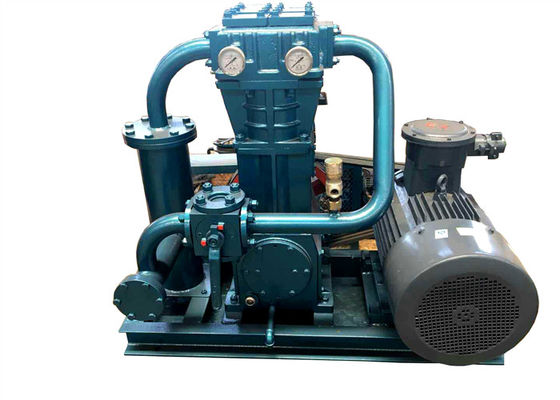

Compressor de gás à prova de explosões do Lpg do motor do Lpg da bomba do Lpg para o posto de gasolina do Lpg
Explosion Proof Lpg Pump Lpg Motor Lpg Gas Compressor For Lpg Gas Station Media LPG Gas Cooling Type Wind Cool Compressing Stage 1 Capacity 1.0m3/Min Inlet Pressure 1.0MPa Outlet Pressure 1.6MPa Speed 650rpm Ex Motor 11kw,380V,50Hz Weight 450kgs More Pictures for your reference:
