Q345R Q370R Carbon Steel LPG Gas Filling Station 20CBM 10MT 20000 Liters

China Q345R Q370R Carbon Steel LPG Gas Filling Station 20CBM 10MT 20000 Liters supplier
Q345R Q370R Carbon Steel LPG Gas Filling Station 20CBM 10MT 20000 Liters supplier Q345R Q370R Carbon Steel LPG Gas Filling Station 20CBM 10MT 20000 Liters supplier Q345R Q370R Carbon Steel LPG Gas Filling Station 20CBM 10MT 20000 Liters supplier

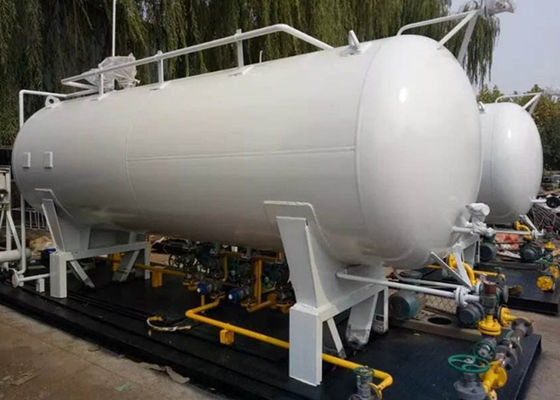

Large Image :  Q345R Q370R Carbon Steel LPG Gas Filling Station 20CBM 10MT 20000 Liters

Product Details:

Certification: ISO9001 CCC ASME ISO
Model Number: Chusheng001

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Price negotiable
Packaging Details: Nake Package Used Bulk Ship Container Ship
Delivery Time: 15-25 work days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 6000unit per year
Detailed Product Description
Product Name: LPG Skid Tank Tanker Material: Q345R Q370R Carbon Steel
Pump&motor: 2 Sets Pump&motor With Two Lpg Filling Scales Design Pressure: 1.17Mpa
Filling Medium: Liquefied Petroleum Gas Propane Structural Form: Integral Type Separated Type
Certification: ISO9001 CCC ASME LPG Tank Color: Red White LPG Tank Customer's Request
High Light:

lpg tanker truck


lpg bullet tanks

20CBM LPG Gas Filling Station 10MT LPG Skid Tank Station 20,000liters LPG Filling Station


Part 1. LPG Gas Filling Station Main Functions:


* Feeding gas to gas vehicles: high quality dispenser is equipped and its measurement is accurate and stable.

* Unloading: The LPG tank car can unload the medium to the storage tank on the skid-mounted plant smoothly

* Drainage: The sundries like water-logging in the storage tank will e drained through the drain outlet.

* Emptying:The residual pressure in storage tank can be released through the emptying port during overgauling.

* Alternative Pumps: Under fault condition, gas filling pump and unloading pump can be mutually alternative.

* Reverse unloading:The liquid on the storage tank can be unloaded to the gas tank car and delivered.

* Emergency cut-off :Air-operated emergency cut-off valve is installed a the liquid outlet on the storage tank,
by which the emergency cut-off under abnormal conditions can be achieved.

* Leakage Alarm: Leakage probes are installed in the key positons of the skid-mounted gas station,
so as to dect the equipment's security status.

* Liquid Level Alarm: Upper and lower liquid level limit switch are installed. Therefore, it has liquid alarm and control function.


Part 2. LPG Gas Filling Stations Technical Parameters:


Volume 20M3 10Ton Thickness of Shell 12mm
Tank Material Carbon Steel Q345R Thickness of End plate 12mm
Overall Size 6154*2124*2714mm Tank Net Weight 5050kg
Tank Diameter 2100mm Loading Capacity 7980kg
Design Pressure 1.77Mpa Gas Density 500~590kg/M3
Hydraulic Test Pressure 2.22Mpa Corrosion Allowance 1mm
Design Temperature -20ºC~50ºC Heat Treatment Bulk
Vapor Outlet DN50 Gas Outlet DN50
Designed Life time 15 years
Extra SET for Accessories like follows (If you needed)
Model Item Qty Junction surface
J41N-2.5-50 Stop Valve DN50 6 RF
J41N-2.5-25 Stop Valve DN25 2 RF
J41N-2.5-80 Stop Valve DN80 1 RF
J24W-320-DN6 J24W Needle Valve M20*1.5 1
HG21584-95 Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 1 RF
A42F-25-100 Safety Valve DN80 1 RF
Y-100T Pressure Gauge M20*1.5 1.5degree 0~4Mpa 1
WTQ-280 Thermometer M33*2 2.5 degree 1 -40ºC~60ºC


model design pressure Cylinder size (diameter * tube length * wall thickness mm) Dimensions (outside diameter * total height / total length mm) Material Total net weight(kg)
1 10m/10000L 1.77MPa 1600*4400*10 1620*2400*5300 Q345R 2800
2 15m/15000L 1.77MPa 1800*5250*12 1824*2600*6300 Q345R 4250
3 25m/25000L 1.77MPa 2200*5800*12 2224*3000*7100 Q345R 5850
4 30m/30000L 1.77MPa 2200*7100*12 2224*3000*8400 Q345R 6800
5 45m/45000L 1.77MPa 2600*7500*14 2628*3400*9000 Q345R 9770
6 50m/50000L 1.77MPa 2600*8500*14 2628*3400*10000 Q345R 10800


Part 3. Our Service


1. we can send our technician to arrive the customer's country to provide the service and also we can train customer's workers for free.

2. free consultation forever. When you meet small problems, professional advices can help you to solve them soon.

3. One year free cost warranty.

4. Spare parts forever. When you need spare parts, we can send them to you immediately.


Part 4. FAQ


Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.L/C terms is also can be accepted .

Q3. What is your terms of delivery?


Q4. How about your delivery time?

A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.


Part 5. Company Information:


1. Xiagong Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is a famous and the biggest
manufacturer with very professional experience in special automobile field for more than 15 years in China.
We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.


2. Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated
Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck,
Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation
Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.


3. We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru,
Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines,
Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.


Part 6. LPG Tank Progress:


We have made the national A2,C2 type of pressure vessel qualification, to obtain export certification and qualification ,we have advanced equipment including automatic submerged arc welding machine, large underwater plasma cutting machine, rolling machine and other forming large tank. Testing equipment including ultrasonic flaw detector, X-ray detectors, magnetic detectors, equipped with heat treatment and testing rooms to make sure quality of products.All products must be get inspection authorization from third party before shipment. Manufacture and design code could be GB150 OR ASME.
