20m3 LP Gas Storage Tanks , 10 Ton 20000 Liter LPG Gas Tank For Transport
20m3 LP Gas Storage Tanks , 10 Ton 20000 Liter LPG Gas Tank For Transport
Basic Properties
certificate
ASME ISO CCC ISO9001
PRODUCT MODEL
5~100m3 LPG Tank
Trading Properties
MOQ
1 Unit
unit price
Negotiable
Packing
Nake Package Used RO-RO Ship Container Ship
period for dispatch
15-30 work days
payment method
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Capacity
50000 units per year
Product Details
Highlight:
lpg bullet tanks
,lpg bulk tank
Product Name:
LPG Gas Storage Tank
Tank Material:
Q345R Q370R Carbon Steel
Applications:
Storage Transport Or Refilling Use
Color:
Red White LPG Storage Tank Customer's Request
LPG Filling Medium:
Liquefied Petroleum Gas Propane
Tank Capacity:
5m3 10m3 20m3 30m3 40m3 50m3 60m3 80m3 100m3
Product Brief
20m3 LPG Skid Tank 20000Liters LPG Storage Tank 10ton LPG Tank For Sale LPG Tank Technical Parameters: Nozzle dataCharactersSizePressure(MPa)ConnectJunction surfacePurposeaDN5025HG20592-WNRFDrain outletbDN8025HG20592-WNRFLiquid phase outletc1-2DN5025HG20592-WNRFGaseous phase balanced outletdDN8025HG...
Product Description
20m3 LPG Skid Tank 20000Liters LPG Storage Tank 10ton LPG Tank For Sale
LPG Tank Technical Parameters:
| Nozzle data | |||||||||||
| Characters | Size | Pressure(MPa) | Connect | Junction surface | Purpose | ||||||
| a | DN50 | 25 | HG20592-WN | RF | Drain outlet | ||||||
| b | DN80 | 25 | HG20592-WN | RF | Liquid phase outlet | ||||||
| c1-2 | DN50 | 25 | HG20592-WN | RF | Gaseous phase balanced outlet | ||||||
| d | DN80 | 25 | HG20592-WN | RF | Liquid inlet | ||||||
| e | M33*2 | Screw-thread | Thermometer connection | ||||||||
| f1-2 | DN25 | 25 | HG20592-WN | RF | Lever gauge connection | ||||||
| g | M20*1.5 | Screw-thread | Pressure Gage | ||||||||
| h | DN80 | 25 | HG20592-WN | RF | Safety valve connection | ||||||
| i | DN50 | 25 | HG20592-WN | RF | Emptying mouth | ||||||
| j | DN450 | 25 | HG20592-WN | FM | Manhole | ||||||
| Parameter of 20cbm 10tons LPG Storage Tank | |||||||||||
| ITEM | PARAMETER | ITEM | PARAMETER | ||||||||
| Volume | 20M3 10Ton | Thickness of Shell | 12mm | ||||||||
| Tank Material | Carbon Steel Q345R | Thickness of End plate | 12mm | ||||||||
| Overall Size | 6154*2124*2714mm | Tank Net Weight | 5050kg | ||||||||
| Tank Diameter | 2100mm | Loading Capacity | 7980kg | ||||||||
| Design Pressure | 1.77Mpa | Gas Density | 500~590kg/M3 | ||||||||
| Hydraulic Test Pressure | 2.22Mpa | Corrosion Allowance | 1mm | ||||||||
| Design Temperature | -20℃~50℃ | Heat Treatment | Bulk | ||||||||
| Vapor Outlet | DN50 | Gas Outlet | DN50 | ||||||||
| Designed Life time | 15 years | ||||||||||
| Extra SET for Accessories like follows (If you needed) | |||||||||||
| Model | Item | Qty | Junction surface | ||||||||
| J41N-2.5-50 | Stop Valve DN50 | 6 | RF | ||||||||
| J41N-2.5-25 | Stop Valve DN25 | 2 | RF | ||||||||
| J41N-2.5-80 | Stop Valve DN80 | 1 | RF | ||||||||
| J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | |||||||||
| HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF | ||||||||
| A42F-25-100 | Safety Valve DN80 | 1 | RF | ||||||||
| Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | |||||||||
| WTQ-280 | Thermometer M33*2 2.5 degree | 1 | -40℃~60℃ | ||||||||

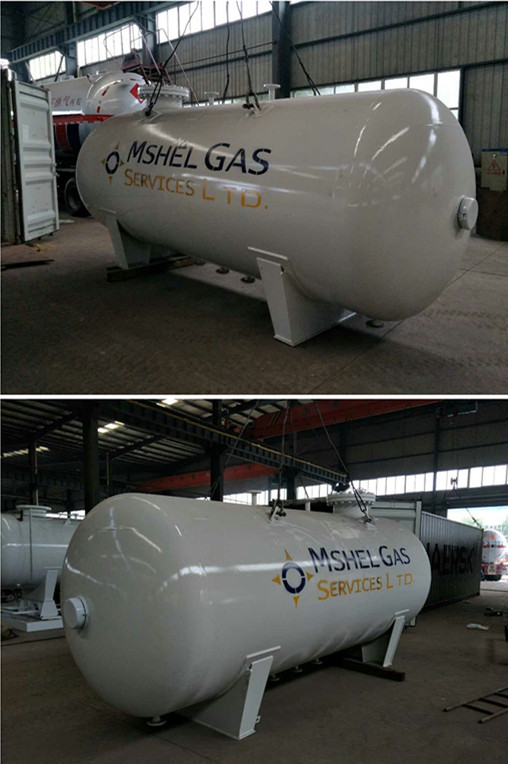

LPG Tank Manufacture Progress:
Describe For LPG Storage Tank:
Liquefied petroleum gas(LPG)storage tank with compressed gas or liquefied gas storage tanks.
Sitong promises the top quality of every set of machine and best after-sales service as followings:
(A) The boiler body guarantee is two years , for accessories three years
(B) During the guarantee period , if the main body defective or broken without wrong operating ,
Sitong must replace the parts for free or prepare the spare-parts for free.
(C) Sitong should provide boiler technical service and operation guidance for whole life long.
(D) Regarding to the installation and training , the buyer should take all thecorrelative charges
(accommodation and food , round -trip tickets)
