| Product Name: | HOWO Garbage Compactor Truck, Compressed Garbage Truck | Horse Power: | 290HP, 336HP, 371HP |
|---|---|---|---|
| Volume Capacity: | 16m3, 18m3, 20m3; 16CBM, 18CBM, 20CBM | Loading Capacity: | 8 Tons, 9ton, 10 T, 12 Tons, 13 Tons, 15 Tons. |
| Driving Type: | Right Hand Drive, & Left Hand Drive | Warranty: | One Year Warranty For Axle, Transmission, Engine |
| Truck Brand For Optional: | HOWO, Dongfeng, FAW, Shacman, Foton Etc | Other Warranty: | Spare Parts Supplied By Cost Price |
| Type: | Rear Loader Hydraulic System | Drive Model: | HOWO 4*2, 6X4, 8X4 Garbage Compactor |

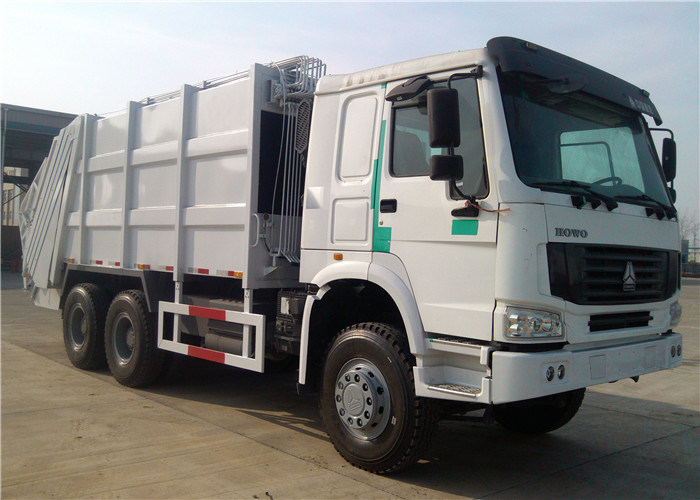

HOWO 10 wheeler Rear Loader 20CBM 20M3 Compactor Compressed compression Garbage Truck
Garbage Compactor truck is the machinery of choice for door to door collection of waste. The collected waste is simultaneously
compacted and eventually transported to the dumping site. Compactors have multiple benefits over conventional waste trolleys namely: Waste is covered and there is no chance of "spillage" of waste during transportation. Continuous compaction allows more waste to be stuffed onto a truck which reduces the number of round trips to the dumping site. This results in significant fuel saving. Waste collected inside the compactor is pushed out of the container through a hydraulically powered Ejection Plate. Two men are required to perform the entire functionality of the compactor namely, driver and operator.
The parameter for Sinotruk HOWO 6x4 290hp 20m3 Garbage Compactor Truck:
| Item No. | Parameters |
| Overall Dimension | 10890x2496x3270 mm |
| Gross Vehicle Weight | 33000 kg |
| Curb weight | 13650 kg |
| Loading capacity | 16000-20000 kg |
| Wheel Base | 4600+1350 |
| Front axle loading capacity | HF9, 1x9000 kg |
| Rear axle loading capacity | ST16, 2x16000 kg |
| Max Driving Speed | 75 km/h |
| Engine | WD615.87, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Engine horsepower | 290 HP |
| Emission Standard | Euro II |
| Displacement | 9.726L |
| Gear Box | HW19710, 10 Forwards gear & 2 reverse gear |
| Steering Gear | ZF 8098, power steering, hydraulic steering with power assistance |
| Clutch | Reinforced diaphragm clutch, diameter 430mm |
| Fuel Tank | 400L Aluminum alloy fuel tank |
| Cabin | HOWO 76 Standard Cab, LHD, Left Hand Drive; Two seats with 1 sleeper, with air conditioner, 70° hydraulically tillable to the front. |
| Tire | 12R22.5 Tubeless Tire , 10 pieces with one spare |
| Brake |
Service brake: dual circuit compressed air brake Parking brake: spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
| Equipment |
1. Garbage body: 20m3. 2,Equipped with hermetic dustbin, hydraulic system and operating system 3, Automatic compress and uninstall, sewage can be collected by the dump tank. 4. Cycling time＜14--18s 5. With dual or single hydraulic bin lifter
|
Features:
1. Domestic advanced chassis and international advanced arm assembly, of which mature technology, stable and reliable working status.
2. Garbage bin can be apart from truck, one truck can work with multiple bins which lessen the vehicle’s configuration, improve transport efficiency and reduce operation cost.
3.The coordinated garbage compression cabinet door could be opened and closed with the power from the vehicle itself, which is reliable and practical.
4. In the hydraulic system, a plurality of interlocking devices and explosion-proof valve to ensure that the cars working, loading and unloading process safety.
5.Hook arm system adopts slider type structure, the hook is easy to fit, the maintenance is simple and bin loading and unloading height limit is low.
6.Adopting roller to support truck and make it stable, when loading and unloading the cabinet, the oil cylinder will push roller down to the ground, which effectively prevent upwarp of truck and make operation more secure.
small garbage compactor truck with Detachable Carriage for sale
