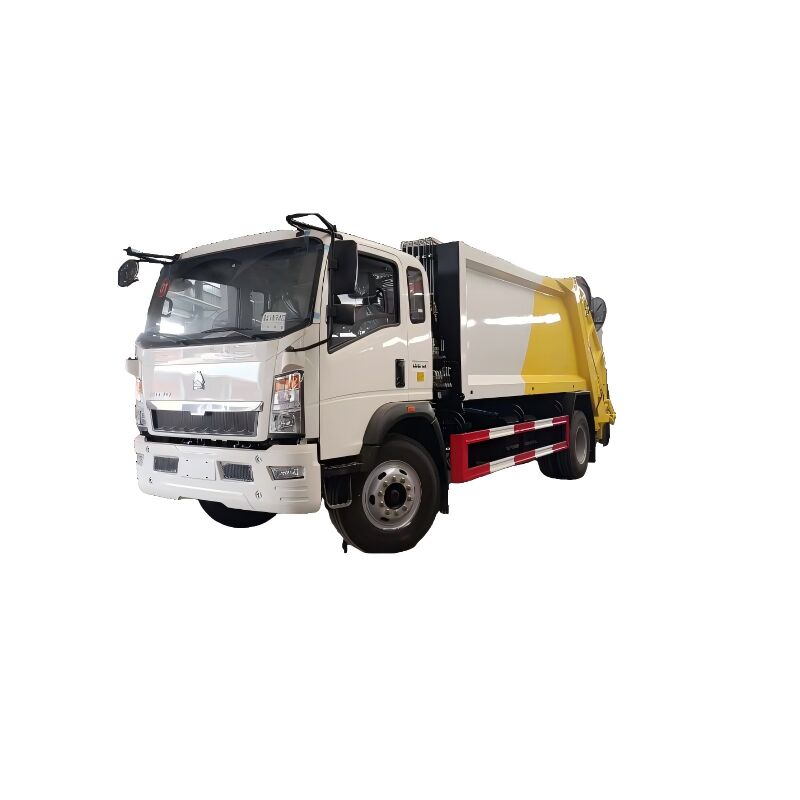

HOWO 4X2 8m3 Garbage Compactor Truck 5tons Waste Collector Truck Compressed Garbage Truck
Product Details
HOWO 4X2 garbage compactor truck
,8m3 waste collector truck
,5tons compressed garbage truck
Sinotruk HOWO 4x2 5T 8M3 garbage compactor truck, Sinotruk HOWO 6-wheel 8M3 garbage compactor truck 5T compactor garbage trucks for sale
Garbage Compactor truck is the machinery of choice for door to door collection of waste. The collected waste is simultaneously
compacted and eventually transported to the dumping site. Compactors have multiple benefits over conventional waste trolleys namely: Waste is covered and there is no chance of "spillage" of waste during transportation. Continuous compaction allows more waste to be stuffed onto a truck which reduces the number of round trips to the dumping site. This results in significant fuel saving. Waste collected inside the compactor is pushed out of the container through a hydraulically powered Ejection Plate. Two men are required to perform the entire functionality of the compactor namely, driver and operator.
| Cabin | Driving type 4x2 | ||
| 2080 Standard cab, with three seats, with A/C. Right Hand Driven. 70°hydraulically tillable to the front as attached photo for ref. | |||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 8000x2450x3100 | |
| Wheel base (mm) | 4500 | ||
| Wheel track (front/rear) (mm) | 1798/1764 | ||
| Approach/Departure angle(°) | 27/20 | ||
| Weight in KGS | Tare Weight | 6400 | |
| Loading Capacity | 5000 | ||
| Front axles loading capacity | 1x3200 | ||
| Rear axles loading capacity | 1x8200 | ||
| Max. driving speed(km/h) | 90 | ||
| Engine | Brand | YUCHAI | |
| Model | YC4E140-20 | ||
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
| Horse Power(HP) | 140 HP | ||
| Emission standard | Euro Ⅱ | ||
| Gearbox | WLY6T51 , 6 forwards &1 reverse | ||
| Clutch | Diaphragm spring clutch | ||
| Steering Gear | Power steering | ||
| Fuel tank (L) | 230 L | ||
| Tire | 8.25R20 All radial tires with one spare, 7 pieces | ||
| Compression garbage box body system | |||
| Body Volume | 8 CBM | ||
| Cycle Time of Filling(S) | ≤40 | ||
| Lifting Time of Filler(S) | 8-10 | ||
| Time of Discharging | ≤60 | ||
| Working Pressure(MPA) | 16 | ||
| Composed by hermetic garbage tank, hydraulic system, operation system. The entire truck is hermetic, can automatically compress and dump the garbage .and the sewage generated in the process of the compression all go into the sewage tank. | |||
we are professional garbage compactor trucks manufacturer with various capacities depending on the type of truck chassis and user requirement.garbage compactor truck is composed of sealed compartments, hydraulic system and the operating system. The vehicle is fully sealed, compressed and dumping automizedly. The waste water in the process of compacting, is all flowing into the water dustbin. And that throughly solve the secondary pollution in the process of waste transportation issues, to avoid the inconvenience to people. The key parts of the vehicle adopt imported components,high pressure, good sealing, convenient operation, safety and so on. The vehicle can choose to equip the hanging barrels flip machanism or reverse garbage bucket.
More Pictures for Garbage Compactor Truck, Compression Garbage Truck:
Our Service:
1. Factory Supply:
one of the biggest special purpose truck manufacturers in china,
more than 300 kinds of special truck for your choice.
2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.
3. Good Quality: with ISO CCC BV certification
Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,
passed the ISO9001-2008 and the 3C (China Compulsory Certification),
our brand is china famous brand with good reputation in the market.
4. Best Service: 24-hour hotline and email.
