Product Details:
Payment & Shipping Terms:
|
| Cabin: | With Or Without Sleeper Bed, Air Conditioner | Engine Horse Power: | 290HP, 336HP, 371HP, 420HP. |
|---|---|---|---|
| Product Name: | 8x4 Tipper Truck | Drive Type: | Heavy Duty Right Hand Drive, Or Left Hand Drive |
| Drive Model: | 4X2 6 Wheels, 6X4 10 Wheels, 8X4 12 Wheels | Tipper Type: | Front Tipping, Or Middle Tipping, T-Type |
| Hydraulic System: | Chinese Famous Brand, Or Hyva Brand | Tipper Body: | 7300*2300*1500mm, As Customer's Requirement |
| Loading Capacity: | 40 Ton, 45 Tons, 50 Ton Etc, Heavy Duty Type | Other Brand: | Dongfeng, HOWO, Foton, Beiben, Shacman, FAW |
| High Light: | tipper semi trailer,semi dump trailers |
||

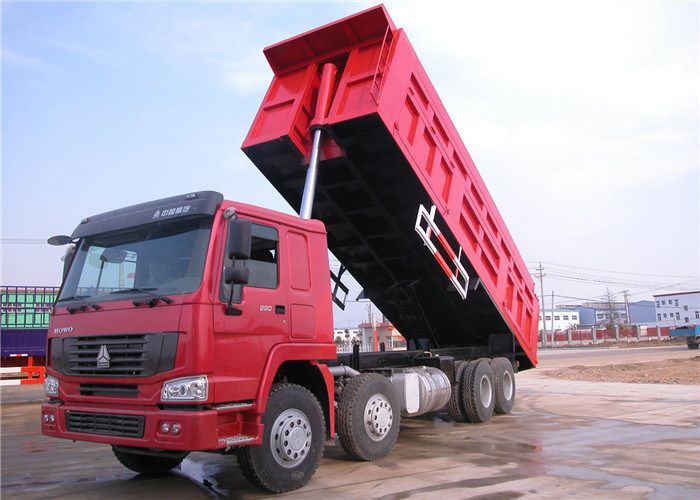

Heavy Duty Sino truck HOWO 12 wheeler 40t tipper truck 50 tons dump truck , Heavy duty Sinotruck HOWO 8x4 371hp dumper truck 40 tons tipper truck 50T dump truck, 12 Wheels HOWO 8x4 Dumper Truck 25M3 - 30M3 40 Ton Tipper Truck Dump Truck
Product features:
1, This vehicle mainly used in construction, deliver construction material, such as ash, stone, earth etc. Our product fully passed ISO9001-2000 international quality system and 3C authentication.
2, Engine, Sinotruk WD615.47, 371HP or WD.615.87, 290HP / WD615.69, 336HP, D12.42, 420HP. German Man technology.
3, T-type pr Front tipper. Tipper body: Square shape or U-shape.
4, Tipper body: 25cbm to 30cbm, heavy duty load capacity: 40ton to 50 ton
Floor thickness: 4mm to 8mm, Side wall whickness: 3mm to 6mm for customers' different use
5, Hydraulic system: HYVA brand or Chinese famous brand.
Dump truck, also called tipper truck, which mainly use for transporting cargo,sand,or garbage.
Currently the dump truck are most off road dump truck, another kind is articulated dump truck.
Dump truck design 4*2.4*4.6*2.6*4.6*6.8*4.8*6.8*8. road dump truck, mine dump truck.
Our company produce the dump truck with the loading capacity from 3 tons ~ 40 tons.
| Cabin | Driving type , 8x4, Left hand drive. | |
| HW76 standard cab, with one sleeper bed and A/C, 70°hydraulically tillable to the front as attached photo for ref. | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 10245×2496×3386 |
| Wheel base (mm) | 1800+3500+1350 | |
| Wheel track (front/rear) (mm) | 2020/1800 | |
| Approach/Departure angle(°) | 19/18 | |
| Weight in KGS | Tare Weight | 14860 |
| Rated payload | 36000 | |
| Front axles loading capacity | HF9 2x9000 | |
| Rear axles loading capacity | AC16 2x16000 | |
| Max. driving speed(km/h) | 80 | |
| Engine | Brand | Sinotruk |
| Model | WD615.47 | |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 371hp | |
| Emission standard | Euro Ⅱ | |
| Gearbox | HW19710, 10 Forwards gear & 2 reverse gear | |
| Clutch | Reinforced diaphragm clutch, diameter 430mm | |
| Steering Gear | ZF 8098,power steering, hydraulic steering with power assistance | |
| Fuel tank (L) | 400 | |
| Tire | 12R22.5 Tubless Tire, 13 pieces including one spare | |
| Brakes |
Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
|
|
Dump / Tipper Body.
|
Thickness |
Side | 6mm in high tensile strength steel Q345/B |
| Front | 6mm in high tensile strength steel Q345/B | |
| Bottom | 8mm in high tensile strength steel Q345/B | |
| Dump body Size | (L x W x H) | 7300mm x 2300mm x 1500mm |
|
Tipping hydraulics |
Tipping type | front tipping type |
| Tipping system | Complete set of HYVA brand hydraulics system |
