Sanitation Truck
Created with Pixso. Dongfeng 4x2 6cbm Arm Lift Garbage Container for Commercial Waste Collection
Detail Information
Place of Origin:
China
Certification:
CCC/ISO
Drive Type:
4x2
Drive Model:
LHD, RHD
Loading Capacity:
5cbm
Material:
Q235 Carbon Steel
Emission Standard:
Euro 3
Color And Logo:
Optional
Packaging Details:
Naked
Supply Ability:
500 units/month
Product Description

A Skip Loader Garbage Truck, also known as a Swing Arm Garbage Truck, is a specialized waste collection vehicle equipped with a hydraulic swing arm system used for loading, transporting, unloading, and dumping garbage containers or skip bins. The truck lifts the garbage container onto the chassis through hydraulic arms and transports it to disposal or transfer stations efficiently.

It is widely used for municipal waste collection, construction waste transportation, industrial refuse handling, and community sanitation services.

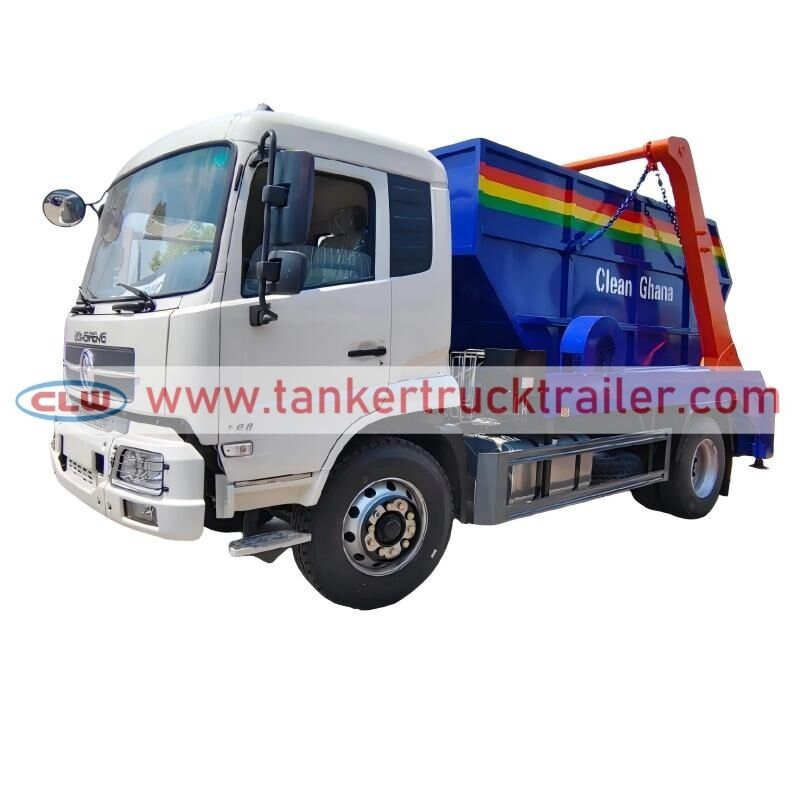

Dongfeng 6CBM Skip Loader Garbage Truck is a compact waste collection vehicle built on a Dongfeng chassis and equipped with a hydraulic swing arm loading system and a 6 cubic meter garbage container. It is mainly used for collecting, transporting, and unloading domestic waste, construction debris, and industrial refuse in urban streets, residential areas, factories, and rural sanitation projects.

The vehicle uses hydraulic swing arms to lift and place the skip bin onto the truck chassis quickly and efficiently. One truck can be matched with multiple garbage bins to improve waste collection efficiency and reduce operating costs.


Truck Specification
Product Name Dongfeng 4x2 6cbm Arm Lift Garbage Container for Commercial Waste Collection
Truck Manufacturer CLW GROUP
Overall dimensions (L×W×H) About 6000x2500x3200mm
Chassis Specification
Cabin Dongfeng, LHD, A/C
Drive type 4*2
Wheelbase 3300m
Fuel type of engine Diesel
Maximum horse power of engine 120hp
Number of cylinders of engine 4
Emission standard of engine Euro 3
Gear box type 5 forward & 1 rear
Tyres Size 7.00R20
Quantity of tyres  6+1 spare tire
Upper Body specification
Loading Capacity 6CBM
Material Q235 Carbon steel
  Tilts containers vertically (up to 70° angle) for waste discharge.
Loading height: 3-4 meters
Unloading time＜50s
Color and logo can be optional

Color and logo can be optional

I Feature

Dongfeng 4x2 6cbm Arm Lift Garbage Container for Commercial Waste Collection

  • Hydraulic Arm Loading System. The hydraulic arm allows the operator to load and unload the waste container without using a separate lifting machine.
  • Detachable Waste Container. The garbage container can be separated from the truck and left at the collection site while the truck transports another full container.
  • Suitable for Different Waste Applications. Depending on the container design, the truck can be used for municipal solid waste, construction waste, industrial waste, bulky waste and other general waste transportation.
  • Simple Loading and Unloading Operation. The hydraulic system handles the main container-loading operation, reducing manual handling and making daily waste collection more efficient.
  • One Truck, Multiple Containers. Operators can leave empty containers at different locations and collect them when they are full, helping reduce unnecessary trips.

I Advantage

  • Less Manual Labor. Most of the container loading and unloading work is operated hydraulically from the truck, reducing manual handling during daily waste collection.
  • Suitable for Temporary Waste Sites. Detachable containers can be placed at construction sites, factories, warehouses, markets and temporary waste collection points and collected when they are full.
  • Lower Equipment Investment. One truck can serve multiple garbage containers, greatly improving vehicle utilization and reducing transportation costs.
  • Easy to Match Different Chassis. The arm roll system can be installed on different truck chassis according to the required payload, container capacity, road conditions and budget, including HOWO, Shacman and Foton.
  • Faster Container Exchange. The hydraulic arm loads and unloads the container directly, reducing the need for manual handling or additional loading equipment. This helps shorten the time spent at each collection site.
