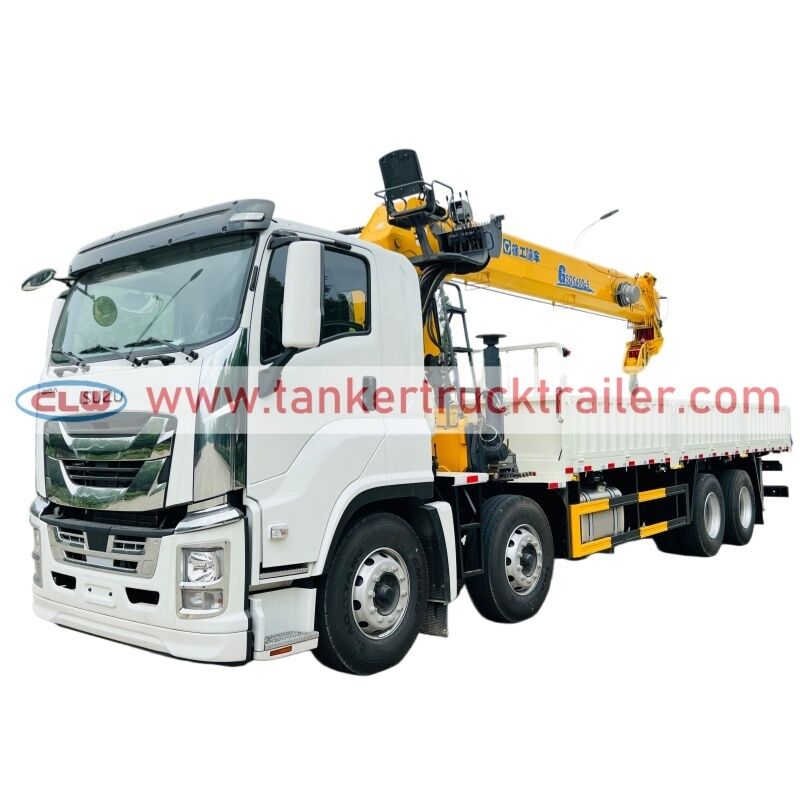

ISUZU 8x4 16TON Straight Boom Crane Truck for Engineering Projects

Brand Name:	ISUZU
Model Number:	CLWDT2026147
MOQ:	1 unit
Price:	$42000~$65000 /unit
Delivery Time:	35~45 working days
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CCC / ISO901 / GCC

Condition:

100% New

Driving Model:

LHD, RHD

Driving Type:

8X4

Horse Power:

460HP

Max Lifting Capacity:

16TON

Logo And Color:

Optional

Packaging Details:

Naked

Supply Ability:

500 units/month

Highlight:

Engineering Crane Truck

ISUZU Crane Truck

16TON Crane Truck

Product Description

A Truck Mounted Crane, also known as a Crane Truck, Lorry Crane, or Loader Crane, is a specialized vehicle that combines a cargo truck with a hydraulic lifting crane. It is designed to perform lifting, loading, unloading, and transportation tasks using a single vehicle, improving operational efficiency and reducing labor and equipment costs.

The ISUZU 8×4 16Tons Truck Mounted Crane is a multifunctional engineering vehicle that combines cargo transportation and lifting operations in a single unit. Built on a heavy-duty ISUZU 8×4 chassis and equipped with a 16-ton hydraulic crane, it is designed for loading, unloading, lifting, and transporting heavy materials and equipment efficiently.
Featuring a powerful engine, robust chassis structure, and advanced hydraulic lifting system, the vehicle offers excellent lifting performance, operational flexibility, and transportation capability. It is widely used in construction projects, mining operations, logistics, power engineering, municipal works, and industrial equipment installation.

Truck Specification
Product Name	ISUZU 8x4 16TON Straight Boom Crane Truck for Engineering Projects
Truck Manufacturer	CLW GROUP
Overall dimensions (L×W×H)	About 12000 × 2500 × 3350mm
Chassis Specification
Cabin	ISUZU GIGA, LHD, A/C
Drive type	8*4
Wheelbase	2100 + 4325 + 1370mm
Fuel type of engine	Diesel
Maximum horse power of engine	460hp
Number of cylinders of engine	6
Emission standard of engine	Euro 6
Gear box type	12 forward & 2 rear
Tyres Size	315/80R22.5
Quantity of tyres	12+1 spare tire
Upper Body Specification
Max Lifting Capacity	16TON
Cargo Body Size	8500 × 2450 × 600 mm
Function	Equipped with hydraulic H-Type outriggers
	Equipped with hydraulic manual control / remote control optional
	XCMG / SANY / Chinese brane crane optional
	Equipped with straight boom
	Logo and color can be customized

I Feature

Equipped with a high-performance hydraulic crane for efficient loading and unloading operations.
Combines lifting and cargo transportation functions in a single vehicle.
Flexible operation in construction sites, industrial areas, and remote locations.
Available with telescopic boom or knuckle boom crane configurations.
Durable heavy-duty chassis designed for demanding working conditions.

I Advantage

Lifting and Transportation in One Vehicle – Combines cargo transport and crane operations, improving efficiency and reducing equipment requirements.
Versatile Applications – Suitable for construction projects, logistics, mining operations, power line installation, municipal engineering, and industrial maintenance.
Reduced Operating Costs – Eliminates the need for separate trucks and cranes, lowering labor, fuel, and maintenance expenses.
Strong Lifting Performance – Provides reliable lifting capacity, wide working radius, and excellent lifting height for various applications.
High Working Efficiency – Enables fast loading, unloading, lifting, and transportation of materials and equipment.
