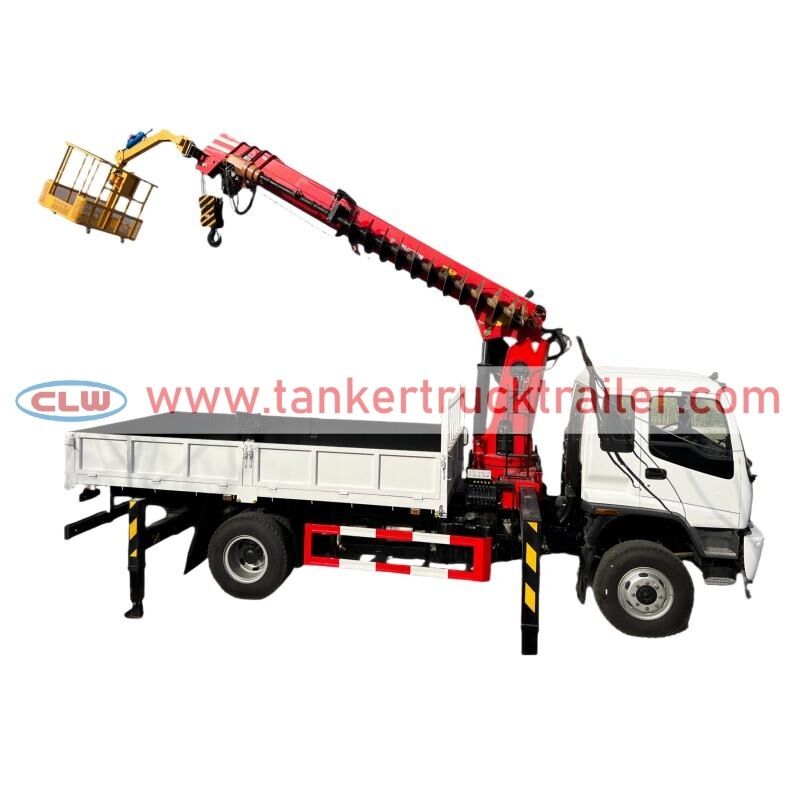

10 Ton ISUZU Crane Truck with Auger Drill for Construction Work

Brand Name:	ISUZU
Model Number:	CLWDT26-180
MOQ:	1 UNIT
Price:	$29000-$40000/unit
Delivery Time:	35-45 working days
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CCC/ISO

Max Lifting Height:

14–18 M

Lifting Capacity:

10ton

Drive Type:

4x4

Drive Model:

LHD/RHD

Condition:

100% New Condition

Logo And Color:

Optional

Packaging Details:

Naked

Supply Ability:

500units/month

Product Description

A Truck Mounted Crane with Auger Drill is a multifunctional engineering vehicle that combines a hydraulic truck-mounted crane and a hydraulic auger drilling system on a single truck chassis. It is designed for lifting, transporting, drilling, and pole installation operations, making it an ideal solution for utility construction, telecommunications, power line projects, municipal engineering, and infrastructure development.
The vehicle is equipped with a hydraulic telescopic crane, earth auger attachment, hydraulic outriggers, and a power take-off (PTO) driven hydraulic system. It can perform hole drilling and lifting operations efficiently without the need for separate drilling and lifting equipment.

Isuzu 10 Ton Truck Mounted Crane with Auger Drill is a multifunctional engineering vehicle built on an Isuzu Motors truck chassis and equipped with a 10-ton hydraulic truck-mounted crane and a hydraulic auger drilling system. The vehicle combines lifting, transporting, drilling, and pole installation functions in one unit, making it ideal for utility construction, power transmission projects, telecommunications, municipal engineering, and infrastructure development.

Truck Specification
Product Name	10 Ton ISUZU Crane Truck with Auger Drill for Construction Work
Truck Manufacturer	CLW GROUP
Overall dimensions (L×W×H)	About 8500x2500x3500mm
Chassis Specification
Cabin	ISUZU, LHD, A/C
Drive type	4*2
Wheelbase	4200m
Fuel type of engine	Diesel
Maximum horse power of engine	205hp
Number of cylinders of engine	4
Emission standard of engine	Euro 6
Gear box type	6 forward & 1 rear
Tyres Size	10.00R20
Quantity of tyres	6+1 spare tire
Upper Body Specification
Lifting Capacity	10ton
Max Lifting Height	14–18 m
Function	Equipped with Hydraulic Control
	Equipped with auger drilli, depth is 3-10m
	Equipped with 10ton straight arm crane
	Color and logo can be optional
	Logo and color can be customized

I Feature

10 Ton ISUZU Crane Truck with Auger Drill for Construction Work 0

Combines a hydraulic truck-mounted crane and an auger drilling system on one vehicle platform.
Equipped with a high-performance hydraulic telescopic crane for lifting and material handling operations.
Hydraulic earth auger attachment enables fast and efficient hole drilling for foundations and pole installation.
PTO-driven hydraulic system provides reliable power for both lifting and drilling functions.
Multiple auger sizes available to meet different drilling diameter and depth requirements.

I Advantage

Combines lifting, drilling, and transportation functions in one vehicle, reducing the need for multiple machines on site.
Reduces labor costs, equipment rental costs, and transportation expenses.
Improves construction efficiency by completing hole drilling and pole installation with a single piece of equipment.
Hydraulic auger system provides fast and efficient drilling in various soil conditions.
PTO-driven hydraulic system ensures stable, reliable, and continuous operation.
