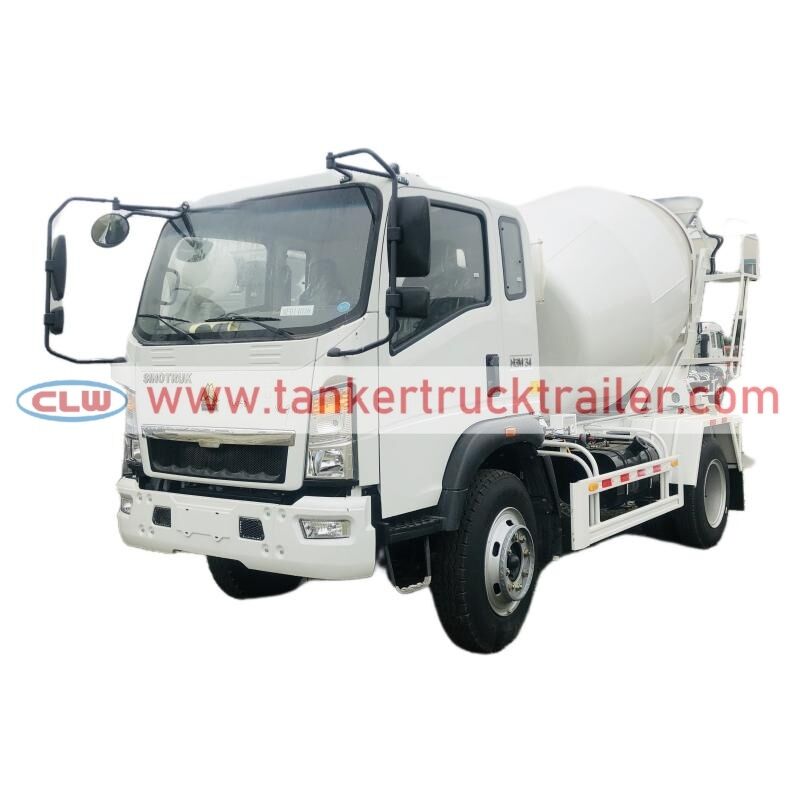

HOWO 4X2 5CBM Concrete Mixing Vehicle for Road Construction

Brand Name:	HOWO
Model Number:	CLWDT26-159
MOQ:	1 UNIT
Price:	$30000-$39000/unit
Delivery Time:	35-45 working days
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CCC/ISO

Drive Type:

4x2

Drive Model:

LHD/RHD

Loading Capacity:

5CBM

Tank Material:

Q345

Hydraulic Pump And Motor:

Chinese Brand Or Italy Brand

Logo And Color:

Optional

Packaging Details:

Naked

Supply Ability:

500 units/month

Highlight:

HOWO Concrete Mixing Vehicle

5CBM Concrete Mixing Vehicle

Road Construction Concrete Mixing Vehicle

Product Description

A Concrete Mixer Truck, also known as a Cement Mixer Truck or Transit Mixer Truck, is a specialized construction vehicle designed for transporting and continuously mixing concrete from batching plants to construction sites. The vehicle is equipped with a rotating mixing drum driven by a hydraulic system to keep the concrete uniformly mixed and prevent solidification during transportation.

Concrete mixer trucks are widely used in construction projects, road building, bridge engineering, tunnel construction, and infrastructure development for delivering ready-mix concrete efficiently and safely.

HOWO 5CBM Concrete Mixer Truck is a compact construction vehicle and designed for transporting and continuously mixing ready-mix concrete. The vehicle is equipped with a 3 cubic meter rotating mixing drum driven by a hydraulic system to keep the concrete evenly mixed and prevent solidification during transportation.

Truck Specification
Product Name	HOWO 4X2 5CBM Concrete Mixing Vehicle for Road Construction
Truck Manufacturer	CLW GROUP
Overall dimensions (L×W×H)	About 6600x2300x3000mm
Chassis Specification
Cabin	HOWO, LHD, A/C
Drive type	4*2
Wheelbase	3800mm
Fuel type of engine	Diesel
Maximum horse power of engine	180hp
Number of cylinders of engine	4
Emission standard of engine	Euro 2
Gear box type	6 forward &1 rear
Tyres Size	9.00R20
Quantity of tyres	6+1 spare tire
Upper Body specification
Loading capacity	5cbm
Tank material	Q345
Function	Filling speed (M3/min) ≥ 2.8
	Unloading speed (M3/min)≥ 1.2
	Discharge reside rat( %)≤ 0.5
	Chinese brand hydraulic pump and motor
	Logo and color can be customized

I Feature

Equipped with a hydraulic rotating mixing drum system for continuous concrete mixing during transportation.
Prevents concrete segregation and solidification, ensuring stable concrete quality upon delivery.
Durable wear-resistant mixing drum made of high-strength steel for long service life.
Efficient feeding and discharge system improves loading and unloading efficiency.
Optimized drum blade design provides uniform concrete mixing performance.

I Advantage

Continuous drum rotation keeps concrete uniformly mixed and prevents solidification during transportation.
Improves construction efficiency by delivering ready-mix concrete directly to job sites.
Reduces manual mixing labor and improves overall concrete quality consistency.
Reliable hydraulic system ensures stable drum operation and efficient concrete discharge.
Suitable for short and long-distance concrete transportation projects.
