2 Axles 28tons 28m3 Sludge Vacuum Trailer for Wastewater Treatment

Brand Name:	FUWA/BPW
Model Number:	CLWDT2026022
MOQ:	1 unit
Price:	$15000~$35000 /unit
Delivery Time:	35~45 working days
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CCC / ISO901 / GCC

Condition:

100% New

Axles:

2/3/4 Axles

Loading Capacity:

28m3

Material:

Carbon Steel

Thickness:

8mm

Equipment:

Roots Pump, Fan, Auxiliary Engine, Sewage Pipe, Etc

Packaging Details:

Naked

Supply Ability:

500 units/month

Highlight:

28tons Sludge Vacuum Trailer

Wastewater Treatment Sludge Vacuum Trailer

2 Axles Sludge Vacuum Trailer

Product Description

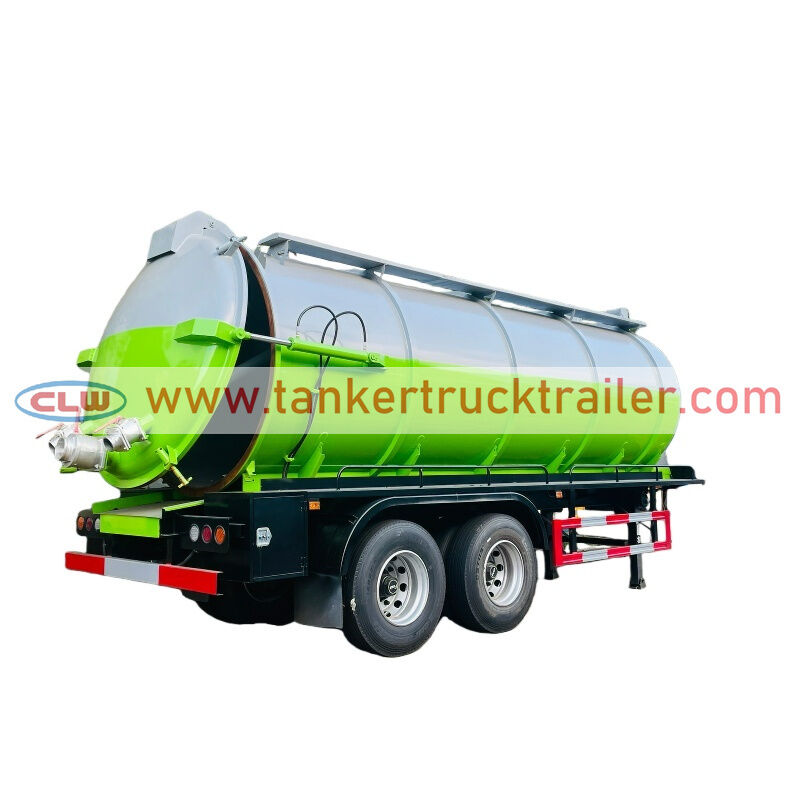

A Vacuum Sewage Semi-Trailer is a specialized semi-trailer equipped with a vacuum pumping system and storage tank designed for the collection, transportation, and discharge of sewage, sludge, wastewater, and other liquid or semi-liquid waste materials. It is widely used in municipal sanitation, industrial cleaning, septic tank maintenance, and environmental service operations.

This chemical tank truck adopts FUWA chassis, 28000Liters high tension steel tank, Roots pump, Roots fan, auxiliary engine, sewage pipe, outlet, security system, viewing window, alarm lights, etc. to meet the needs of different users.

Truck Specification
Product Name	28000Liters Vacuum Sewage Semi Trailer
Truck Manufacturer	CLW GROUP
Overall dimensions (L×W×H)	About 1199525503700mm
Chassis Specification
Drive type	2 Axles
Wheelbase	4770+1310 mm
Tyres Size	12.00R20
Quantity of tyres	8+1 spare tire
Upper Body Specification
Tank Capacity	28 M3 / 28000Liters /28CBM Vacuum Sewage Semi Trailer
Loading Medium	Sewage, sludge, wastewater, and other liquid or semi-liquid waste materials
Tank Material	Q235 high tension steel
Thickness	8mm
Corrosion Allowance	2.0mm
Suction Range	8m (vertical direction), 50m (parallel direction)
Max Vacuum Degree	~80 Kpa
Vacuum Pressure	2 Bar
Function	Equipped with Roots pump
	Equipped with fan, outlet
	Equipped with Roots auxiliary engine
	Equipped with sewage pipe
	Equipped with security system

I Feature

2 Axles 28tons 28m3 Sludge Vacuum Trailer for Wastewater Treatment 0

High-Capacity Tank Design. Equipped with a large-volume storage tank for efficient collection and transportation of sewage, sludge, wastewater, and liquid waste materials.
Powerful Vacuum Pump System. Uses a high-performance vacuum pump to provide strong suction capability for fast and efficient waste collection.
Durable and Corrosion-Resistant Structure. Manufactured with high-strength steel or corrosion-resistant materials to withstand harsh working environments and extend service life.
Efficient Loading and Discharge System. Features hydraulic or pneumatic discharge systems for quick unloading and improved operational efficiency.
Leak-Proof and Sealed Tank Construction. Designed with airtight sealing technology to prevent leakage, odor emission, and environmental contamination during transportation.
Versatile Application Range. Suitable for municipal sanitation, septic tank cleaning, industrial waste collection, wastewater treatment plants, and environmental maintenance operations.
Heavy-Duty Chassis Compatibility. Designed for long-distance transportation and heavy-load operations with excellent stability and durability.
Easy Operation and Maintenance. Equipped with user-friendly control systems and accessible maintenance components for convenient operation and servicing.
Enhanced Safety Features. Includes pressure protection systems, overflow prevention devices, emergency shut-off mechanisms, and other safety controls.
Customizable Configuration Options. Available with different tank capacities, pump specifications, compartment designs, and discharge methods to meet various operational requirements.

I Advantage

Large Waste Transportation Capacity. The semi-trailer design allows for a larger tank capacity, enabling efficient transportation of large volumes of sewage, sludge, and wastewater.

High Operational Efficiency. Equipped with a powerful vacuum pumping system for rapid suction, loading, and unloading, significantly improving work efficiency.

Reduced Transportation Costs. High-capacity operation reduces the number of trips required, helping lower fuel consumption, labor costs, and overall operating expenses.

Strong Suction Performance. Capable of handling thick sludge, liquid waste, industrial wastewater, and other difficult materials efficiently.

Wide Range of Applications. Suitable for municipal sanitation, industrial cleaning, septic tank maintenance, wastewater treatment plants, and environmental protection projects.

Improved Environmental Protection. The sealed tank structure helps prevent leakage, odor emission, and secondary pollution during transportation and discharge operations.

Durable and Long Service Life. Constructed with high-strength and corrosion-resistant materials to withstand harsh operating conditions and heavy-duty use.

Enhanced Safety and Reliability. Equipped with safety protection systems such as pressure relief devices, overflow prevention systems, and emergency controls.

Flexible and Customizable Design. Can be customized with different tank sizes, vacuum pump capacities, discharge systems, and compartment configurations according to operational needs.

Suitable for Long-Distance and Heavy-Duty Operations. Semi-trailer structure provides better load distribution and stability, making it ideal for large-scale and long-distance waste transportation tasks.
