Product Details:
Payment & Shipping Terms:
|
| Product Name: | 3 Ton 4 Tons 5 Tons Refrigerated Box Van Truck | Freezer Brand: | Thermo King, Hanxue, Korea Brand USA Carrier Etc |
|---|---|---|---|
| Applications: | Used For Freezer Food, Fruit, Beer, Fish, Vegetable | Emission Standardruck: | Euro II |
| Truck Drive Wheel: | 6 Wheels , 6 Wheeler | Material Type: | 8cm Middle Polyfoam Insulation |
| Body Material: | Strong Fiberglass Inner And Outer Wall | Truck Brand: | FOTON , 6 Wheels Refrigerator Van Truck |
| Drive Type: | Right Hand Drive, Or Left Hand Drive | ||
| High Light: | freezer box truck,refrigerated van truck |
||

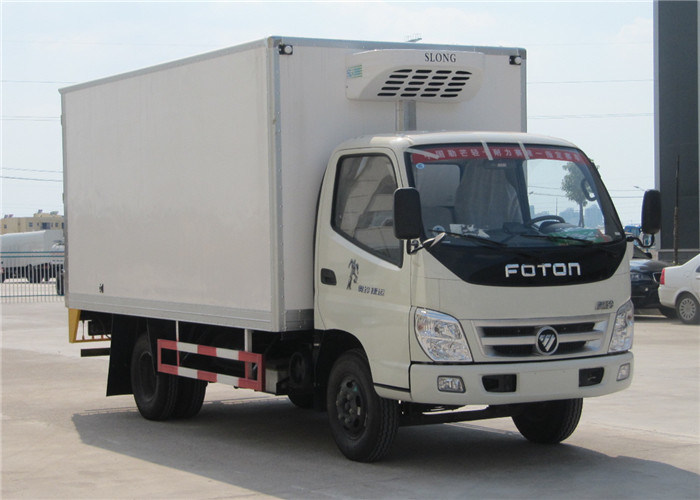

FOTON 6 Wheels small Refrigerated Box Truck , 3 Tons Refrigerator Freezer Truck
Refrigerator Trcuk also called ice truck, insulated car, van, explosion-proof cars, refrigerated trucks, refrigerated trucks is mainly used for fruits, seafood, milk and other perishable, perishable, easy fermentation long-distance transportation of goods.
Insulated truck body Main Characters:
Light in weight: 40% lighter than metal body.
Better insulation: K value less than 0.3w/m2k.
High in strength and long life: 5 times longer than metal body.
Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.
Easy to assembly and repair at site.
Technical Specifications for FOTON 6 Wheels small Refrigerated Box Van Truck 3 Tons Refrigerator Freezer Truck:
| Cabin | Driving type 4x2 Right Hand Drive, or Left Hand drive | |
| Have heater, 2 seats. With air conditioner | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 5995×2020×2330 |
| Wheel base (mm) | 3360 | |
| Wheel track (front/rear) (mm) | 1085/ 1550 | |
| Approach/Departure angle(°) | 21/17 | |
| Weight in KGS | Tare Weight (kg) | 2910 |
| Payload (kg) | 4000 | |
| Front axles loading capacity(kg) | 1x1700 | |
| Rear axles loading capacity(kg) | 1x2795 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Brand | FOTON |
| Model | 4J28TC3 | |
| Type | 4-stroke direct injection , 4-cylinder | |
| Horse Power(HP) | 110 | |
| Emission standard | Euro III, 2771ml | |
| Refrigerating System |
1, Box Size: 4100×1970×1200(mm) 2,Box Material, glass epoxy in the surface, foam in the middle , thickness is 80mm 3, Working temperature is minus 18 centi degree. 4. USA Carrier brand Non-Independent refrigeration unit. 5, Rear door open |
|
Introduction:
Refrigerated truck is a closed van used to transport the frozen or fresh goods, it is also a kind of special transportation vehicle equipped with refrigeration device and polyurethane thermal insulation box.
Applications:
It is often used to transport frozen food, dairy products, fruits and vegetables, vaccine and drug.
Detailed pictures for reference:
The inner Refrigerator:
