| Item Name: | Vacuum Road Sweeper Truck | Capacity Of Water: | 2000l |
|---|---|---|---|
| Capacity Of Dustbin: | 4000L | Driving Type: | 4x2, Left Hand Drive/ Right Hand Drive |
| Cab: | Flat Roof Cab, 2 Seats | Chassis Brand: | Foton SINOTRUK HOWO Shacman JAC JMC Dongfeng |
| Material Of The Tank: | Carbon Steel Or Stainless Steel | Function: | Road / Street Sweeping And Cleaning |
| Highlight: | broom sweeper truck,road cleaning truck |
||
2018 New Four Brooms Shacman Clean Road Vacuum Street Sweeper Truck
Description of vacuum road sweeper truck:
1. Hihg quality
2. Combinated the function of cleaing & sweeping, avoid the secondary pollution;
3. Hydraulic pump and hydraulic valve imported from German, Italy, etc , stable and reliable, service lift long
4. Main electronic components come from France
5. sweeping system is driven by the vice engine, don't affect the truck own power
Application:
1. The Road Sweeper Truck is suitable for cleaning of urban roads, highways, plazas, airports, docks, mechanical cleaning, cleaning, spraying and dust suppression.
2. Sweeper truck as one of the sanitation equipment,it's a new type of high efficiency sweeping equipment , with the functions of road surface cleaning, garbage collection and transportation.
Features:
Brand: Shacman
Other brand available: Dongfeng, HOWO, FORLAND, SHACMAN, FAW etc.
Capacity of water: 500L / 1000L
Capacity of dustbin: 2500L / 3000L / 3500L
Driving type: 4x2 left hand drive / right hand drive
Ohter type: 4x2, 6x4, 8x4 ,
Other volume: 4000L, 5000L, 8000L, 10000L, 12000L
Material of the tank: carbon steel / Stainless steel
Advantage:
1. High quality
2. Dry type sweeping and wet type sweeping
3. The water spraying nozzle could be adjusted
4. 1 year waranty for engine, axle and gearbox
parameters of 2018 New Four Brooms Shacman Clean Road Vacuum Street Sweeper Truck
| Environmental Shacman Brand 4x2 Road Washing Truck | ||
| General | Vehicle Brand | CSC |
| Chassis Brand | Shacman brand | |
| Overall Dimension | 8200 x 2500 x 3200 mm | |
| GVW / Kerb Weight | 16,000 kg / 11,280 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Cummins Engine (American brand) | |
| Power | 180 Ps (132 KW) | |
| Displacement | 5900 ml | |
| Emission Standard | Euro III | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | 6-Speed front ,1 reverse | |
| Wheelbase/No. of axle | 4500 mm / 2 | |
| Tyre Specification | 9.00-20 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Dry Trash Dustbin | 6 CBM |
| Wet Trash Dustbin | 2 CBM | |
| Dustbin Material | Stainless Steel | |
| Cleaning Speed | 3-25 km / h | |
| Cleaning Capacity | 45,000 - 90,000 m2 /h | |
| Max. Diameter of Particle | 110 mm | |
| No. of Dust Filter | 14 | |
| Diameter Brush | 835 mm | |
| Auxiliary Engine | Cummins engine ( American Brand ) 170 HP (125KW), super powerful |
|
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual…… | ||
| Optional | Backup alarm can be equipped. Camera can be equipped. Air blower can be of stainless steel. |
|
Service:
1. Factory direct supply: reliable quality and fast delivery.
2. Warranty:From the date of receiving, in normal use within 30000km or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs.
3. Tracking service: lifelong.
4. Chassis question: When the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station.
5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.
6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.
7.After-sale ServiceOne year warranty Any small question will be solved at the most prompt time. We also offer relative technical support. Our spare parts will be available at any time after your order.
8.Supply Capacity
We manufacture the truck as soon as your order comes. And for the stock, we can delivery it immediately.
For more details, please just feel free to contact me.
FAQ:
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok .But we need take apart the truck. You should reinstall in your country.
Q: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q: I want to be your agent in my country , is that ok?
A: its ok, if your quantity is big, we will consider. For the first time 50 units is ok.
Q: I want the front two tires are bias tire and the rear 9 tires are radial tires, is it ok?
A: We can make the tires as your requirement to suit your country's need.

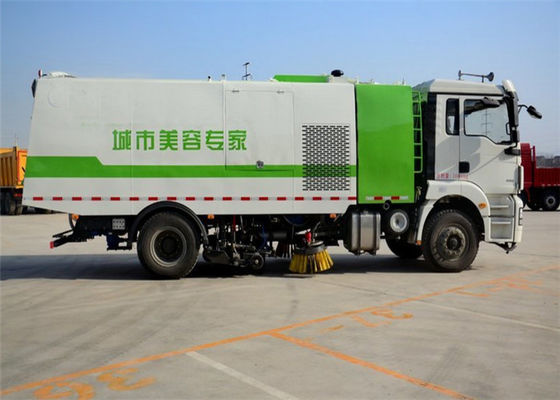

Photos of road sweeper truck:
