Product Details:
Payment & Shipping Terms:
|
| Axle Brand: | BPW, FUWA, L1, HJ Etc | Suspension: | Mechanical Suspension(leaf Spring), Or Air Bag. |
|---|---|---|---|
| Tank Material: | Q345R, Q370R, 16MnDR Carbon Steel | Tank Volume: | 30M3, 40M3, 42M3, 45M3, 50M3, 55M3, 60M3 |
| Landing Gear: | JOST Brand 28Ton | Tire: | 12R22.5 Tubeless Tire With One Spare |
| Application: | Liquid Petroleum Gas Transport, Pressure Vessel | NO. Of Axle: | 2 Axles, 3 Axles, 4 Axles |
| Key Parts: | Loading / Unloading Valves, Manhole, Safety Valve, Emergency Valve Etc | Loading Capacity: | 15Ton, 20Ton, 25Tons, 30Tons. |
| High Light: | gas tank trailer,milk tanker truck |
||
A. Advantage:
1. Axles coule be BPW or FUWA, with first axle liftable;
2. Suspension to be air suspension;
3. Tyre could be Double Coin brand;
4. Volume as per your requirement.

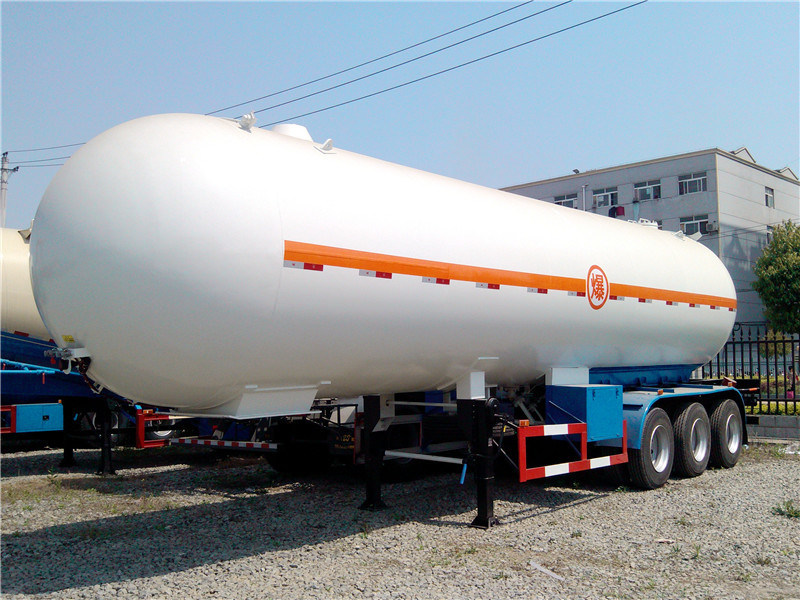

| Tanker Essential Information | |
| Volume of Tank (cbm) | 50cbm (50000 Liters) |
| Overall Dimensions(L*W*H)(mm) | 12840*2500*3975 |
| Tank Dimensions(Inner Diameter*thickness*Length) | 2300*12*12454 |
| Estimated Tare Weight (kg) | 15300 |
| Payload(kg) | 25000 |
| Total Weight(kg) | 40300 |
| Wheelbase(mm) | 6800+1310+1310 |
| Shell of Tanker | |
| Products | Liquefied Petroleum Gas (propane) |
| Fluid Property | Flammable |
| Design Temperature(℃) | 50℃ |
| Design Pressure(MPa) | 1.61 |
| Corrosion Allowance(mm) | 1.00 |
| Weld Joint Factor | 1 |
| Major Materials of Bearing Pressure | Tanker body:Q345R, 12mm |
| End plate: Q345R, 12mm , double ellipse | |
| Main beam:16Mn | |
| Detection | |
| Heat Treatment | Overall treatment in a furnace,600℃ to 640 ℃ |
| Flaw Detection | 100% Flaw detection |
| Hydraulic Test(MPa) | 2.1 |
| Manhole (As Customer’s Requirement) | |
| Quantity | 1;on top,DN450 |
| Safety Valve(As Customer’s Requirement) | |
| Quantity | 2 |
| Location | On the top of tanker |
| Size | DN50 or As Customer’s Requirement |
|
Level Gauge 3*13T Fuwa |
|
| Type | Manuel Operation type |
| Location | At the rear of the end plate |
| Running System | |
| Axles | 3*13T FUWA brand |
| Tire | 12R22.5 Tubeless tire , 13 including one spare tire |
| Landing leg | JOST |
| King Pin | #50 or #90 |
| Control System | |
| Emergency Cut-off Valves | 2 |
| Ball Valve | 2 |
| Liquid Gauge | 1 |
| Pressure Indicating Thermometer | 1 |
| Pressure Gage | 1 |
| Accessories | |
| Tool Box | 2 |
| Wheel Carrier | 1 |
| Fire Extinguisher | 2 |
| Fender | 6 |
| Paint | As Customer’s Requirement |
| Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels | |
Our factory is a professional manufacturer for LPG tank truck, LPG trailer, LPG storage tank in China.
1. Our biggest capacity of LPG tank truck is 35.5cbm;
2. Our biggest capacity of LPG trailer is 58.16cbm;
3. the LPG storage tank is from 5cbm to 200cbm.
Our producing factory:
20cbm LPG TANK:
50-200CBM LPG tank:
56.14Cbm LPG tanker semitrailer:
23.7CBM LPG TANKER SEMITRAILER:
Double axles 47cbm LPG tanker semitrailer
we manufacture equipments for LPG STORAGE TANK FROM 20CBM T0 200cbm , LPG SEMITRIALER, LPG ROAD TANKER, LPG SEMITRAILER TRANSPORT TANKS AND SO ON.
Detailed Equipment for LPG tank trailer:
Wire Line Protect pipe spare tire holder Frame shape
Tools box and tire protect Kingpin valve protect box.
frame and body connector spring suspension rear bumper
