2 Axle 40000L 40M3 20 Ton LPG Gas Tank Trailer, 56M3 LPG Tank Trailer Semi
2 Axle 40000L 40M3 20 Ton LPG Gas Tank Trailer, 56M3 LPG Tank Trailer Semi
Properti Dasar
Sertifikat
CCC, ISO9001
Model Produk
CSC007
Properti Perdagangan
MOQ
1
Patokan harga
Could be negotiated.
sedang mengemas
Telanjang atau Wax sebelum pengiriman
jangka waktu pengiriman
25-30 hari setelah menerima deposit
Metode Pembayaran
L/C, T/T, Western Union, MoneyGram
Kapasitas Pasokan
100 Unit per bulan
Detail Produk
Menyoroti:
truk tangki kecil
,trailer tangki bensin
Axle Brand:
BPW, FUWA, L1, HJ dll
Suspension:
Suspensi mekanis, atau kantung udara.
Tank Material:
Baja Karbon Q345R, Q370R, 16MnDR
Tank Volume:
30M3, 40M3, 42M3, 45M3, 50M3, 55M3, 60M3
Landing Gear:
JOST merek 28Ton
Tire:
12R22.5 ban tubeless dengan satu cadangan
Application:
Pengangkutan Gas Petroleum Cair, Pressure Vessel
NO. Of Axle:
2 gandar, 3 gandar, 4 gandar
Key Parts:
Memuat / membongkar katup, manhole, katup pengaman, katup darurat dll
Loading Capacity:
15Ton, 20Ton, 25Tons, 30Tons.
Ringkasan produk
2 axle 40000L 40M3 40000Liters LPG tangki transportasi trailer 20 ton LPG tank semi trailer, 15 ton 20ton, 25ton, 30ton LPG gas tank trailer, 2 axle 40000L 40M3 20T LPG tangki transportasi trailer 40M3 LPG tank semi trailer A. Keuntungan: 1. Gandar coule menjadi BPW atau FUWA, dengan gandar pertama ...
Deskripsi Produk
2 axle 40000L 40M3 40000Liters LPG tangki transportasi trailer 20 ton LPG tank semi trailer, 15 ton 20ton, 25ton, 30ton LPG gas tank trailer, 2 axle 40000L 40M3 20T LPG tangki transportasi trailer 40M3 LPG tank semi trailer
A. Keuntungan:
1. Gandar coule menjadi BPW atau FUWA, dengan gandar pertama dapat diangkat;
2. Suspensi menjadi suspensi udara;
3. Ban bisa menjadi merek Double Coin;
4. Volume sesuai kebutuhan Anda.
| Informasi Penting Tanker | |
| Volume Tangki (cbm) | 40 |
| Dimensi Keseluruhan (L * W * H) (mm) | 11324 * 2500 * 3730 |
| Dimensi tangki (Diameter dalam * Tebal * Panjang) | 2200 * 12 * 11044 |
| Perkiraan Berat Tare (kg) | 13415 |
| Muatan (kg) | 20250 |
| Total Berat (kg) | 33665 |
| Wheelbase (mm) | 6720 + 1320 |
| Shell of Tanker | |
| Produk | Liquefied Petroleum Gas (propane) |
| Properti Cairan | Mudah terbakar |
| Suhu Desain (℃) | 50 ℃ |
| Tekanan Desain (MPa) | 1.61 |
| Tunjangan Korosi (mm) | 1,00 |
| Weld Joint Factor | 1 |
| Material Utama dari Tekanan Bearing | Tubuh tanker: Q345R, 12mm, |
| Pelat akhir: Q345R, 12mm, elips ganda | |
| Balok utama: 16Mn | |
| Deteksi | |
| Perawatan panas | Perawatan keseluruhan dalam tungku, 600 ℃ hingga 640 ℃ |
| Deteksi cacat | Deteksi cacat 100% |
| Tes Hidraulik (MPa) | 2.1 |
| Manhole (Sesuai Kebutuhan Pelanggan) | |
| Kuantitas | 1; di atas, DN450 |
| Safety Valve (Sesuai Kebutuhan Pelanggan) | |
| Kuantitas | 2 |
| Lokasi | Di atas kapal tanker |
| Ukuran | DN50 atau Sesuai Kebutuhan Pelanggan |
Pengukur Level | |
| Mengetik | Tipe Manuel Opertion |
| Lokasi | Di bagian belakang pelat akhir |
| Sistem Berjalan | |
| Gandar | 2 * 13T BPW |
| Ban | 12R22.5 Ban tidak berbentuk, 9 termasuk satu ban serep |
| Kaki pendaratan | JOST |
| King Pin | # 50 atau # 90 |
| Sistem pengaturan | |
| Emergency Cut-off Valves | 2 |
| Katup bola | 2 |
| Pengukur Cair | 1 |
| Termometer Pengukur Tekanan | 1 |
| Pengukur Tekanan | 1 |
| Aksesoris | |
| Kotak Alat | 2 |
| Pengangkut Roda | 1 |
| Pemadam Api | 2 |
| Spatbor | 6 |
| Cat | Sebagai Kebutuhan Pelanggan |
| Standar: bejana tekan , Peraturan Pengawasan Teknologi Keselamatan untuk Kapal Tekanan Stasioner | |
Gambar dari
L

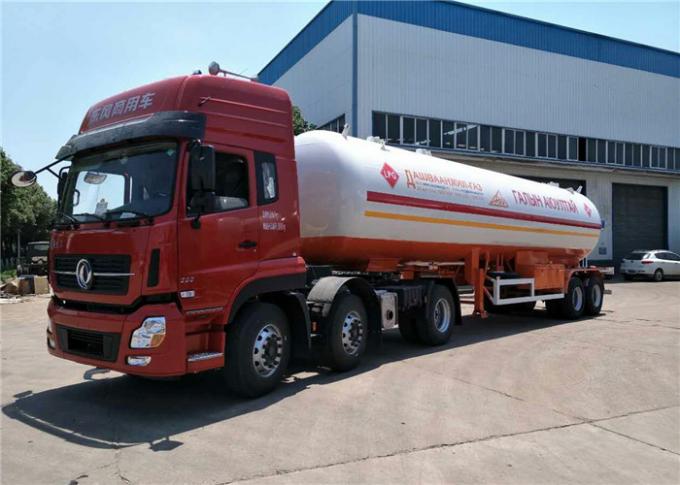

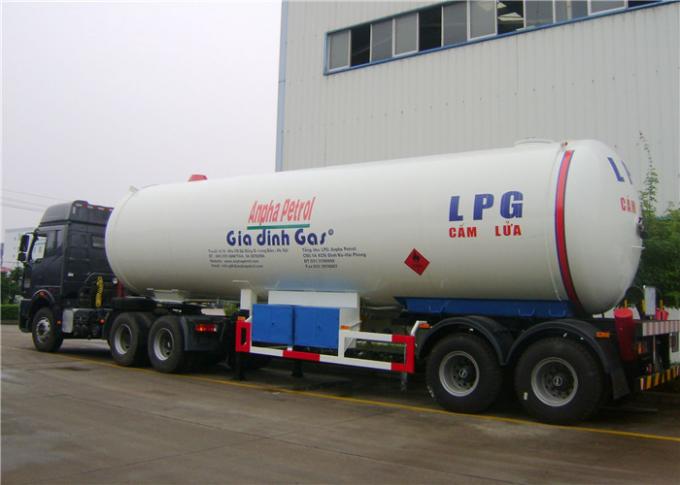

2 axle 40.5M3 40500Liter tangki gas LPG semi trailer yang diekspor ke Vietnam.

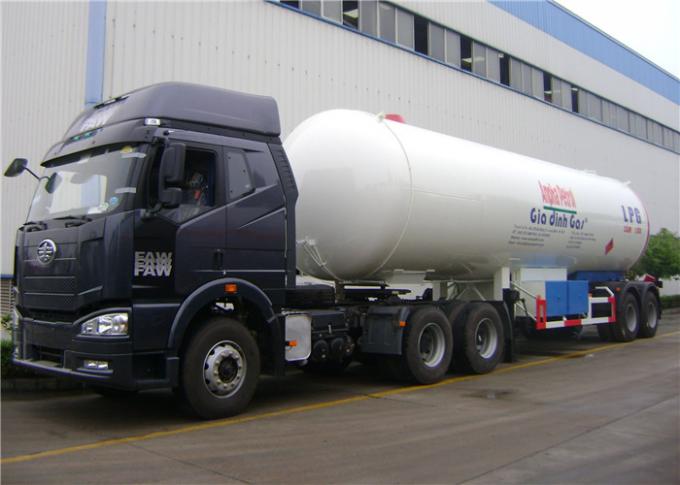

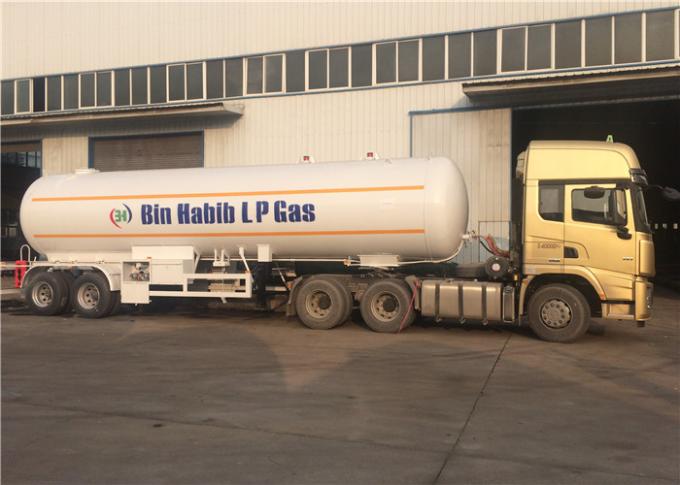

2 axle 40.5M3 40500Liter tangki gas LPG semi trailer yang diekspor ke Bangladesh.

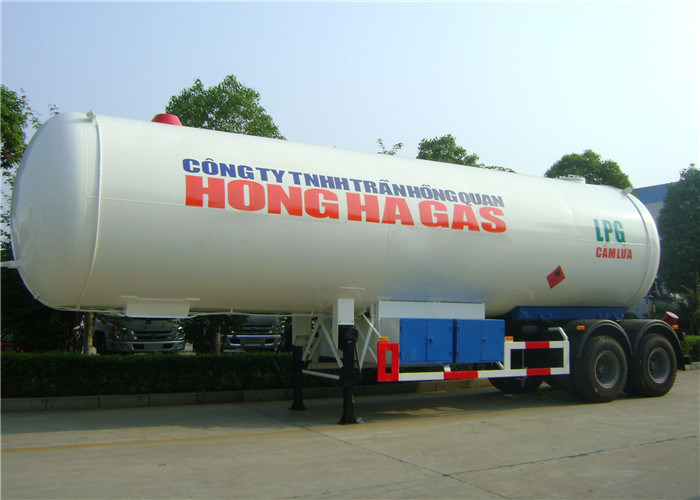

2 axle 40.5cbm 40500L 40000L tanker gas LPG semi trailer yang diekspor ke Mongolia.
