|Product Name:||Refrigerated Delivery Van||Freezer Brand:||Thermo King, Hanxue, Korea Brand Etc|
|Applications:||Used For Freezer Food, Fruit, Beer, Fish, Vege||Emission Standardruck:||Euro II|
|Truck Drive Wheel:||4*2 4*4 6*2 6*4 6*6 8*4 8*6||Material Type:||8cm Middle Polyfoam Insulation|
|Body Material:||Strong Fiberglass Inner And Outer Wall||Truck Brand:||Dongfeng FAW Foton Sinotruk JAC Isuzu|
freezer box truck,
refrigerated van truck

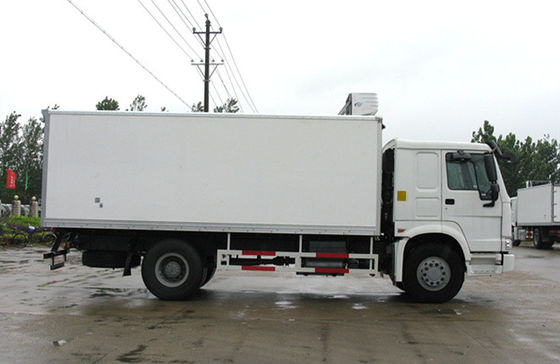

SINOTRUK Howo 4x2 5Tons Refrigerated Box Truck Freezer Truck Refrigerator Truck For Sale
|Overall Dimension||6995x2310x2570 mm|
|Gross Vehicle Weight||7345kg|
|Front/rear Tread||1120/2075 mm|
|Gearbox||LC5T26, 5 speed, manual control.|
|Engine||4DX22-110, Diesel Engine, 4 in-line cylinder|
|Engine horsepower||108HP EURO II|
|Displacement||3.66 L (Diesel)|
|Full loading Fuel
|Maximum 215 g/kW.h|
|Max Driving Speed||90 km/h|
|Cabin||2 Passenger allowed|
|Tire||8.25-16 LT (7 pieces)|
|Body Material||Strong Fiberglass Inner and Outer Wall,
with 8cm Middle Polyfoam Insulation.
|Refrigerator||High Quality Hanxue Refrigerator, Lowest Cooling Temperature negative 18 centi-degree (negative 608 Fahrenheit degree)|
|LOGO||Company Logo or any advertisement can be printed on the carriage body according to the customer's design. (same as showed in last photo)|
Refrigerator Trcuk also called ice truck, insulated car, van, explosion-proof cars, refrigerated trucks, refrigerated trucks is mainly used for fruits, seafood, milk and other perishable, perishable, easy fermentation long-distance transportation of goods.
Insulated truck body Main Characters:
Light in weight: 40% lighter than metal body.
Better insulation: K value less than 0.3w/m2k.
High in strength and long life: 5 times longer than metal body.
Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.
Easy to assembly and repair at site.
Refrigerated truck is a closed van used to transport the frozen or fresh goods, it is also a kind of special transportation vehicle equipped with refrigeration device and polyurethane thermal insulation box.
It is often used to transport frozen food, dairy products, fruits and vegetables, vaccine and drug.
The advantages of Insulated/Freezer Van Body:
1. It is made of GRP and PU foam with all-closed structure that the GRP (Glass Reinforced Plastic Fiber) outside and PU foam in the core.
2. Light in weight: 40% lighter than metal body.
3. Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.
4. The panel used for the truck body was constructed in type of sandwich. The thermal insulation layer is 50-80mm thick, which offers a very good thermal insulation performance.
5. Length of Cargo body: 10-40 inch; Capacity of Cargo body: 5-70CBM. The material of the cargo body is optional according to which kinds of goods the truck transport, with perfect heat preservation, box open model: Rear double-open or Side-open.
6. Refrigeration unit Brand Optioanl: American CARRIER, THERMO KING. South Korea hanya. China Songhan,hanxue, etc. The Temperature range can be 0° C ~ -20° C. The refrigeration units that we select have simple structure, convenient operation, reliable working, low energy consumption, large refrigerating capacity, small noise,easy installation and maintenance and other advantages.
Refrigeration Truck Materials:
Different refrigerated truck payload we can do:
