Mobile Concrete Mixer Truck 4x2 6 Wheels 6m3 Cement Mixer Drum For Sinotruk

China Mobile Concrete Mixer Truck 4x2 6 Wheels 6m3 Cement Mixer Drum For Sinotruk supplier
Mobile Concrete Mixer Truck 4x2 6 Wheels 6m3 Cement Mixer Drum For Sinotruk supplier Mobile Concrete Mixer Truck 4x2 6 Wheels 6m3 Cement Mixer Drum For Sinotruk supplier Mobile Concrete Mixer Truck 4x2 6 Wheels 6m3 Cement Mixer Drum For Sinotruk supplier

Large Image :  Mobile Concrete Mixer Truck 4x2 6 Wheels 6m3 Cement Mixer Drum For Sinotruk

Product Details:

Certification: CCC, ISO9001, TS16949
Model Number: CS1047C3414B110

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: waxed before shipping
Delivery Time: 25-30 work days after receiving the deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 50000 Unit/Year
Detailed Product Description
Item Name: Ready Mixer Concrete Truck Volume: 3M3, 4M3, 5m3, 6m3
Driving Model: LHD, Left Hand Drive; RHD Right Hand Drive. Driving Type Available: 4x2 6 Wheels, 6x4 10 Wheels, 8x4 12 Wheels
Chassis Brand: Dongfeng, HOWO, SHACMAN, JAC, JMC, FAW, FORLAND Etc Emission Standard: Euro-2 Or Euro-3
Color: As Customer's Requirement Water Supply: Compressed Air Model
Hydraulic System: Chinese Famous Brand Motor & Pump Speed Reducer: Chinese Famous Brand Speed Reducer
Highlight:

concrete cement mixer truck

,

concrete agitator truck

Sinotruk 6CBM Concrete Mixer Truck Sinotruk 4x2 6M3 Concrete Mixer Truck





As a manufacturer of concrete mixer truck, we have 3m3 to 14m3 concrete mixer truck. The chasis is decided by the customer.DFAC Dongfeng 4X2 5M3 Concrete Mixer Truck 5 Cubic Meters Concrete Mixer Truck.



The concrete mixer truck also called concrete mixing truck, mixing concrete truck, concrete mix truck,cement mixing truck,etc.Our concrete mixer truck is mainly used in cement mixing station, construction field

and other place.It is can loading and unloading by itself. After discharging the concrete, the mixer drum will be

cleaning automatically by its water suppling system.



Concrete Mixer Truck Technical Parameters:


Product name small mini concrete mixer truck dongfeng 4x2 cocrete mixer truck 4cbm for sale
Tank volume 4~5CBM Chassis model EQ1140GLJ
Overall dimension(mm) 6650×2460×3300 Brand name Dongfeng
Gross weight(Kg) 14950 Wheelbase(mm) 3600
Payload(Kg) 8770 Drive type 4*2
Curb weight(Kg) 5980 Fuel type diesel
Axle No. 2 Emission standard Euro 2/Euro 3/Euro 4/Euro 5
Cab seats(person) 3 Transmission 5-speed
Approach/departure angle(°) 22/20 Tires No. 6
Axle load (Kg) 5050/9900 Tire specification 8.25-20
Front/rear hang(mm) 1180/2070 Max speed(km/h) 90
Front/Rear track(mm) 1810/1800 Steel spring number 9/11+8
Engine parameters
Engine model Engine manufacturer Displacement (ml) power(kw)
YC4D140-45 Guangxi yuchai machinery co., LTD 4214 103
Chassis Description 1.Dongfeng dulika 4x2 chassis,single row with left/right hand drive optional.
2.3.6m wheelbase,140HP yuchai Engine,5-speed transmission, front brige 2.7T/ rear brige 7T, 8.25-16 tire.
3.Steam brake and Power steering.
Standard Equipment

1.Tank valume:4~5CBM; ellipse tanker material: carbon stee Q345,seal head 6mm thickness, tank material 5mm thickness.

2.Equipped with Italy reducer, imported hydraulic motor, Germany hydraulic pump,Water supplying system or with heavy gear reducer, domestic radiator and so on.

3. Water supplying system could supply water and wash the inner body.

4. material let-in:3m3/minute, let-out:2m3/minute; rate of rest<1%; speed of leaf: 20 round/minute.

Optional Equipment

We can make the concrete mixer truck according to customer's requests with the optional equipments below:

1. Control system in cabin, so you could be operated inside or outside of the cabin.

2. Emergency shutdown device

3. GPS

4. Visual operating system,

5. Imported or Domestic or joint venture parts.

Please advise us in advance if you have any special requests for the concrete mixer truck, we can equip various kinds optional equipments for you.

Purposes Concrete mixer truck is used for transporting ready-mixed concrete in construction site;The truck is equipped with cylinder type agitator tank for concrete after mixed.The agitator tank will always keep rotation in the process of transportation, to ensure concrete in tank will not set.We usually rinse mixing barrel inside after carrying the concrete,to prevent hardened concrete taking up space.
Product advantage

1. Tank high strength,stable center of gravity,transporting safety.

2. Best Quality with competitive price.

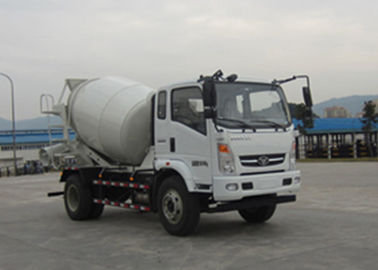

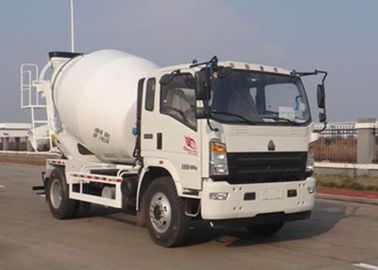

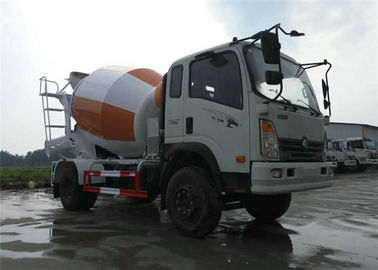

The detailed Pictures of Concrete Mixer Truck, Cement Truck:



Mobile Concrete Mixer Truck 4x2 6 Wheels 6m3 Cement Mixer Drum For Sinotruk

Mobile Concrete Mixer Truck 4x2 6 Wheels 6m3 Cement Mixer Drum For Sinotruk

Mobile Concrete Mixer Truck 4x2 6 Wheels 6m3 Cement Mixer Drum For Sinotruk
