DFAC Small Refrigerated Van Truck Fast Food Cooling Van Body ISO 9001 Approved

We received your trucks, and are very happy with the quality

—— Grace Arndt

I received the fuel tanker trailers, I am very pleased with the quality. Very good product

—— Hans Boehner

I'm Online Chat Now

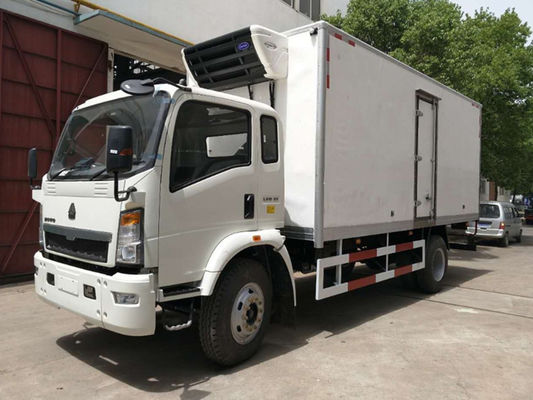

DFAC Small Refrigerated Van Truck Fast Food Cooling Van Body ISO 9001 Approved

China DFAC Small Refrigerated Van Truck Fast Food Cooling Van Body ISO 9001 Approved supplier
DFAC Small Refrigerated Van Truck Fast Food Cooling Van Body ISO 9001 Approved supplier DFAC Small Refrigerated Van Truck Fast Food Cooling Van Body ISO 9001 Approved supplier DFAC Small Refrigerated Van Truck Fast Food Cooling Van Body ISO 9001 Approved supplier DFAC Small Refrigerated Van Truck Fast Food Cooling Van Body ISO 9001 Approved supplier

Large Image :  DFAC Small Refrigerated Van Truck Fast Food Cooling Van Body ISO 9001 Approved

Product Details:

Certification: ISO CCC ISO9001
Model Number: ZZ1047C3414B145

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: USD12000~18000/Unit
Packaging Details: Nake Package Used RO-RO Ship Container Ship
Delivery Time: 15-20 work days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 50000 units per year
Detailed Product Description
Product Name: Refrigerated Delivery Truck Freezer Brand: Thermo King, Hanxue, Korea Brand Etc
Applications: Used For Freezer Food, Fruit, Beer, Fish Emission Standardruck: Euro II
Truck Drive Wheel: 4*2 4*4 6*2 6*4 6*6 8*4 8*6 Material Type: 8cm Middle Polyfoam Insulation
Body Material: Strong Fiberglass Inner And Outer Wall Truck Brand: Dongfeng FAW Foton Sinotruk JAC Isuzu
High Light:

refrigerated delivery truck

,

freezer box truck

DFAC New Type Refrigeration Van Truck Fast Food Cooling Truck Refrigerated Truck

Technical Specifications

Item No. Parameters
Overall Dimension 6995x2310x2570 mm
Gross Vehicle Weight 7345kg
Curb Weight 3550kg
Loading Weight 4895Kg
Wheel Base 3800mm
Front/rear Tread 1120/2075 mm
Approach/Departure Angle 21/20degree
Front Axle 2850kg
Rear Axle 4645kg
Gearbox LC5T26, 5 speed, manual control.
Engine 4DX22-110, Diesel Engine, 4 in-line cylinder
Engine horsepower 108HP EURO II
Displacement 3.66 L (Diesel)
Full loading Fuel
Consumption Rate
Maximum 215 g/kW.h
Max Driving Speed 90 km/h
Cabin 2 Passenger allowed
Tire 8.25-16 LT (7 pieces)
Carriage Body
Size: 5100x2100x1400mm
Body Material Strong Fiberglass Inner and Outer Wall,
with 8cm Middle Polyfoam Insulation.
Refrigerator High Quality Hanxue Refrigerator, Lowest Cooling Temperature negative 18 centi-degree (negative 608 Fahrenheit degree)
LOGO

Company Logo or any advertisement can be printed on the carriage body according to the customer's design. (same as showed in last photo)

DFAC Small Refrigerated Van Truck Fast Food Cooling Van Body ISO 9001 Approved
DFAC Small Refrigerated Van Truck Fast Food Cooling Van Body ISO 9001 ApprovedFreezer Truck Inside Details


DFAC Small Refrigerated Van Truck Fast Food Cooling Van Body ISO 9001 Approved


DFAC Small Refrigerated Van Truck Fast Food Cooling Van Body ISO 9001 Approved


Relevant Products


1. Water Truck

2. Insulated Truck and Milk Truck

3. Sewage Suction Truck
4. Garbage Truck

5. High-altitude Operation Truck/Truck with Crane
6. Fuel Truck

7. Chemical Liquid Truck

8. Bulk Cement Truck
9. Concrete Mixer Truck

10. Tractor

11. Semi-Trailer
12. Fire Fighting Truck

13. Dump Truck

14. Van Truck/Refrigerated Truck/Refrigeration Truck
15. Wrecker/Tow Truck

16. Flatbed Truck/Low Bed Truck

17. Sweeper Truck
18. High Pressure Cleaning Truck

19. Liquefied Gas Transport Truck

20. Pressure Vessel

Company Information
1. Xiagong Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is a famous and the biggest manufacturer with very professional experience in special automobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.
2. Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, RefrigeratedTruck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.
3. We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru,Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines,Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.


DFAC Small Refrigerated Van Truck Fast Food Cooling Van Body ISO 9001 Approved
