"lpg bullet tanks"
大きいLPGの貯蔵タンク80000リットルの80 CBMガス タンク40トンのLPGの液体の
80000Liters LPG Storage Tank 80CBM LPG Bulk Tank 40Tons LPG Liquid Gas Tank Item Unit Parameter Product Name Liquefied Gas Storage Tank Brand Name Chusheng Model CLG3200-120 Overall dimensions mm TBD Tank Dimension DN3200*18*13800(inner dia*thickness*length) Fact cubage m3 120 Fact loading weight T 60 Tank weight 22.8 Working pressure Mpa ≤1.6 Testing hydraulic pressure 2.12 Testing pressure for gas density 1.77 Test pressure 1.69 Air tight test pressure 1.69 Safety valve
ASMEの圧力容器LPGの貯蔵タンクQ345R 40m3カスタマイズされる20トン色
ASME Pressure Vessel LPG Storage Tank 40m3 LPG Tank 20Ton LPG Gas Tank Part 2. LPG Tank Technical Parameters: LPG STORAGE TANK SPECIFICATION Capacity (CBM) Diameter DN Shell thickness (mm) Head thickness (mm) Kerb weight (kg) Loading Weight (kg) Overall dimension(mm) 5 1600 10 10 2030 1995 3070*1620*2210 8 1600 10 10 2540 3192 4270*1620*2210 10 1600 10 10 2950 3990 5260*1620*2210 12 1800 10 12 3360 4788 5034*1820*2410 15 1800 10 12 3920 5985 6224*1820*2410 20 1800 10 12 4820
30M3 LPGの貯蔵タンク30 CBMガスLPGタンク色の習慣を調理する15トン
30M3 LPG Storage Tank 30CBM Cooking Gas LPG Tank 15Tons LPG Tanker LPG Tank Technical Parameters: LPG Relevant Product:
10M3 LPGの貯蔵タンク必要なタイプ10000リットルのLPGの給油所の分けられたタイプ
10M3 LPG Gas Filling Station 5MT LPG Skid Station 10,000liters LPG Filling Station 1.We used advanced production line laid a solid foundation for the prefect products; perfect quality assurance system assures quality of products warm and thoughtful after-sale service,Lifting customer`s worries. 2.We used double-layer power accumulation to insulate,The work pressure is from 0 to 1.75 Mpa LPG Fuel Storage Tank .For the types,we have Vertical and horizontal. 3.About material

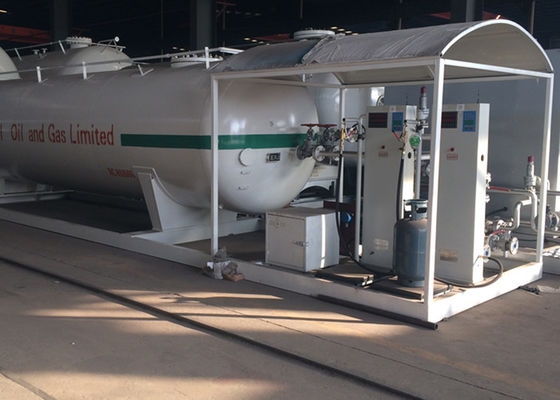

専門LPGの貯蔵タンク20M3はLPGの詰物との10トン受け入れられるOEMを量ります
20M3 LPG Gas Filling Station 10Tons LPG Skid Station With LPG Filling Scales ITEM PARAMETER ITEM PARAMETER Volume 20M3 10Ton Thickness of Shell 12mm Tank Material Carbon Steel Q345R Thickness of End plate 12mm Overall Size 6154*2124*2714mm Tank Net Weight 5050kg Tank Diameter 2100mm Loading Capacity 7980kg Design Pressure 1.77Mpa Gas Density 500~590kg/M3 Hydraulic Test Pressure 2.22Mpa Corrosion Allowance 1mm Design Temperature -20ºC~50ºC Heat Treatment Bulk Vapor Outlet DN50
Q345R Q370Rの炭素鋼LPGのガスの給油所20CBM 10MT 20000リットル
20CBM LPG Gas Filling Station 10MT LPG Skid Tank Station 20,000liters LPG Filling Station Part 1. LPG Gas Filling Station Main Functions: * Feeding gas to gas vehicles: high quality dispenser is equipped and its measurement is accurate and stable. * Unloading: The LPG tank car can unload the medium to the storage tank on the skid-mounted plant smoothly * Drainage: The sundries like water-logging in the storage tank will e drained through the drain outlet. * Emptying:The
20000L LPGのガス貯蔵タンク20m3給油所二重ノズル ディスペンサーとの10トン
20000 Liters LPG Gas Filling Tanker Skid Tank Station 10tons with Filling Scale or Dispenser The horizontal storage tank is a special equipment for storing liquefied petroleum gas (LPG) with saturated vapor pressure lower than 1.77 Mpa at 50℃ and the safety storage capacity of 2T-100T. The tank is designed in accordance with the requirements of Safety Technology Supervision Regulations for Pressure Vessel and Steel Pressure Vessel (GB150). Technical parameters for lpg tank
40m3 LPGの給油所、ASMEの圧力容器LPGのガス貯蔵タンク
ASME Pressure Vessel LPG Storage Tank 40m3 LPG Tank 20Ton LPG Gas Tank LPG Tank Technical Parameters: Parameter of 50cbm 25Tons LPG Storage Tank ITEM PARAMETER ITEM PARAMETER Volume 50M3 Thickness of Shell 14mm Tank Material Q345R Thickness of End plate 16mm Overall Size 9912*2628*3218mm Tank Net Weight 10910kg Tank Diameter 2600mm Loading Capacity 19950kg Design Pressure 1.77Mpa Gas Density 500~590kg/M3 Hydraulic Test Pressure 2.22Mpa Corrosion Allowance 1mm Design

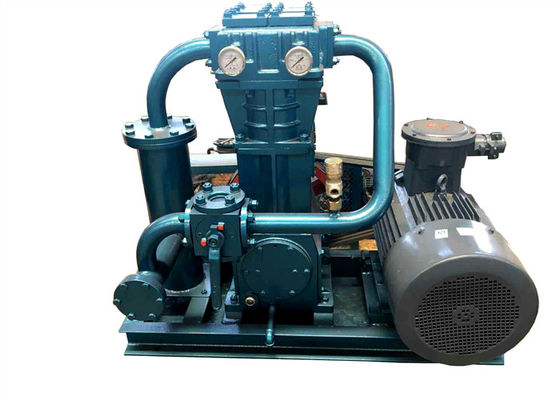

LPGの給油所のための耐圧防爆LPGポンプLPGモーターLPG圧縮機
Explosion Proof Lpg Pump Lpg Motor Lpg Gas Compressor For Lpg Gas Station Media LPG Gas Cooling Type Wind Cool Compressing Stage 1 Capacity 1.0m3/Min Inlet Pressure 1.0MPa Outlet Pressure 1.6MPa Speed 650rpm Ex Motor 11kw,380V,50Hz Weight 450kgs More Pictures for your reference:
