stazioni di servizio di 40m3 GPL, serbatoio del gas del contenitore a pressione di ASME GPL
ASME Pressure Vessel LPG Storage Tank 40m3 LPG Tank 20Ton LPG Gas Tank LPG Tank Technical Parameters: Parameter of 50cbm 25Tons LPG Storage Tank ITEM PARAMETER ITEM PARAMETER Volume 50M3 Thickness of Shell 14mm Tank Material Q345R Thickness of End plate 16mm Overall Size 9912*2628*3218mm Tank Net Weight 10910kg Tank Diameter 2600mm Loading Capacity 19950kg Design Pressure 1.77Mpa Gas Density 500~590kg/M3 Hydraulic Test Pressure 2.22Mpa Corrosion Allowance 1mm Design
serbatoi di 10M3 GPL 10000 litri di GPL di tipo integrale tipo separato delle stazioni di servizio
10M3 LPG Gas Filling Station 5MT LPG Skid Station 10,000liters LPG Filling Station 1.We used advanced production line laid a solid foundation for the prefect products; perfect quality assurance system assures quality of products warm and thoughtful after-sale service,Lifting customer`s worries. 2.We used double-layer power accumulation to insulate,The work pressure is from 0 to 1.75 Mpa LPG Fuel Storage Tank .For the types,we have Vertical and horizontal. 3.About material
10 tonnellate di GPL di stazione di scivolo, 20cbm 20000 litri di GPL del cilindro di stazione di servizio
20cbm LPG Filling Station 10tons LPG Skid Station 20, 000liters LPG Cylinder Filling Station LPG Tank Gas Filling Stations Technical Parameters ITEM PARAMETER ITEM PARAMETER Volume 20M3 10Ton Thickness of Shell 12mm Tank Material Carbon Steel Q345R Thickness of End plate 12mm Overall Size 6154*2124*2714mm Tank Net Weight 5050kg Tank Diameter 2100mm Loading Capacity 7980kg Design Pressure 1.77Mpa Gas Density 500~590kg/M3 Hydraulic Test Pressure 2.22Mpa Corrosion Allowance 1mm

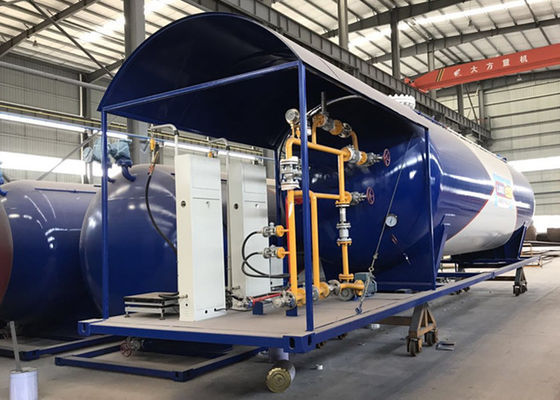

stazione di servizio del cilindro di 40M3 GPL 20MT 40000 litri di Chusheng007 per stoccaggio
40M3 LPG Filling Station 20MT LPG Skid Station 40,000liters LPG Cylinder Filling Station ITEM PARAMETER ITEM PARAMETER Volume 20M3 10Ton Thickness of Shell 12mm Tank Material Carbon Steel Q345R Thickness of End plate 12mm Overall Size 6154*2124*2714mm Tank Net Weight 5050kg Tank Diameter 2100mm Loading Capacity 7980kg Design Pressure 1.77Mpa Gas Density 500~590kg/M3 Hydraulic Test Pressure 2.22Mpa Corrosion Allowance 1mm Design Temperature -20ºC~50ºC Heat Treatment Bulk Vapor

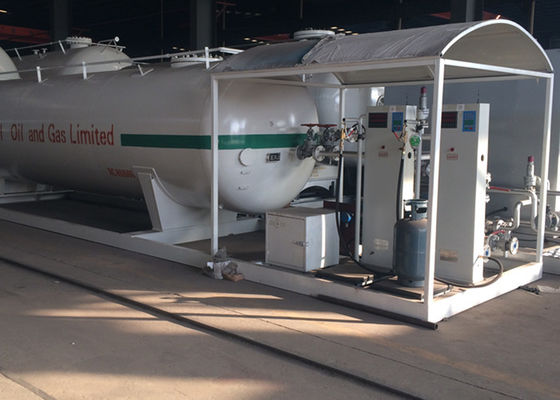

I serbatoi professionali di GPL 20M3 10 tonnellate con il materiale da otturazione di GPL riporta in scala l'OEM accettato
20M3 LPG Gas Filling Station 10Tons LPG Skid Station With LPG Filling Scales ITEM PARAMETER ITEM PARAMETER Volume 20M3 10Ton Thickness of Shell 12mm Tank Material Carbon Steel Q345R Thickness of End plate 12mm Overall Size 6154*2124*2714mm Tank Net Weight 5050kg Tank Diameter 2100mm Loading Capacity 7980kg Design Pressure 1.77Mpa Gas Density 500~590kg/M3 Hydraulic Test Pressure 2.22Mpa Corrosion Allowance 1mm Design Temperature -20ºC~50ºC Heat Treatment Bulk Vapor Outlet DN50
25 tonnellate di GPL della pallottola dei carri armati 50 di CBM di abitudine di colore per il riempimento della bombola a gas
25tons lpg gas bullet tank 50cbm for gas cylinder refilling usage Technique Parameter for 25tons lpg gas tank Item No. Parameters Volume of Tank (cbm) 50 Tare Weight (kg) 10640 kg Filling Capacity (kg) 19950 kg Thickness of Shell (mm) 14 Thickness of Endplate (mm) 16 tank cylinder diameter (mm) 2700 External Dimensions (mm) (length×width×height) 9182*2728*3318 Material of Tank and Main Pressure Parts Carbon Steel Q345R Filling Medium Liquefied Petroleum Gas Design Pressure 1
Serbatoi di CSC2018004 GPL 15 tonnellate 30 di CBM 5000L - 100000 L ASME hanno approvato
30000liters liquefied petroleum gas 15tons LPG storage tank 30cbm for Nigeria market Technique Parameter for 15tons lpg storage tank Item No. Parameters Volume of Tank (cbm) 30 Tare Weight (kg) 7110 kg Filling Capacity (kg) 15000 kg Thickness of Shell (mm) 12 Thickness of Endplate (mm) 14 tank cylinder diameter (mm) 2300 External Dimensions (mm) (length×width×height) 7008*2224*2814 Material of Tank and Main Pressure Parts Carbon Steel Q345R Filling Medium Liquefied Petroleum
Serbatoi del contenitore a pressione di ASME GPL Q345R 40m3 un colore di 20 tonnellate su misura
ASME Pressure Vessel LPG Storage Tank 40m3 LPG Tank 20Ton LPG Gas Tank Part 2. LPG Tank Technical Parameters: LPG STORAGE TANK SPECIFICATION Capacity (CBM) Diameter DN Shell thickness (mm) Head thickness (mm) Kerb weight (kg) Loading Weight (kg) Overall dimension(mm) 5 1600 10 10 2030 1995 3070*1620*2210 8 1600 10 10 2540 3192 4270*1620*2210 10 1600 10 10 2950 3990 5260*1620*2210 12 1800 10 12 3360 4788 5034*1820*2410 15 1800 10 12 3920 5985 6224*1820*2410 20 1800 10 12 4820
piccolo camion cisterna di 3000L 5000L, camion ad alta pressione di pulizia della fogna per il tubo Flessinga
Dongfeng 4x2 High pressure cleaning truck 8cbm 10cbm sewer dredging truck, High pressure cleaner truck Hydrodynamic Truck For Pipe Flushing. Specifications 1, Big water tank, 10cbm, it's useful sewer dredge by using high pressure water spray. 2, Dongfeng-A well known trademark around the wrold, DFL, High-end model of Dongfeng, the quality can be trust, and it has a competitive price. 3, Urban environmental protection need this type truck. 4, The high pressure water pump
