| Tank Volume: | 5000L, 8000L, 10000L, 15000L, 20000L | Loading Capacity: | 5tons, 8ton, 10tons, 15tons, 20tons. |
|---|---|---|---|
| Product Name: | Fire Fighting Truck, Fire Fighting Foam Truck | Truck Brand: | Isuzu / Dongfeng / HOWO / Foton / Shacman |
| Drive Type: | 4X2, 6-Wheel, 6 Wheeler. 6X4, 10-Wheel, 10-Wheeler | Drive Model: | Left Hand Drive, Right Hand Drive. |
| Application: | Fire Rescue, Fire Fighting, Fire Extinguisher | Key Parts: | Pump, Fire Gun, High Pressure Pump |
| Transmission: | Manual Control | Warranty: | One Year Warranty For Three Key Parts(Axles, Engine, Gearbox) |

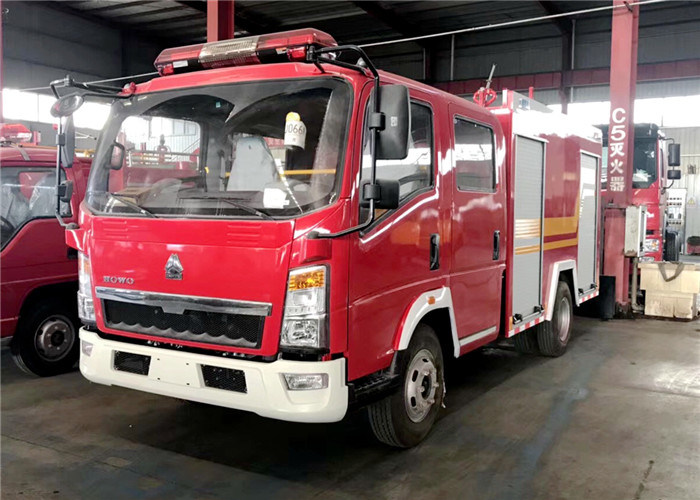

SINOTRUCK Water Foam Fire Fighting Truck, HOWO 4x2 Rescue Vehicles Fire Fighting Truck
Fire Fighting Truck,also be called as powder tank,foam tank,fire engines,crash tender vehicles. Xiagong Chusheng had service for many fire brigades in China. Among our fire trucks, dongfeng series,cnhtc series are most popular in African countries. Combined with water pump and foam tank, these fire fighting truck can supply high pressure water for fire against,fire controll and fire fighting works. More fire fighter pictures, fire fighter price,fire fighting trucks can known from following catalog. Any special needs
Fire fighting truck is mainly used for large and medium-sized cities in Chinese professional fire brigadein the fighting against buildings,forests,as well as oil ,chemical industry,fact-altitude water supply,mobile pumping stations.
Our plant the adoption of a comprehensive international iso9001-2000 quality system certification,product certification 3C through a comprehensive,well-known domestic brands, trusted products in Hubei Province.
We produce all types of fire trucks AS YOU NEED!
Welcome to visit us in Suizhou City, Hubei Province, China, where is the prodcution base of special purpose vehicles!
1. Chassis: we have more than 30 years cooperation ship with Automobile factories, such as SINOTRUK, FAW, FOTON, SHACMAN,JAC,JMC...
2. Fire Fighting System: We can customize all types of fire trucks exactly according to your needs. We have strict test and control policy of all the spare parts, from the pump, monitor to even a small screw!
3. We provide one year free warranty for all our products!
4. We have own export right, no need to depend on trading companies.
The parameter of SINOTRUCK Water Foam Fire Fighting Truck, HOWO Rescue Vehicles Fire Fighting Truck.
| Cabin |
HOWO 76 Standard Cab, LHD With two bunks, 70° hydraulically tillable to the front as attached photo for ref. |
||||||
| Vehicle Main Dimensions | (L x W x H)mm | 11025×2496×3586 | |||||
| Wheel base (mm) | 4625+1350 | ||||||
| Wheel track (front/rear) (mm) | 1500/1470 | ||||||
| Approach/Departure angle(°) | 19/27 | ||||||
| Weight in KGS | Tare Weight(kgs) | 14900 | |||||
| Loading Capacity(kgs) | 16000 | ||||||
| Front axles loading capacity(kgs) | HF7 1x7000 | ||||||
| Rear axles loading capacity(kgs) | ST16 2x16000 | ||||||
| Max. driving speed(km/h) | 75 | ||||||
| Engine | Brand | Sinotruk | |||||
| Model | WD615.96C | ||||||
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||||||
| Horse Power(HP) | 380HP | ||||||
| Emission standard | Euro-3 | ||||||
| Gearbox | HW19710, 10 forwards & 2 reverse | ||||||
| Clutch | Reinforced diaphragm clutch, diameter 430mm | ||||||
| Steering Gear | ZF 8118,power steering, hydraulic steering with power assistance | ||||||
| Fuel tank (L) | 300 | ||||||
| Tire | 12R22.5 tubeless tire, 10 pieces with one spare | ||||||
| Brakes |
Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
||||||
| Equipment | 8000Liters water tank, Tank Material: SS316L Stainless Steel; 4000Liters Carbon dioxide foam tank, Tank Material:SS316L Stainless Steel. | ||||||
| Modified Description |
1. Component parts: fire pump, pipe system, water cannon, fluid tank( built-in type), power take off, curtain type doors, storage compartment, additional electrical appliances, slide pull gate, reel and other common tools. |
|
|
2. Equipped with street hawk warning light alarm, rotary warning light control switch, power takeoff control switch and indicator light. |
||
| Application | Fire fighting truck is specially used for fire fighting vehicles or other emergency rescue purposes. This truck can be divided into pump truck(water supple vehicle sprinkling water or fire), aerial(high save) and other special vehicles by its function. | |
More Pictures of Fire Fighting Truck we produced:
Main Parts of Fire Fighting Truck:
Equipment:
Middle and low pressure pump :CB20.10/15.30HFlow:middle pressure 15L/S low pressure 30L/S
Pressure: middle pressure 2.0MPa low pressure 1.0MPa PL30 Fire Pump Flow: 30L/S Pressure: 1.0~1.2MPa
Fire distance (water):≥45m
Fire Truck Standard Configuration Spare Part list:
1 Suction Tube 100-125 2 meters
2 Water Filter 100-125
3 Suction Tube wrench
4 Ground fire wrench
5 Underground Fire wrench
6 Water belt 65#
7 Water belt 80#
8 Outer-affusion water belt
9 Different diameter interface 80-65
10 DC water gun
11 Flowering water gun
12 DC switch water gun
13 Foam gun
14 Same diameter interface 100-125
15 Tri-detaching water equipment 80-65
16 Water collection
17 Water belt guard bridge
18 Water belt Wrapper
19 Water belt hook
20 Foam barrel 25 Litre
21 Fire Hammer
22 Fire axe
23 Fire xin
24 Fire Ting
25 Fire pickaxe
26 Fire barrel
27 Axe
28 soft ladder
