Product Details:
Payment & Shipping Terms:
|
| Item Name: | Street Sweeper Machine | Capacity Of Water: | 2000L |
|---|---|---|---|
| Volume Of Garbage: | 2000L | Driving Type: | 6x4, Left Hand Drive/ Right Hand Drive |
| Other Driveing Type Available: | 4x2 ,6x4, 8x4 | Chassis Brand: | Dongfeng |
| Other Brand Available: | Dongfeng, HOWO, SHACMAN, JAC, JMC, FAW, FORLAND Etc | Usage: | Road/street Sweeping, Shovel Snow |
| Highlight: | broom sweeper truck,road cleaning truck |
||
Dongfeng Road Sweeper Truck with Snow Shovel, 8000 liters Floor cleaning machines
Description of vacuum road sweeper truck:
Road Sweeper/ Street Sweeper/Vacuum sweeper truck is multi-functional, as a combition of street sweeper, garbage collection and transportation, is an effective tool for sanitation cleaning industry. This vehicle can clean the garbage on the street as well as dust seperation.
1> Many kinds of road sweeper trucks for choose, such as Dongfeng, JMC, JAC, QingLing ISUZU,etc.
2> Equipped with 4 sweeping brush, JMC 88 hp deputy engine; Italian motor; French control switch; Joint venture solenoid valve group; Maintenance-free self-separate clutch; Maintenance-free fan; Stainless steel water tank and dustbin; Rear LED arrow lights, manual pump for emergency system.
3> Maximum sweeping width 3.2 m, inhaled sizeφ120 mm.
4> Optional: monitoring, sprinkler function, self-cleaning function for dustbin.
5> with snow shovel
Features:
Brand: Dongfeng
Other brand available: Dongfeng, HOWO, FORLAND, SHACMAN, FAW etc.
Volume of water: 2000L
Volume of garbage: 2000L
Driving type: 4x2 left hand drive / right hand drive
Ohter type: 4x2, 6x4, 8x4 ,
Other volume: 4000L, 5000L, 8000L, 10000L, 12000L
Application:
The Road Sweeper Truck is suitable for cleaning of urban roads, highways, plazas, airports, docks, mechanical cleaning, cleaning, spraying and dust suppression.
parameters of Dongfeng 4X2 road sweeper truck with snow shoval
| Truck | Drive mode | 4×2 | |
| Chassis | DFL1120B | ||
| Engine | Model | CumminsISDe180 30 | |
| Max. power(Kw/rpm) | 136/2500 | ||
| Max. torque(N.m/rpm) | 650/1200-1700 | ||
| Displacement(ml) | 4500 | ||
| Type of fuel | Diesel | ||
| Compression ratio | 17.3:1 | ||
| Dimmensions | Overall dimension (mm) | 8600×2500×2830 | |
| Wheel base (mm) | 4700 | ||
| Front/Rear tread(mm) | 1880/1800 | ||
| Mass | Payload (Kg) | 5930 | |
| Curb weight(Kg) | 5880 | ||
| G.V.W (Kg) | 12005 | ||
| Tyre | Size | 9.00-20 | |
| Performance | Speed(Kw/h) | 95 | |
| Special function | Sweeping width(mm) | 2200 | |
| Sweeping capacity(m2/h) | 57500 | ||
| Sweeping efficiency(%) | 98 | ||
| Max. sweeping speed(Km/h) | 3-20 | ||
| Sweeping Speed Cleaning Speed(Km/h) | 15-25 | ||
| Max. absorbing diameter(mm) | Ø220 | ||
| Min. ground clearance of the suction Mouth (mm) | 700 | ||
| Angle of discharge(°) | 60 | ||
| Sweeping Brush Drive and Control | Hydraulic | ||
| Refuse container volume(m³) | 5 | ||
| Water tank volume(m³) | 3 | ||
| Sub-engine | EQ 4BT3.9 (Dongfeng) | ||
| snow removing | with snow removing shovel | ||
Service:
1. Factory direct supply: reliable quality and fast delivery.
2. Warranty:From the date of receiving, in normal use within 30000km or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs.
3. Tracking service: lifelong.
4. Chassis question: When the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station.
5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.
6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.
7.After-sale ServiceOne year warranty Any small question will be solved at the most prompt time. We also offer relative technical support. Our spare parts will be available at any time after your order.
8.Supply Capacity
We manufacture the truck as soon as your order comes. And for the stock, we can delivery it immediately.
For more details, please just feel free to contact me.
FAQ:
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok .But we need take apart the truck. You should reinstall in your country.
Q: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q: I want to be your agent in my country , is that ok?
A: its ok, if your quantity is big, we will consider. For the first time 50 units is ok.
Q: I want the front two tires are bias tire and the rear 9 tires are radial tires, is it ok?
A: We can make the tires as your requirement to suit your country's need.

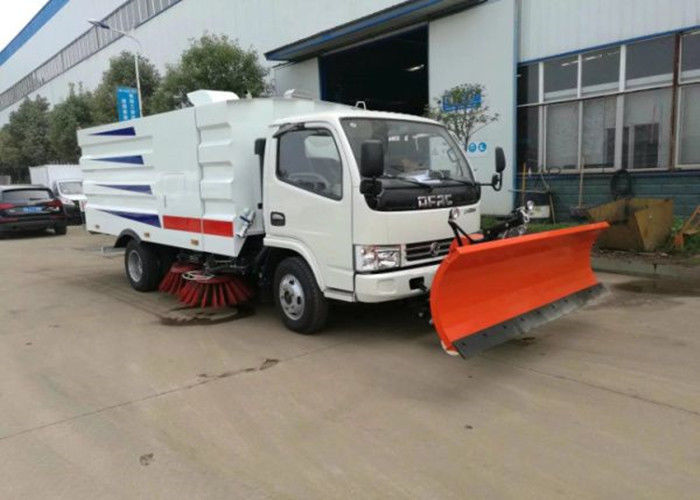

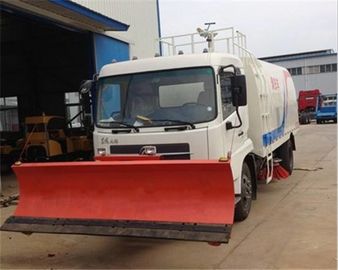

photos of Dongfeng 4X2 road sweeper truck with snow shoval:
