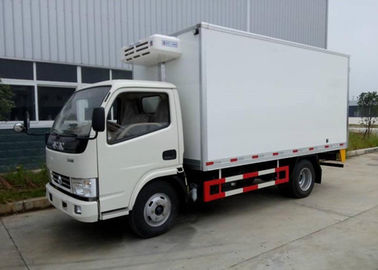

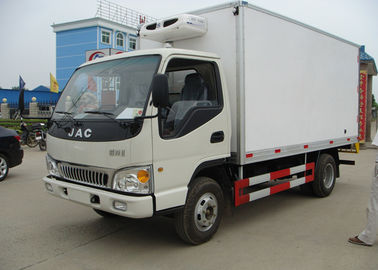

4x2 3 Tons Freezer Box Truck , Refrigerated Delivery Truck With Thermo King Unit

China 4x2 3 Tons Freezer Box Truck , Refrigerated Delivery Truck With Thermo King Unit supplier
4x2 3 Tons Freezer Box Truck , Refrigerated Delivery Truck With Thermo King Unit supplier 4x2 3 Tons Freezer Box Truck , Refrigerated Delivery Truck With Thermo King Unit supplier

Large Image :  4x2 3 Tons Freezer Box Truck , Refrigerated Delivery Truck With Thermo King Unit

Product Details:

Place of Origin: Hubei,China
Brand Name: CS
Certification: ISO CCC ISO9001
Model Number: CS1047C3414B145

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Nake Package Used RO-RO Ship Container Ship
Delivery Time: 15-20 work days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 50000 units per year
Contact Now
Detailed Product Description
Product Name: Refrigerated Van Truck Freezer Brand: Thermo King, Hanxue, Korea Brand Etc
Applications: Used For Freezer Food, Fruit, Beer, Fish, Vege Emission Standardruck: Euro II
Truck Drive Wheel: 4*2 4*4 6*2 6*4 6*6 8*4 8*6 Material Type: 8cm Middle Polyfoam Insulation
Body Material: Strong Fiberglass Inner And Outer Wall Truck Brand: Dongfeng FAW Foton Sinotruk JAC Shacman

Dongfeng 4x2 3Tons Refrigeration Box Truck Freezer Truck With Thermo King Unit



Refrigerator Trcuk also called ice truck, insulated car, van, explosion-proof cars, refrigerated trucks, refrigerated trucks is mainly used for fruits, seafood, milk and other perishable, perishable, easy fermentation long-distance transportation of goods.



The advantages of Insulated/Freezer Van Body:


1. It is made of GRP and PU foam with all-closed structure that the GRP (Glass Reinforced Plastic Fiber) outside and PU foam in the core.


2. Light in weight: 40% lighter than metal body.


3. Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.


4. The panel used for the truck body was constructed in type of sandwich. The thermal insulation layer is 50-80mm thick, which offers a very good thermal insulation performance.


5. Length of Cargo body: 10-40 inch; Capacity of Cargo body: 5-70CBM. The material of the cargo body is optional according to which kinds of goods the truck transport, with perfect heat preservation, box open model: Rear double-open or Side-open.


6. Refrigeration unit Brand Optioanl: American CARRIER, THERMO KING. South Korea hanya. China Songhan,hanxue, etc. The Temperature range can be 0° C ~ -20° C. The refrigeration units that we select have simple structure, convenient operation, reliable working, low energy consumption, large refrigerating capacity, small noise,easy installation and maintenance and other advantages


Technical Specifications:



Parameters
Overall Dimension 6995x2310x2570 mm
Gross Vehicle Weight 7345kg
Curb Weight 3550kg
Loading Weight 4895Kg
Wheel Base 3800mm
Front/rear Tread 1120/2075 mm
Approach/Departure Angle 21/20degree
Front Axle 2850kg
Rear Axle 4645kg
Gearbox LC5T26, 5 speed, manual control.
Engine 4DX22-110, Diesel Engine, 4 in-line cylinder
Engine horsepower 108HP EURO II
Displacement 3.66 L (Diesel)
Full loading Fuel
Consumption Rate
Maximum 215 g/kW.h
Max Driving Speed 90 km/h
Cabin 2 Passenger allowed
Tire 8.25-16 LT (7 pieces)
Carriage Body
Size: 5100x2100x1400mm
Body Material Strong Fiberglass Inner and Outer Wall,
with 8cm Middle Polyfoam Insulation.
Refrigerator High Quality Hanxue Refrigerator, Lowest Cooling Temperature negative 18 centi-degree (negative 608 Fahrenheit degree)
LOGO Company Logo or any advertisement can be printed on the carriage body according to the customer's design. (same as showed in last photo)





Introduction:



Refrigerated truck is a called van used to transport the frozen or fresh goods, it is also a kind of special transportation vehicle equipped with refrigeration device and polyurethane thermal insulation box.



Applications:



It is often used to transport frozen food, dairy products, fruits and vegetables, vaccine and drug.



Insulated truck body Main Characters:



Light in weight: 40% lighter than metal body.
Better insulation: K value less than 0.3w/m2k.
High in strength and long life: 5 times longer than metal body.
Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.
Easy to assembly and repair at site.



FAQ:
Q1. Are your manufacturer ?
A : Yes! We can totally manufacture the trucks as you required.
Q2. Do you have a good orgonization of shipping vessle ?
A : Yes, we have a good and long term cooperation with the world first class famous shipping company line,
like MSK,PIL,SUNSHINE SHIPPING,ETC.The order over 500 units of vehicle,we will lease a vessel.
Q3. How about your warranty items?
A : We supply original spare parts of our vehicles, if you need, we will show you spare parts list for your
choosing to make sure daily maintain of your vehicles.
Q4. Can I be your agent in my country?
A : It is Ok if the order is appropriate, we looks forward to long-term cooperation with you.
Q5. What is the delivery time and payment term?
A : Our common products delivery time is 10-35 working days except some definitely special vehicles.
We accept 30% T/T deposit and 70% balance T/T or 100% L/C. More details, please contact with our salesman.
