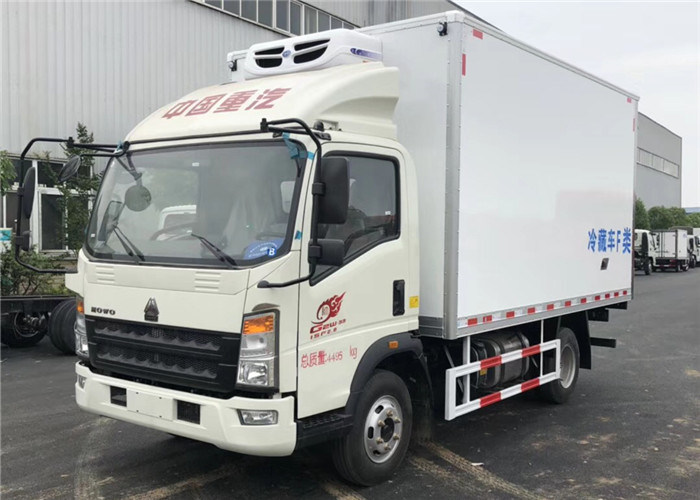

HOWO 4x2 Refrigerated Box Truck Fiberglass Inner , 3 Tons Refrigerator Freezer Truck

China HOWO 4x2 Refrigerated Box Truck Fiberglass Inner , 3 Tons Refrigerator Freezer Truck supplier
HOWO 4x2 Refrigerated Box Truck Fiberglass Inner , 3 Tons Refrigerator Freezer Truck supplier HOWO 4x2 Refrigerated Box Truck Fiberglass Inner , 3 Tons Refrigerator Freezer Truck supplier HOWO 4x2 Refrigerated Box Truck Fiberglass Inner , 3 Tons Refrigerator Freezer Truck supplier HOWO 4x2 Refrigerated Box Truck Fiberglass Inner , 3 Tons Refrigerator Freezer Truck supplier

Large Image :  HOWO 4x2 Refrigerated Box Truck Fiberglass Inner , 3 Tons Refrigerator Freezer Truck

Product Details:

Place of Origin: Hubei,China
Brand Name: CS
Certification: ISO CCC ISO9001
Model Number: ZZ1047C3415

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: 20000-48800USD/unit
Packaging Details: Nake Package Used RO-RO Ship Container Ship
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 50000 units per year
Contact Now
Detailed Product Description
Product Name: 3 Ton 4 Tons 5 Tons Refrigerated Truck Freezer Brand: Thermo King, Hanxue, Korea Brand USA Carrier Etc
Applications: Used For Freezer Food, Fruit, Beer, Fish, Vegetable Emission Standardruck: Euro II
Truck Drive Wheel: 4*2 4*4 6*2 6*4 6*6 8*4 8*6 Material Type: 8cm Middle Polyfoam Insulation
Body Material: Strong Fiberglass Inner And Outer Wall Truck Brand: Sinotruk HOWO, 6 Wheels Refrigerator Van Truck
Drive Type: Right Hand Drive, Or Left Hand Drive

HOWO 4x2 Refrigerated Box Truck Fiberglass Inner , 3 Tons Refrigerator Freezer Truck



Refrigerator Trcuk also called ice truck, insulated car, van, explosion-proof cars, refrigerated trucks, refrigerated trucks is mainly used for fruits, seafood, milk and other perishable, perishable, easy fermentation long-distance transportation of goods.



Insulated truck body Main Characters:



Light in weight: 40% lighter than metal body.
Better insulation: K value less than 0.3w/m2k.
High in strength and long life: 5 times longer than metal body.
Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.
Easy to assembly and repair at site.


Technical Specifications:



Cabin 1880 cabin, Driving type 4x2 Right Hand Drive, or Left hand drive.
Have heater, 2 seats. With air conditioner
Vehicle Main Dimensions Overall dimensions (L x W x H)mm 5995×2020×2330
Wheel base (mm) 3360
Wheel track (front/rear) (mm) 1160/ 1375
Approach/Departure angle(°) 20/25
Weight in KGS Tare Weight (kg) 2850
Payload (kg) 4000
Front axles loading capacity(kg) 1x2000
Rear axles loading capacity(kg) 1x3500
Max. driving speed(km/h) 90
Engine Brand YUNNEI
Model YN4102
Type 4-stroke direct injection , 4-cylinder
Horse Power(HP) 116
Emission standard Euro II, 3856ml
Refrigerating System

1, Box Size: 4100×1970×1200(mm)

2,Box Material, glass epoxy in the surface, foam in the middle , thickness is 80mm

3, Working temperature is minus 18 centi degree.

4. USA Carrier brand Non-Independent refrigeration unit.

5, Rear door open



Introduction:



Refrigerated truck is a closed van used to transport the frozen or fresh goods, it is also a kind of special transportation vehicle equipped with refrigeration device and polyurethane thermal insulation box.



Applications:



It is often used to transport frozen food, dairy products, fruits and vegetables, vaccine and drug.



Detailed pictures for reference:

HOWO 4x2 Refrigerated Box Truck Fiberglass Inner , 3 Tons Refrigerator Freezer Truck

HOWO 4x2 Refrigerated Box Truck Fiberglass Inner , 3 Tons Refrigerator Freezer Truck
