Payment & Shipping Terms:
|Volume:||8000L, 10000L, 15000L, 20000L, 25000L||Loading Capacity:||5t, 8t, 10t, 12t, 15t, 20t, 25t, 30t|
|Chassis Model:||6X4 Water Sprinkler Truck, Water Tanker Truck||Product Name:||Water Sprinkler Truck, Water Tank Truck|
|Pump:||Water Tanker With High Pressure Pump||Drive Model:||Right Hand Drive & Left Hand Drive|
|Other Key Parts:||Front (Rear, Side) Sprinkler, Fire Valve Etc||Engine Horse Power:||266HP, 290HP, 336HP, 371HP|
|Chassis Brand:||Sinotruk HOWO Series||Application:||Drinking Water Transport, Watering Sprinkler|

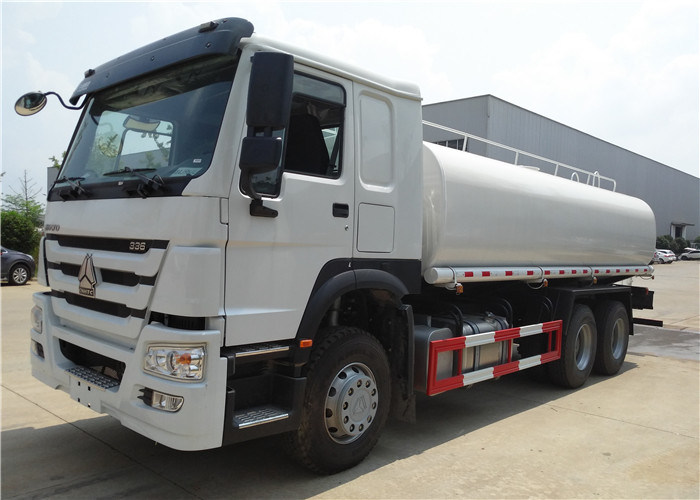

Sino truck HOWO 6x4 20 Ton water spraying truck 20000L water sprinkler truck, Sino truck HOWO 6x4 20T water sprinkling truck 20000L water sprinkler truck, Sinotruck HOWO 6x4 336hp 20T water sprinkling truck 20000L water sprinkler truck for sale
1, Sinotruk WD615.62, WD615.87, WD615.69, WD615.47, 266hp, 290hp, 336hp,371hp are optional.
2, Volume of tank: 18000L-20000L
3, Low oil consumption with good economic.
4, Pump: Chinese famous brand pump
5, Self suction, self discharge function, front flushes sprinkles, side spurts, post positioned work table.
6, High-pressured Sprinkler, spraying of water to be possible to adjust columnar and the fog shape.
7, Optional fire pump and fire-fighting accessories.
8, Especially suitable for the municipal administration environmental sanitation department, the large-scale industry and mining enterprise.
9,BV ISO CCC approved, accept customes' OEM customized.
10, 4x2 truck chasiss, 6 wheeler; 6x4 truck chasiss, 10 wheeler; 8x4 truck chassis, 12 chasiss.
The specification for Sinotruk HOWO 6x4 336hp 10 wheeler Water Tanker Truck 20T 20 tons Water Sprinkler Tank Truck
|Cabin||HW 76 Standard Cab, Left hand drive, one sleeper. A/C
With two bunks, 70° hydraulically tillable to the front as attached photo for ref.
|Vehicle Main Dimensions||(L x W x H)mm|
|Wheel base (mm)|
|Wheel track (front/rear) (mm)|
|Weight in KGS||Tare Weight|
|Front axles loading capacity|
|Rear axles loading capacity|
|Max. driving speed(km/h)|
|Gearbox||HW19710, 10 Forwards gear & 2 reverse|
|Clutch||Reinforced diaphragm clutch, diameter 430mm|
|Steering Gear||ZF 8098, power steering, hydraulic steering with power assistance|
|Fuel tank (L)||300|
|Tire||12R22.5 radial steel tire 11 Pieces including one spare|
|Brakes||Service brake: dual circuit compressed air brake
Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake
|Tank||20CBM, tank thickness is 4mm, seal is 5mm.
Equipped with front(rear, side)sprinkler(sprinkler width>14m).
Equipped with pump(suction lift>6m)
Equipped with fire valve, water valve, and filter gauze.
Equipped with rear working platform with water cannon.
Rubber Padding between the tanker & chassis.
More Picturs for water sprinkler truck:
water sprinkler tanker features:
1, Applied carbon steel sheet Q235-A; Stainless steel; Aluminium alloy.
2, Applied the famous pump.
3,The main parts implements automatic welding.
4, Sub crossbeam apply rectangle steel sheet that thickness more than 5mm, stick out in one time.
5, Painting held more tolerance and coherence, can make sure the tank in good situation more than 5 years.
