2 axle 3 axle or 4 axle 42000L oil transport tank trailer 42000L-60000L fuel tank trailer for sale, factory sale 42cbm fuel/oil tank trailer 42000L fuel/oil tank semi trailer.
Tank material: Carbon steel, Stainless steel, aluminum alloy for option.
gasoline tank trailers, gasoline trailer, fuel tank semi trailer
Oil tanker truck, fuel tanker truck, petroleum tanker truck, which are mainly used for transporting oil.
some oil tanker truck could be also a refueling tank truck, with refueling device.
Our company also produce the oil tank trailer,the manufactuere standard could be according to European standard.
API device.
Currently our company produce the oil tanker truck form 3000~ 35000 liters
Oil tank trailer from 40000~70000 liters.
| Main Dimensions |
| Overall Length | 11800mm | |
| Overall Width | 2500mm | |
| Overall Height | 3600mm | |
| Tare Weight | 6800 kg | |
| Curb Payload | 36000 kg | |
| Loading Capacity | 40m3 | |
| Photo only for reference, final product can be made according to exact requirements. Client Logo on Tank body |
| Tank Body |
| Shape | Elliptical |
| Total Volume(m3) | 40CBM |
| Tanker Body Material | 6mm aluminum 5083 |
| End plate Material | 7mm aluminum 5083 |
| Baffles Material | Aluminum |
| Manhole of Baffles | 500mm |
| Manhole cover | 3 nos. API aluminum manhole covers, ∮500mm 3 sets with 3 breather valves,fitted with high flow vapor vent and sensing probe, three oil gauges. |
| Bottom Valve | 3 set of API Pneumatic Bottom Valve, Pneumatic control |
| Top Safety Rail | 1 Set |
| Walkway | Aluminum Non-slip walkways |
| Discharging valve | 3 set ∮100mm discharging valves |
| Vapor Return System | Aluminum line through barrel with section outboard of shell with vapor adapt-or and dust cover to be provided |
| No.of Compartment | 3 |
| Discharging Pipe | 4”rubber hose, 2 pc, 6m long |
| Anti-static wire loop | 1 |
| Chassis |
| Main Beams | Full Aluminum frame including outrigger and cross members.Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation; |
| Overturn Protection | Full length structural extrusion each side on top |
| Axle | 3 axles |
| BPW 13 Ton. |
| Suspension | A complete set of BPW Air bag suspension |
| Landing Gear | JOST brand C205 Two-speed, manual operating, heavy duty landing gear |
| King Pin | JOST brand 2” or 3.5’’ bolt-in king pin |
| Suspension | air bag suspension |
| Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. |
| Wheel rim | 11.75-22.5 aluminum wheel rim, 7 pieces including one spare |
| Tire | 385/65R22.5 tubeless tire with one spare tire, 7 pieces |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint |
| Ladder | Aluminum Ladder at rear |
| Lights &Sound | Reverse light and buzz to be installed |
| Wiring | 24V,7 wire system |
| Accessories | One standard tool box |
| Stickers ass required |
| Fire Extinguisher 2 no. |

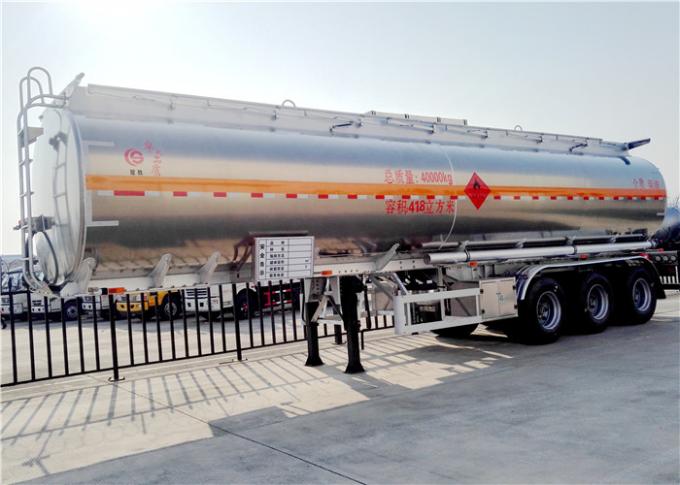

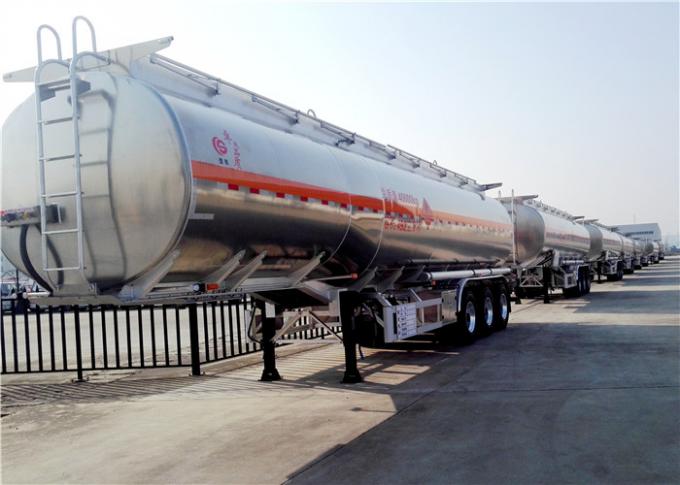

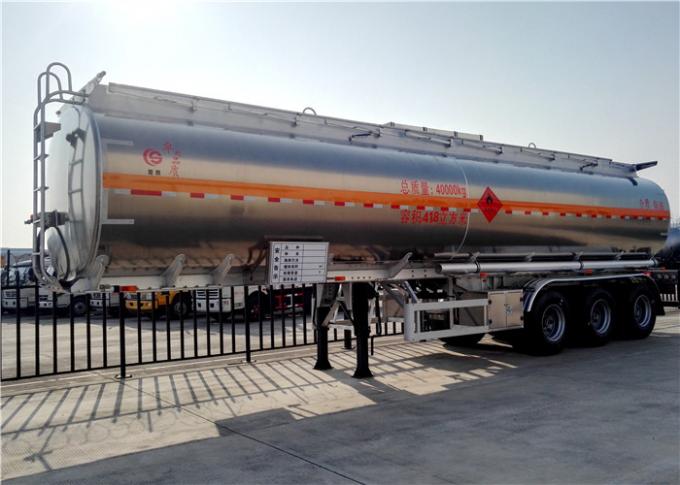

The picture of Aluninum Alloy fuel tank trailer.

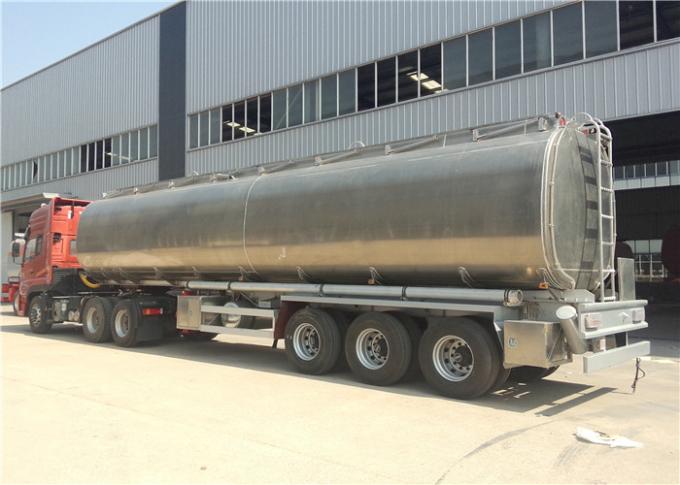

Stainless Steel fuel tank trailer, oil tank semi trailer.
Product Catalogue:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Our LPG tank products including:
1) 3,000L -200,000Liters LPG storage tank.
2) 5M3-35.5M3 LPG tank truck, 20M3-60M3 LPG tank trailer
3) 5M3-35.5M3 LPG bobtail.
4) LPG skid station whole set, size as customer's request.
