ISUZU 4x2 Small Tow Truck , 6 Wheels 3 Ton Flatbed Wrecker Truck For Two / Three Cars

China ISUZU 4x2 Small Tow Truck , 6 Wheels 3 Ton Flatbed Wrecker Truck For Two / Three Cars supplier
ISUZU 4x2 Small Tow Truck , 6 Wheels 3 Ton Flatbed Wrecker Truck For Two / Three Cars supplier ISUZU 4x2 Small Tow Truck , 6 Wheels 3 Ton Flatbed Wrecker Truck For Two / Three Cars supplier ISUZU 4x2 Small Tow Truck , 6 Wheels 3 Ton Flatbed Wrecker Truck For Two / Three Cars supplier ISUZU 4x2 Small Tow Truck , 6 Wheels 3 Ton Flatbed Wrecker Truck For Two / Three Cars supplier

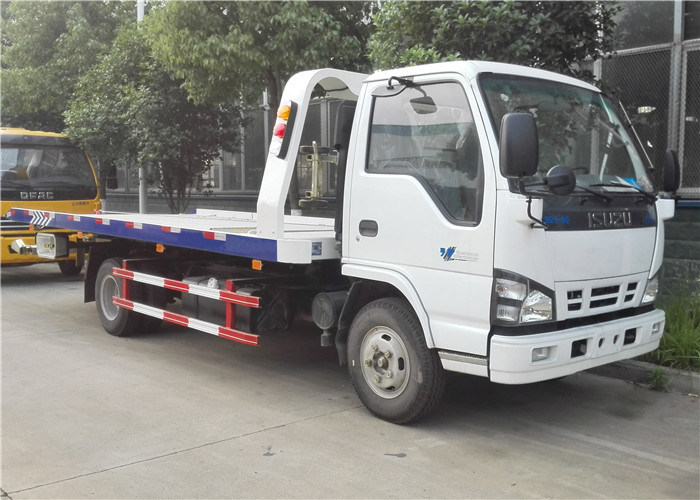

Large Image :  ISUZU 4x2 Small Tow Truck , 6 Wheels 3 Ton Flatbed Wrecker Truck For Two / Three Cars

Product Details:

Place of Origin: SUIZHOU, HUBEI
Brand Name: CHUSHENG
Certification: CCC, ISO9001
Model Number: CSCTOW

Payment & Shipping Terms:

Minimum Order Quantity: 1 units
Price: Could be negotiated
Packaging Details: Naked or Waxed before shipment
Delivery Time: 35-40 days after receiving the deposit
Payment Terms: L/C, Western Union, MoneyGram, D/P, T/T, D/A
Supply Ability: 1000 units per Month
Contact Now
Detailed Product Description
Chassis Brand: Dongfeng HOWO Isuzu FAW Foton Bei Ben Tow Truck Loading Capacity: 2 Ton, 3 Ton, 4 Tons, 5 Tons Flatbed Tow Truck
Product Name: Flatbed Tow Truck, Recovery Truck, Road Wrecker Operation Position: Both Sides Of Flatbed Tow Truck
Winch Capacity: 5000kg, 3000kg, 4000kgs Steel Rope Length: 20m, 20 Meters
Drive Model: 4X2 Flatbed Tow Truck, Recovery Truck Drive Type: Left Hand Drive, Or Right Hand Drive
Wheeler Number: 6 Wheels, Type: For Two Cars, Or For Three Cars

ISUZU 4x2 Small Flatbed Towing Truck Road Recovery vehicle 3ton Flatbed Tow Truck



Tow truck, whole name is road wrecker, also called as the wrecker truck, tow wrecker truck, tow truck wrecker, wrecker towing truck,etc.

Our tow truck consists of the chassis, hoisting equipment,truck tow hook, tow truck winch, tow truck wheel lift, hydraulic system, electric control system, truck body and the tool boxes.

The tow truck can hoist, lift, draw and be with other special functions, mainly used in highway and city road obstacle cleaning.

Our one tow two wrecker truck which called flatbed tow truck can also deal with 2 sets of accident vehicles, upper back down tow, and mainly used within 3 tons of cars.

Equipped with 3 ton to 5 ton lift equipment, bind belt, auxiliary wheel, J type of hook, winch, electronic lamp, 20M steel wire, megaphone,etc

As a professional tow truck manufacturer, the wrecker tow truck we produce is from 3 ton to 60 ton. The road wrecker truck we manufacture are flatbed tow truck, under lift wrecker truck, rotator tow truck, tow truck mounted crane,etc.



Description ISUZU 4X2 Flatbed Towing Truck LHD
Drive Model 4X2
Chassis QL1090
Vehicle Main Dimensions Dimensions(L x W x H)mm 8490X2350X2410
Wheel base (mm) 4475
Overhang (front/rear) (mm) 1110/2905
Wheel track (front/rear) (mm) 1680/1650
Approach/Departure angle(°) 21/9
Weight in KGS GVW. 9410
Curb Weight 5670
Max. driving speed(km/h) 95
Allowable passengers in cab 2
Engine Model 4KH1-TC
Type 4-stroke direct injection , 4cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 190
Emission standard Euro IV
Gearbox 5 forwards & 1 reverse
Fuel tank (L) 120L
Tire 8.25-16-14PR, 6 pieces+1 spare tire
Operation control system Electrically hydraulic control



Platform Organ Length(mm)×Width(mm) 6200*2400
Operating stroke(mm) 2680
Min. angle of slope(°) 8
Rated loading weight(kg) 5000
Rated winch traction weight(kg) 5000
Length of steel wire rope(m) 21
Ground clearance of cage floor(mm) 470
Hoisting Organ Max. length of extended boom(mm) 1680
Rated lifting weight(kg) 3635
Max. extended lifting weight(kg) 2500
Rated traction weight(kg) 10000
Elevation of boom (upper/ lower)(°) 9~-10



ISUZU 4x2 Small Tow Truck , 6 Wheels 3 Ton Flatbed Wrecker Truck For Two / Three CarsISUZU 4x2 Small Tow Truck , 6 Wheels 3 Ton Flatbed Wrecker Truck For Two / Three Cars



Emergence Vehicles,recovery vehicle/Truck-recovery-vehicle carrier



2-car Truck-recovery-vehicle carrier,Wrecker truck /Road rescue vehicles

the chassis brand can choose Foton,Dongfeng,JAC,JMC



4*2 driving ,LHD/RHD Driving



new Emergency vehicles,Wrecker truck /Dongfeng Road rescue vehicles trucks
