Product Details:
Payment & Shipping Terms:
|
| Product Name: | LPG Skid Tank | Tank Material: | SA516 |
|---|---|---|---|
| Applications: | LPG Cylinder Refilling LPG Storage Tank | Color: | Red White LPG Storage Tank Customer's Request |
| LPG Filling Medium: | Liquefied Petroleum Gas Propane | Tank Capacity: | 5m3 10m3 20m3 30m3 40m3 50m3 60m3 80m3 100m3 |
| Shipping: | Bulk Or Roro Ship | Level Gauge: | Magnetic Levle Gauge, Floating Ball Gauge, Rochester Gauge |
| High Light: | lpg tanker truck,lpg bullet tanks |
||

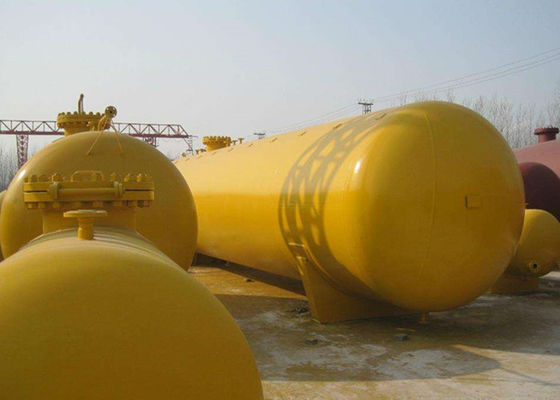

ASME Pressure Vessel LPG Storage Tank 40m3 LPG Tank 20Ton LPG Gas Tank
LPG Tank Technical Parameters:
| Parameter of 50cbm 25Tons LPG Storage Tank | ||||||
| ITEM | PARAMETER | ITEM | PARAMETER | |||
| Volume | 50M3 | Thickness of Shell | 14mm | |||
| Tank Material | Q345R | Thickness of End plate | 16mm | |||
| Overall Size | 9912*2628*3218mm | Tank Net Weight | 10910kg | |||
| Tank Diameter | 2600mm | Loading Capacity | 19950kg | |||
| Design Pressure | 1.77Mpa | Gas Density | 500~590kg/M3 | |||
| Hydraulic Test Pressure | 2.22Mpa | Corrosion Allowance | 1mm | |||
| Design Temperature | -20℃~50℃ | Heat Treatment | Bulk | |||
| Vapor Outlet | DN50 | Gas Outlet | DN50 | |||
| Designed Life time | 15 years | |||||
| Extra 1800 USD/SET for Accessories like follows (If you need) | ||||||
| Model | Item | Qty | Junction surface | |||
| J41N-2.5-50 | Stop Valve DN50 | 6 | RF | |||
| J41N-2.5-25 | Stop Valve DN25 | 2 | RF | |||
| J41N-2.5-80 | Stop Valve DN80 | 1 | RF | |||
| J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | ||||
| HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF | |||
| A42F-25-100 | Safety Valve DN80 | 1 | RF | |||
| Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | ||||
| WTQ-280 | Thermometer M33*2 2.5 degree | 1 | -40℃~60℃ | |||
LPG Tank Progress Flow:
