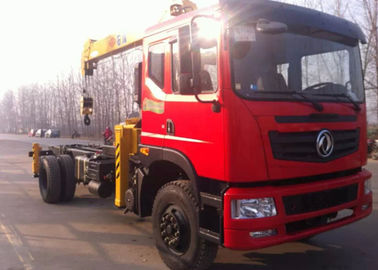

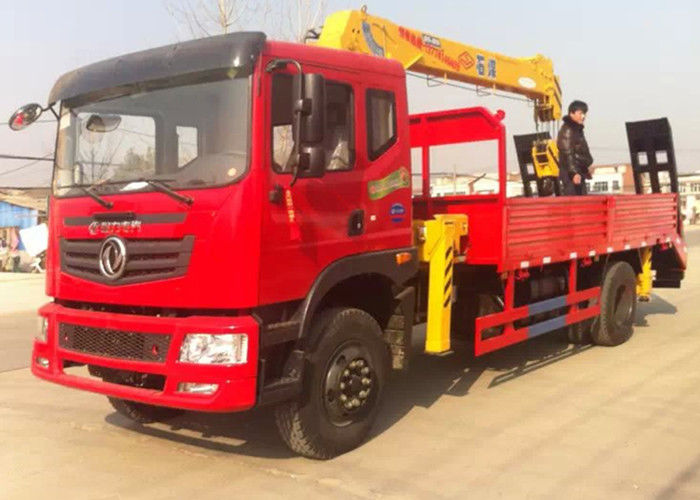

Dongfeng 4x2 Truck Mounted Crane / 5 Ton Mobile Crane High Performance

China Dongfeng 4x2 Truck Mounted Crane / 5 Ton Mobile Crane High Performance supplier
Dongfeng 4x2 Truck Mounted Crane / 5 Ton Mobile Crane High Performance supplier Dongfeng 4x2 Truck Mounted Crane / 5 Ton Mobile Crane High Performance supplier

Large Image :  Dongfeng 4x2 Truck Mounted Crane / 5 Ton Mobile Crane High Performance

Product Details:

Certification: CCC, ISO9001, TS16949
Model Number: chusheng

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negociatable
Packaging Details: Waxed before shipping by Ro-Ro, Bulk .
Delivery Time: 25-30 work days after receiving the deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 5000 Units /Month
Contact Now
Detailed Product Description
Item Name: Telescopic Hydraulic Crane Loading Capacity For Option: 5t, 8t, 10t, 12t, 15t, 20t, 25t, 30t
Driving Type: 6x4, Left Hand Drive/ Right Hand Drive Other Driveing Type Available: 4x2 ,6x4, 8x4
Chassis Brand: Dongfeng, HOWO, SHACMAN, JAC, JMC, FAW, FORLAND Etc Crane Type: Knuckle Crane, Scopic Crane
Lifting Weight: 5t, 10t, 15t, 20t, 25ton, 30t, 50t, 80t Etc. Type: Truck Mounted Crane Mobile Crane Truck
High Light:

telescopic boom crane

,

mobile crane truck

Dongfeng 4x2 5Ton Truck Mounted Crane 5T Truck Mounted With Telescopic Boom Crane

Product description:

Truck mounted crane is also called telescopic hydraulic crane, manual hydraulic crane, mobile hydraulic crane, universal hydraulic crane, construction hydraulic crane, pickup truck lift crane, mobile truck crane, knuckle boom truck mounted crane, articulated crane, hydraulic folding truck crane, telescopic boom truck mounted crane, crane lorry, crane truck, hydraulic truck crane, truck-mounted crane, truck with arm crane, dump truck with crane, crane tipper truck, off-road truck crane, rough terrain crane, truck 6x6 with crane, etc.

Features:

1. This truck is our mature model for overseas market.
2. It's our hot-sale truck model , More than 1500 units were exported .
3. The outstanding feature of this truck is : light weight, fast speed, heavy load and so on.
4. Famous brand Dongfeng 4x2 truck with 3.2T crane.
5. Most important parts are original world famous brand, It has after-sale service in most of country, so It will be very
easy and convinent for maintenance.


Brand: Dongfeng
Other brand available: Dongfeng, HOWO, FORLAND, SHACMAN, FAW etc.
Crane lifting weight :10tons
Other loading capacity for optional: 5t, 8t, 10t, 12t, 15t, 20t, 25t, 30t
Driving type: 4x2 left hand drive / right hand drive
Ohter type: 4x2, 6x4, 8x4 ,
Other crane lifting weight: 5t, 8t, 10t, 12t, 15t, 20t, 25t, 30t
Crane type: telescopic type, knuckle type

Truck Mounted Crane Technical Parameter:


Product nameDongfeng 5 ton truck with crane telescopic boom
Crane Max.lifting load4tonChassis modelDFA1090SJ11D5
Crane type3 section straight armBrand nameDongfeng
Lifting Height(m)10.6Overall dimension(mm)7995×2320×3250
Working radius(M)8Cargo box dimension(mm)5200,5100×2150×550
Gross weight(Kg)9400Wheelbase(mm)4400
Payload(Kg)4200Drive type4*2
Curb weight(Kg)5005Fuel typediesel
Axle No.2Emission standardEuro 2/Euro 3/Euro 4/Euro 5
Cab seats(person)3Transmission5-speed
Approach/departure angle(°)25/12Tires No.6
Axle load (Kg)3600/5800Tire specification8.25-16
Front/rear hang(mm)1180/2415Max speed(km/h)95
Front/Rear track(mm)1835/1640Steel spring number11/13+8
Engine parameters
Engine modelEngine manufacturerDisplacement (ml)power(kw)
CY4102-CE4CDongfeng chaoyang forward power co ., LTD385673
Chassis Description1.Dongfeng 4x2 chassis,single row with left/right hand drive optional.
2.4.4m wheelbase,125HP Chaochai Engine,5-speed transmission, front brige 2.5T/ rear brige 5T, 8.25-16 tire.
3.Steam brake and Power steering.
Standard Equipment

1. Equipped with 4ton 3 section straight arm crane,5.2m length crane dedicated box,column, frame,front legs and other hydraulic components.
Rotation angle: positive and negative 360° hydraulic rotate.up,down,left,right operation.
2. The hydraulic system is composed of oil tank, oil pump, oil cylinder, multi way reversing valve, hydraulic lock, balance valve, motor, rotary center joint,pipeline, a hoisting mechanism, slewing mechanism,lifting hook and etc..
3. Operation methods:①: ordinary operation. ②: double operation pedestal. ③: on the column operation. ④: square bit operation.

Optional Equipment

We can make the truck with crane according to customer's requests with the optional equipments below:
1. 4ton folding boom crane.
2. Rear landing leg:fixed,Hand pull type,hydraulic type.
3. High chair.
4. Water tanker.
5. Catch tool.
Please advise us in advance if you have any special requests for the truck with crane, we can equip various kinds optional equipment for you.

PurposesTruck with crane is mainly used for self loading and unloading hoisting business of logistics, railway, highway,construction site, telecom,mining, electric power company, water conservancy company, tap water company,landscaping, precast yard, wharf, shipbuilding and etc.
Product advantage

1. Quality stable,property outstandin,crane arm length, oil cylinder lifting capability strong,thick oil pipeline oil temperature low, humanized design( such as ladder), pedestal and quartet operation, overload and hosting ability strong, column and arm in the whole plate, fast operation speed,sale and after-sale service fast.
2. Best Quality with competitive price.


The overall introduction of our Truck With Crane Series:
Our company is a professional manufacturer of Special Automobiles in China. We can provide you all kinds of trucks wth crane with the best quality and best prices according to your requests.


1. Type: Crane, Truck with crane, Autocrane
2. Drive model: 4*2, 4*4, 6*4, 6*6;8*4.
3. Straight Arm/Fold Arm Crane:2T, 3.2T, 4T, 5T, 6.3T, 8T, 10T, 12T, 14T, 16T,20T,25T and etc.
Optional 2 section arm,3 section arm,4 section arm and multisection arm.
4. Length of cargo box: 2.6M~13M.
5. Equipped with different size of container and different tons of crane.
6. Optional Chassis Brand: Dongfeng, Fonton, ISUZU, JMC,JAC, Chang'an,Sinotruk,Steyr,Shacman,FAW, Iveco, Auman and North Benz etc.
7. Right/Left hand drive, with A/C, single row or flat-head with one sleeper or high roof with two sleepers.

8. Emission Standard: Euro II/EuroIII/EuroIV.


Dongfeng 4x2 Truck Mounted Crane / 5 Ton Mobile Crane High Performance
