|Item Name:||Vacuum Road Sweeper Truck||Capacity:||4000L|
|Engine:||Cummins , Yunnei, Chaochai, Weichai, Etc||Driving Type:||6x4, Left Hand Drive/ Right Hand Drive|
|Other Driveing Type Available:||4x2 ,6x4, 8x4||Chassis Brand:||Dongfeng|
|Other Brand Available:||Dongfeng, HOWO, SHACMAN, JAC, JMC, FAW, FORLAND Etc|
broom sweeper truck,
street cleaner truck
Dongfeng 4x2 4cbm 6 wheels road sweeper truck with brush
Description of vacuum road sweeper truck:
Humanized operation: One-button Control smart ECS and color digital screen in the Lab. can monitor the working status easily.
Advanced “Two middle sweep brush Plus Wide Suction Mouth plus built-in sweep roller” Working structure: the sweeping brush can clean the dust closer the road, Brush and spray beam have the collision avoidance and self-reset function, left/right sweeping brush can do sperate work or work together to sastify client’s demand according with different road status.
Start the dry clean on the sunny day and wet clean on the rainny day with sweeping and suction working mode.
Special three-stage dust removal system and pneumatic flow switcher ensure the sweeper can operate at any weather situation, at extreme cold conditions and during the rainy season with high cleaning efficiency.
Sweeping speed can be adjusted to low, medium or high based on different cleaning requirements to ensure that all dirtcan be effectively remove and lower operating costs.
Full floating roll-sweep suction disc: connect with the chassis at working free angle, can automatically be smoothly contact with the road ad maintain the gap for the air inlet. the suction disc include roll-sweep device and make strong cleaning power with fast speed.
High efficiency anti dust shelf: effectively solve the dust cloud form during the cleaning working about the dry sweeper truck.
Adjustable rear door rotation shaft device: rear door rotation shaft adopt adjustable structure design to assure the rear door good seals
Chassis engine and Vice engine dual power hydraulic system: don’t need to start the vice engine when discharge the garbage. when the vice engine is in the repair, you can lift fast the motion parts and garbage bin through the chassis engine power. improve the maintenance work speed and ease the serviceman’s working strength.
Other brand available: Dongfeng, HOWO, FORLAND, SHACMAN, FAW etc.
Driving type: 4x2 left hand drive / right hand drive
Ohter type: 4x2, 6x4, 8x4 ,
Other volume: 4000L, 5000L, 8000L, 10000L, 12000L
The Road Sweeper Truck is suitable for cleaning of urban roads, highways, plazas, airports, docks, mechanical cleaning, cleaning, spraying and dust suppression.
parameters of Dongfeng 4X2 road sweeper truck
|Production name||Dongfeng vacuum truck mounted road sweeper|
|vehicle model||Chusheng 01|
|Engine||Engine model: CY4102-CE4F|
|Engine manufacturer: Dongfeng Chaoyang Diesel Engine Co., Ltd.|
|Exhaust: 3856 ml|
|Power: 73 kw|
|Tire||Tire specification: 7.00-16|
|Number of tire: 6|
|Axle||Number of axles: 2|
|Tank fact cubage(cbm)||4m3 dustbin,1.5m3 clean water tank|
|F / R track base(mm)||1506/1466|
|Product cycle||10-15 days|
|Warranty||12months, from the date of supply|

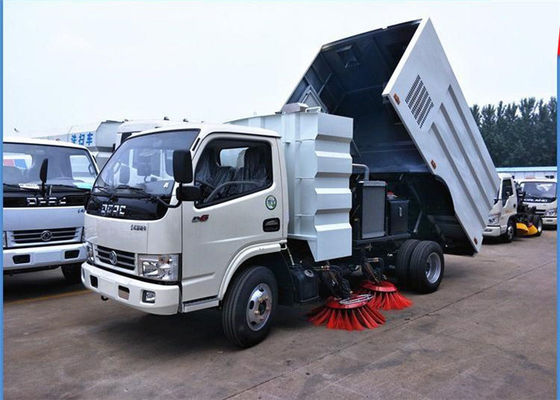

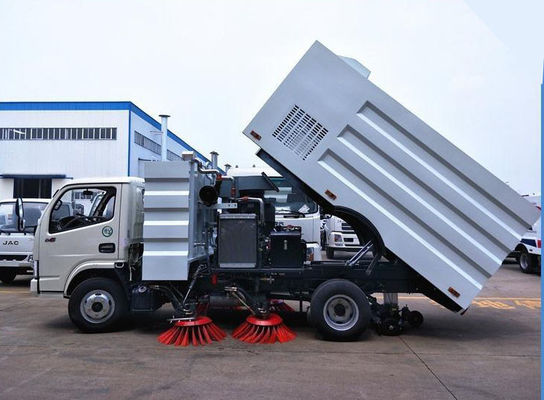

photos of Dongfeng 4X2 road sweeper truck:
1. Factory direct supply: reliable quality and fast delivery.
2. Warranty:From the date of receiving, in normal use within 30000km or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs.
3. Tracking service: lifelong.
4. Chassis question: When the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station.
5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.
6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.
7.After-sale ServiceOne year warranty Any small question will be solved at the most prompt time. We also offer relative technical support. Our spare parts will be available at any time after your order.
We manufacture the truck as soon as your order comes. And for the stock, we can delivery it immediately.
For more details, please just feel free to contact me.
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok .But we need take apart the truck. You should reinstall in your country.
Q: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q: I want to be your agent in my country , is that ok?
A: its ok, if your quantity is big, we will consider. For the first time 50 units is ok.
Q: I want the front two tires are bias tire and the rear 9 tires are radial tires, is it ok?
A: We can make the tires as your requirement to suit your country's need.
